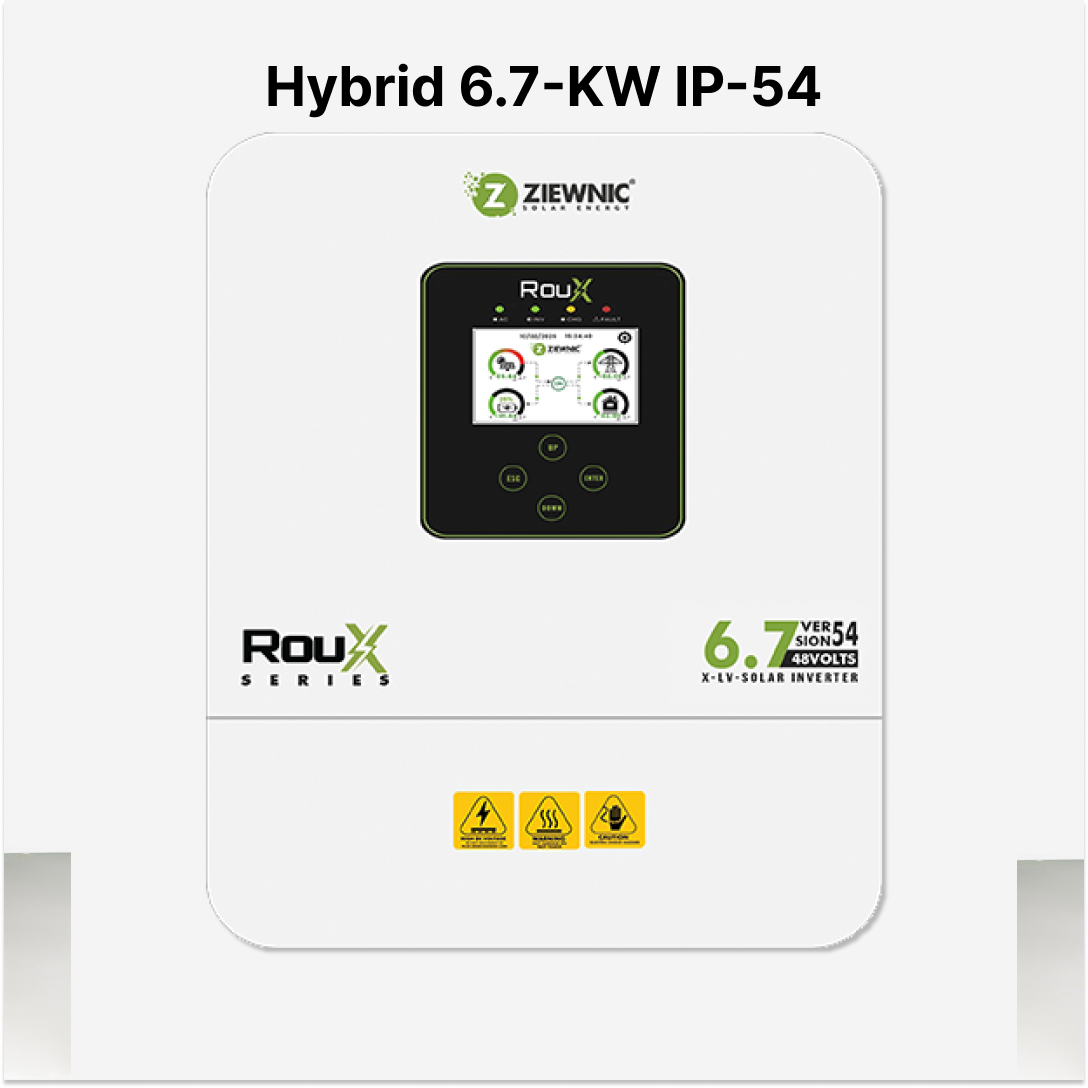

ROUX 6.7KW (PV9000) – IP54 Hybrid Inverter

General

• Rated Power (AC): 7000W

• Rated Power (PV Mode): 6700W

• Rated Power (DC Mode): 6500W

• Power Factor: 1.0

• Dual MPPT

• IP54 Aluminium Body

• Built-in Wi-Fi

• 98% Real-time Sharing

AC INPUT

• 220/230/240VAC

• 90–280VAC (Normal)

• 170–280VAC (UPS)

• 50/60Hz Auto

AC OUTPUT

• 220/230/240VAC ±5%

• 50/60Hz ±0.1%

• Pure Sine Wave

• Transfer Time: 10ms / 20ms

• Peak Power: 12,400VA

• Overload:

  • 110–150% → 10.5 sec

  • 150–200% → 5.5 sec

  • 200% → 200ms

• Efficiency: >94%

BATTERY

• Rated Voltage: 48VDC

• Constant Charge Voltage: 56.4VDC

• Float Voltage: 54VDC

• Max PV Charging Current: 120A

• Max AC Charging Current: 100A

• Max Total Charging Current: 120A

• Lithium / GEL / VRLA Supported

• RS485 / CAN Communication

SOLAR (PV)

• Max PV Power: 9000W

• MPPT Range: 60–500VDC

• Best Vmp: 360–430VDC

• Max PV Voltage: 500VDC

• Max PV Current: 36A

• Dual MPPT

• 150A Solar Charge Platform

DIMENSIONS

• 529 × 411.5 × 111.5 mm
