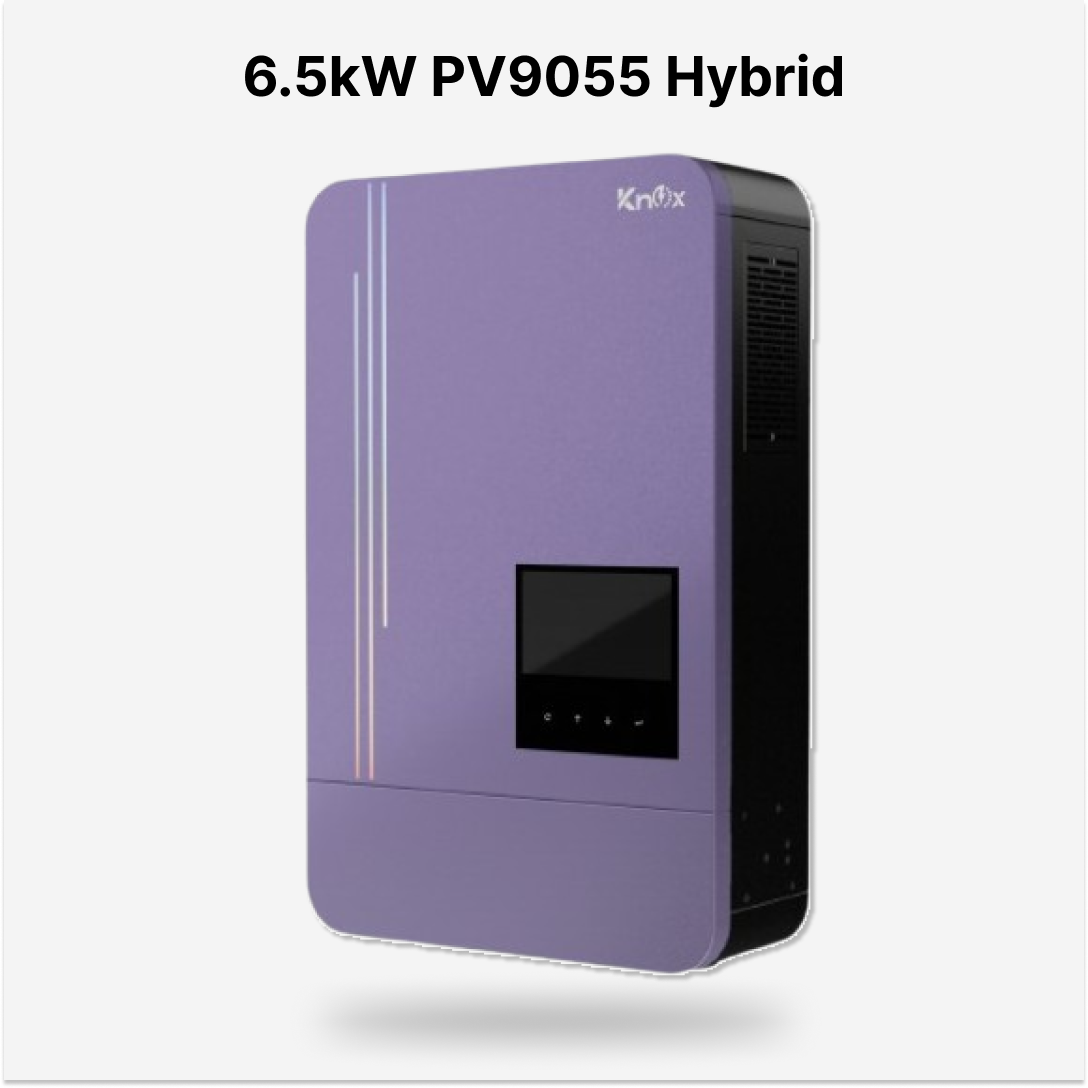

KNOX Krypton 9055 | 6.5kW Hybrid On-Grid Inverter with Energy Storage (Model: 6.5kW-48-PV9055-TWIN)
Smart, Powerful & Future-Ready Solar Inverter
Take charge of your energy with the KNOX Krypton 9055, a high-performance 6.5kW hybrid inverter designed for seamless integration with solar, grid, and energy storage systems. Equipped with dual MPPTs, smart load management, battery-less operation, and real-time mobile monitoring, this inverter is built to power homes, businesses, and industrial applications efficiently.
Key Features:
Hybrid On-Grid with Energy Storage
Supports battery + solar input up to 8000W. Works with or without batteries for complete flexibility.
Dual MPPT Controllers (2x22A)
Track two PV arrays independently for optimal solar harvesting.
Built-in WiFi + Mobile Monitoring
Control and monitor from your phone (iOS/Android). Stay connected with your energy.
Smart Load Management
Dual output ports allow you to prioritize essential vs. non-essential loads intelligently.
Batteryless Operation
Functions without batteries – ideal for solar-only setups with grid support.
RGB Light Status Indicator
Modern design with colorful status lights for real-time inverter health at a glance.
Large Touchable HMI Display
Easy-to-use, vivid LCD touch screen with USB OTG support for firmware upgrades.
Parallel Ready
Scalable up to 9 units in parallel for higher load demands.
CT Function (Optional)
For accurate self-consumption and energy optimization.
Replaceable Fan + Anti-Dust Kit
Designed for long-term performance with minimal maintenance.
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | 6.5kW-48-PV9055-TWIN |
| Phase | Single Phase |
| Rated Output Power | 6500W |
| PV + Battery Output | 8000W |
| Max PV Input Power | 4500W x 2 |
| Max PV Input Current | 2x22A |
| PV Voltage Range | 120–430VDC |
| Nominal DC Voltage | 48VDC |
| Max Solar Charging Current | 150A |
| AC Charging Current | 120A |
| Surge Power | 13000VA |
| Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 10ms (PCs), 20ms (Home Appliances) |
| Efficiency | DC-AC: 93% / MPPT: 95% |
| Communication Ports | USB, RS232, RS485, WiFi, Dry-contact |
| Dimensions (D x W x H) | 140 x 295 x 468 mm |
| Net Weight | 13.5 kg |
| Operating Temp. | -10°C to 50°C |
| Humidity | 0 ~ 90% RH (non-condensing) |
| Certifications | IEC 62109-1/-2, IEC 61683, LVD 2014/35/EU |
