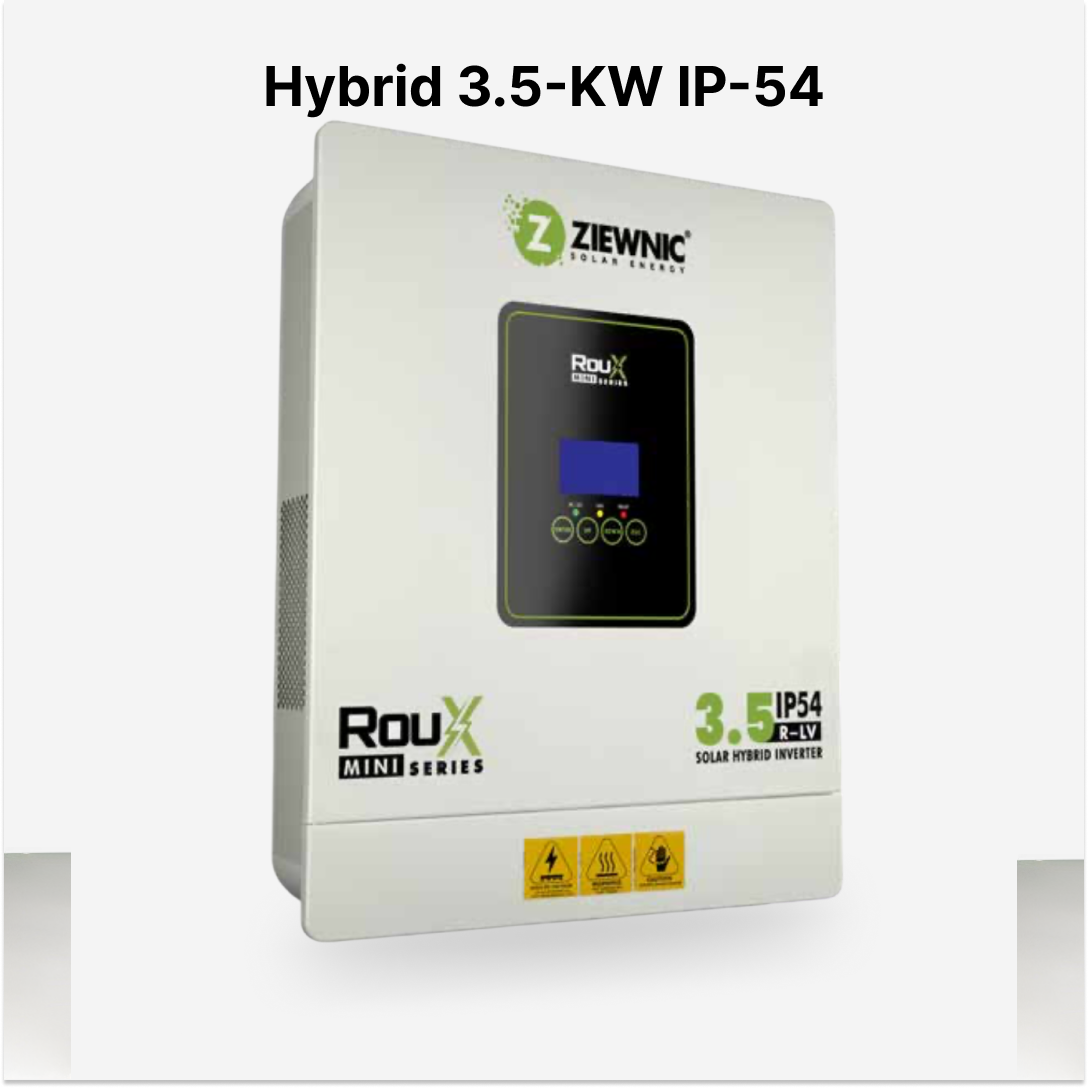

ROUX Mini – PV5000 (3.5KW)

Real 6th Generation | IP54 Protection | True MPPT | 80A Charger

General Overview

• Model: ROUX Mini – PV5000

• Rated Power: 3500VA (3.5KW)

• Inverter Type: Real 6th Generation – High Frequency

• Technology: High-Efficiency MOSFET with Enhanced Chopper Design

• Output Waveform: 100% Pure Sine Wave

• Power Factor: 1.0

• IP Rating: IP54 (Dust & Water Splash Resistant)

• Engineered in: Taiwan

• Built-in Automatic Electronic Breaker

• Upgraded Modern LCD Display

• Optional Wi-Fi Monitoring

• Compatible with:

  • Utility (WAPDA)

  • Generator

  • Battery Mode

• Fully Compatible with Lithium Batteries

• Smart & Safe Protection System

AC INPUT SPECIFICATIONS

• Nominal AC Input Voltage: 230 VAC

• Voltage Range (PC Mode): 170 – 280 VAC

• Selectable Voltage Range (Home Appliances): 90 – 280 VAC

• Frequency Range: 50Hz / 60Hz (Auto Sensing)

AC OUTPUT SPECIFICATIONS

• Output Voltage Regulation: 230 VAC ±5%

• Nominal Output Current: 14.54A

• Efficiency (Peak PV → Inverter): 97%

• Efficiency (Peak Battery → Inverter): 94%

• Transfer Time:

  • 10ms Typical (Computers)

  • 20ms Typical (Home Appliances)

• Output Waveform: Pure Sine Wave

• Overload Protection: Yes

• Short Circuit Protection: Yes

BATTERY & AC CHARGER SPECIFICATIONS

• Battery Voltage: 24 VDC

• Floating Charge Voltage: 27 VDC

• Overcharge Protection Voltage: 33 VDC

• Maximum AC Charging Current: 80A

• Supports Lithium Battery

• Works With Battery & Without Battery

SOLAR CHARGER (MPPT) SPECIFICATIONS

• Solar Charger Type: True MPPT

• Maximum PV Array Power: 5000W

• MPPT Operating Voltage Range: 55 – 430 VDC

• Maximum PV Open Circuit Voltage: 430 VDC

• Maximum PV Input Current: 18A

• Maximum Charging Current (Solar): 80A

• Maximum Efficiency (MPPT): 98%

• Wide PV Input Voltage Support

• Smart Solar Energy Management

PROTECTION FEATURES

• IP54 Dust & Water Resistance

• Short Circuit Protection

• Overload Protection

• Overcharge Protection

• Built-in Electronic Breaker

• Lithium Battery Supported

• Smart Multi-Mode Operation

COMMUNICATION & MONITORING

• Communication Ports:

  • RS232

  • GPRS

  • Wi-Fi (Optional)

• Remote Monitoring via Wi-Fi

• Real-time Monitoring & Configuration

• Monitor running status from anywhere

• Updated LCD Display

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature: 0°C – 55°C

• Storage Temperature: -15°C – 60°C

• Humidity: 5% – 95% (Non-Condensing)

PERFORMANCE HIGHLIGHTS

• 6th Generation Advanced Design

• 98% Maximum Efficiency

• 80A Charge Controller

• 18A Max PV Input Current

• IP54 Protection

• Pure Sine Wave Output

• Power Factor 1.0

• Smart & Safe Operation

• Multiple Operation Modes

• Works With Battery & Utility
