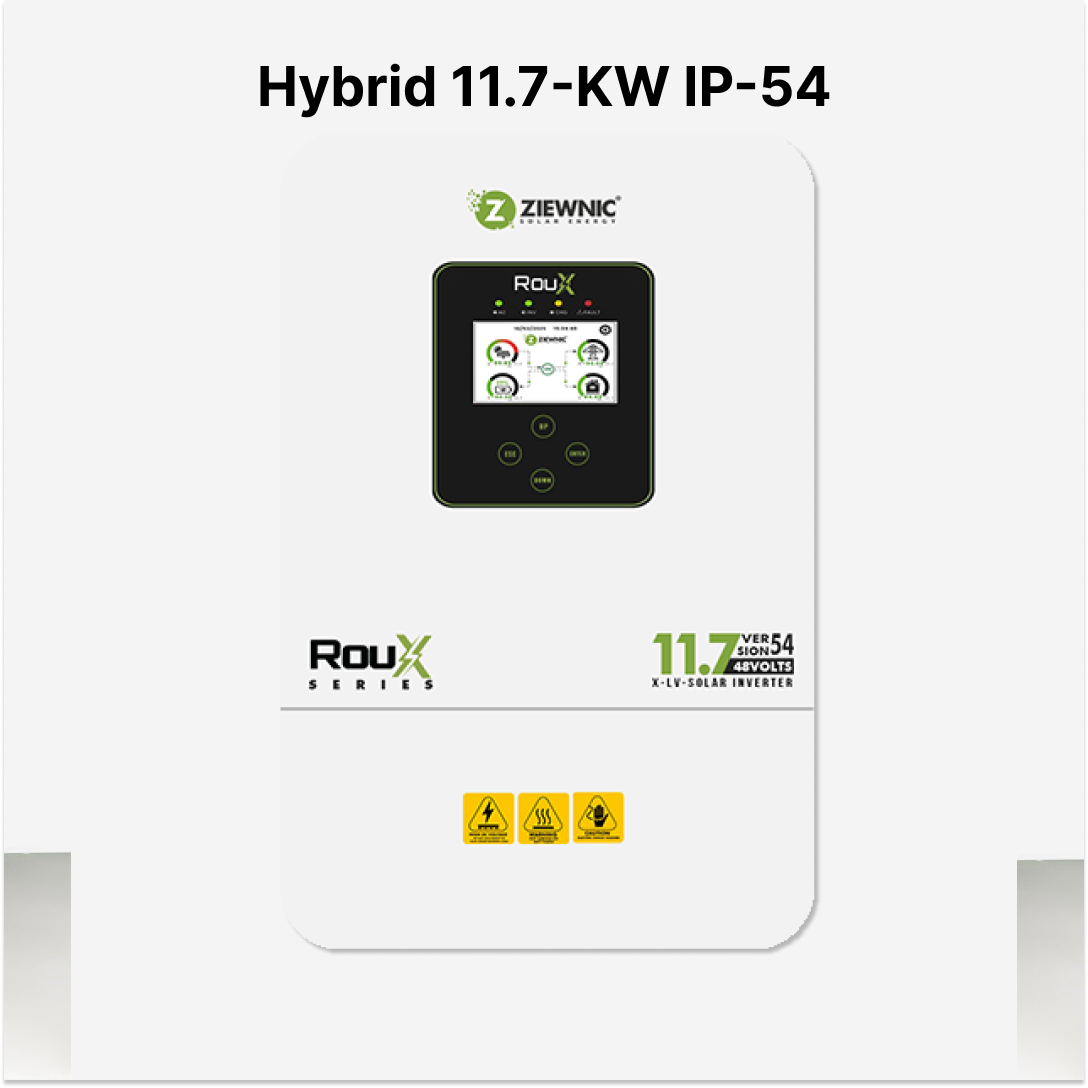

ROUX 11.7KW (PV15000) – IP54 Hybrid Inverter

General

• Rated Power (AC): 12000W

• Rated Power (PV Mode): 11700W

• Rated Power (DC Mode): 11000W

• Power Factor: 1.0

• IP54 Aluminium Body

• Dual MPPT

• 98% Sharing

• Built-in Wi-Fi Monitoring

• Reverse Grid Feeding

AC INPUT

• 220/230/240VAC

• 90–280VAC (Normal)

• 170–280VAC (UPS)

• 50/60Hz Auto

AC OUTPUT

• 220/230/240VAC ±5%

• 50/60Hz ±0.1%

• Pure Sine Wave

• Transfer Time: 10ms / 20ms

• Peak Power: 22,200VA

• Overload:

  • 110–150% → 10.5 sec

  • 150–200% → 5.5 sec

  • 200% → 200ms

• Efficiency: >94%

BATTERY

• Rated Voltage: 48VDC

• Constant Charging Voltage: 56.4VDC

• Float Charging Voltage: 54VDC

• Max PV Charging Current: 150A

• Max AC Charging Current: 150A

• Max Total Charging Current: 150A

• Lithium / GEL / VRLA Supported

• Lithium Activation & Wake-up

• RS485 / CAN

SOLAR (PV)

• Max PV Input Power: 15,000W

• MPPT Range: 90–500VDC

• Best Vmp Range: 360–430VDC

• Max PV Voltage: 500VDC

• Max PV Current: 32A + 32A

• Dual MPPT

• 150A Solar Charging System

DIMENSIONS

• 662.5 × 432.6 × 131.5 mm
