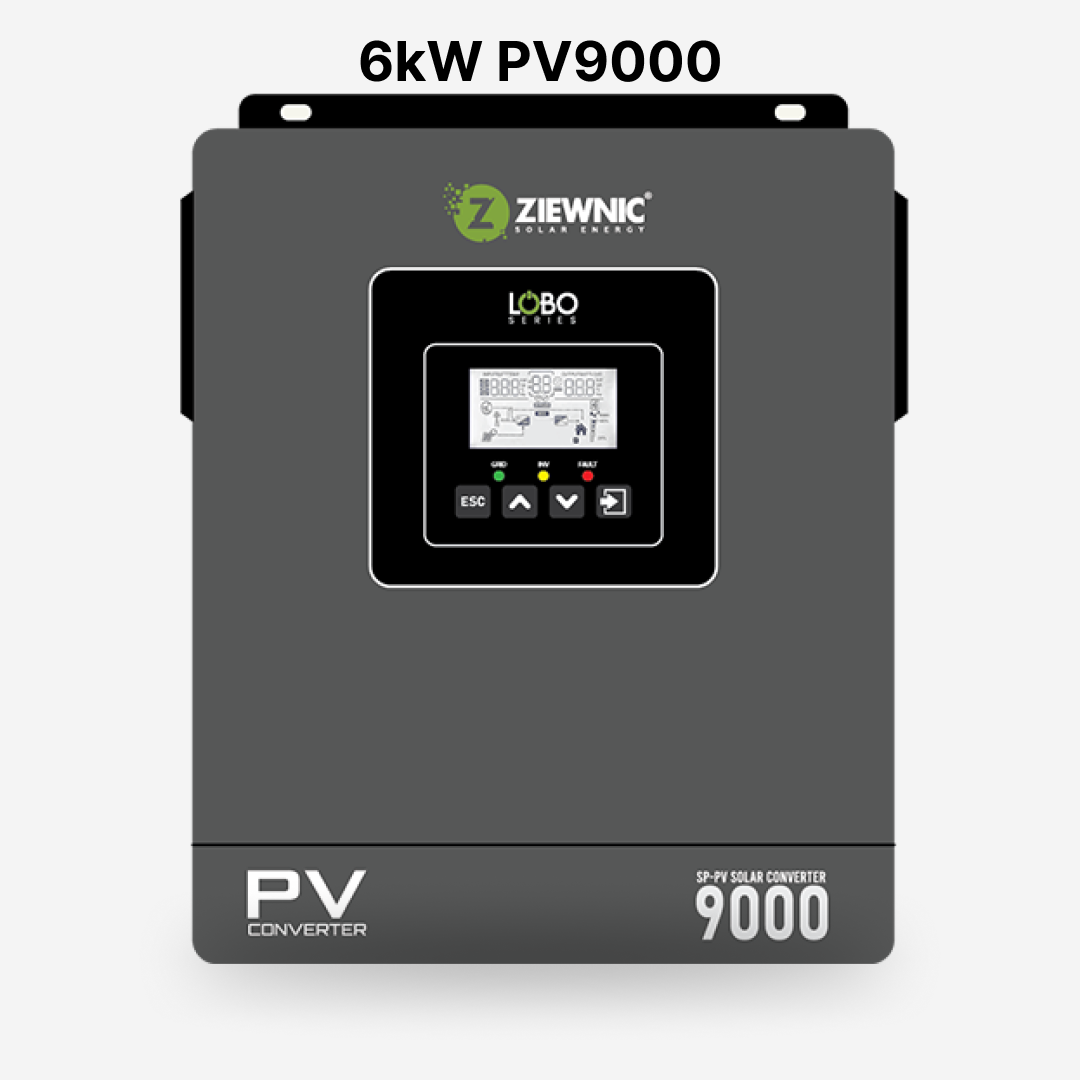

LOBO SP – PV9000:

Detailed Technical Specifications

General Overview

• Model: LOBO SP – PV9000
• Phase: Single Phase
• Rated Output Power: 6000 Watts (6kW)
• Application: Grid-tied solar systems (no battery required)

Key Functional Features

• Battery-less operation (works without a battery)
• Grid feeding capability (exports excess energy to the grid)
• Dual MPPT design for better solar optimization
• Pure sine wave output
• Fast islanding protection for safety
• Built-in dust-proof design
• User-friendly LCD display with parameter settings

PV (Solar Input)

• Max PV Input Voltage (Voc): 500 VDC
• MPPT Voltage Range: 60 – 500 VDC
• Start-up Voltage: 120 VDC
• Nominal DC Voltage: 360 VDC
• Max PV Input Current: 18A + 18A
• Number of MPPT Trackers: 2
• MPPT Efficiency: >99.5%

AC Input / Output (Grid Side)

• Nominal Voltage: 230 VAC
• Input Voltage Range: 90 – 280 VAC
• Frequency Range: 40 – 65 Hz
• Max Input Current: 30 A
• Power Factor: >0.99 (≈1.0)
• THDi: <5%

Performance

• Output Type: Pure Sine Wave
• Power Sharing: Supports grid + solar hybrid feeding
• High PV Capacity Handling

Protection Features

• Overload protection
• Short circuit protection
• Over-temperature protection
• Over-current protection
• Anti-islanding protection
• Built-in dust protection system

Environmental Conditions

• Operating Temperature: -10°C to +55°C
• Humidity: <95% (non-condensing)

Physical Specifications

• Dimensions (H × W × D): 335.5 × 245 × 103 mm
• Weight: 4.5 kg
