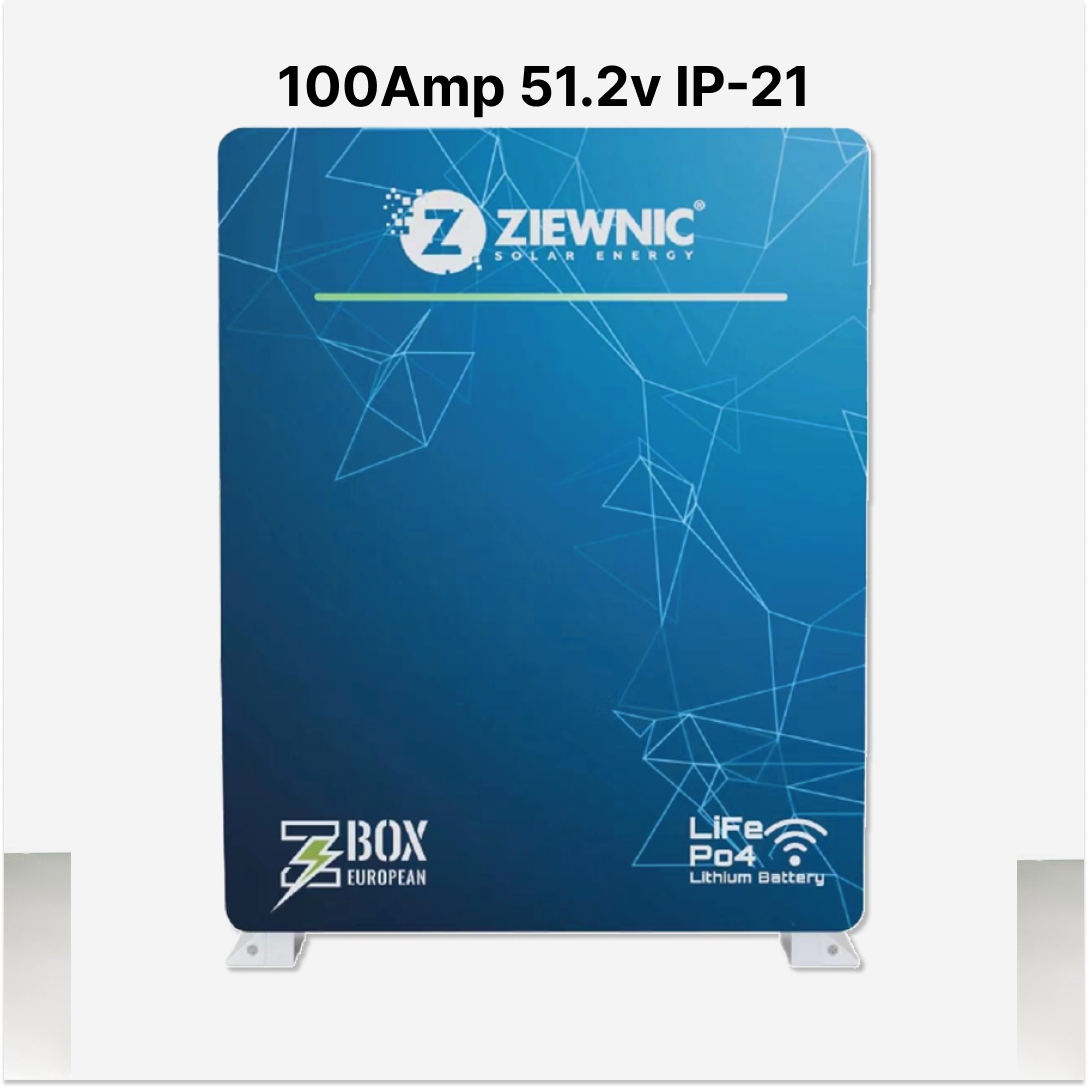

Z-BOX 100Ah – 51.2V (European Series)

General Information

• Model: Z-BOX 100Ah – 51.2V

• Design: European Standard – Wall Mounted / Floor Standing

• Battery Type: LiFePO4

• Cycle Life: >8000 Cycles @ 80% DOD

• Warranty: 10 Years


• IP Rating: IP21

• Max Parallel Support: Up to 16 Units

• Built-in 100A Smart BMS

• Built-in Wi-Fi & Bluetooth

• RGB LED Capacity Indicator

• App Monitoring: GenixGreen / Ziewnic (iOS & Android)

Electrical Specifications

Nominal Specifications

• Nominal Voltage: 51.2V

• Nominal Capacity: 100Ah

• Nominal Energy: 5120Wh

• Standard Charge Voltage / Power: 56.0V / 5600W

Voltage Range

• Operating Voltage Range: 44.8V – 58.4V

• Battery Full Voltage: 58.4V

• Cut-off Voltage: 44.8V

Charging & Discharging

• Max Continuous Charge Current: 100A

• Max Continuous Discharge Current: 100A

• Continuous Rate: 1C / 1C

• Charging Temperature Range: 0°C to 65°C

• Discharging Temperature Range: -20°C to 65°C

Protection (Smart BMS)

• Over Charge Protection

• Over Discharge Protection

• Over Current Protection

• Short Circuit Protection

• Over Temperature Protection

Communication

• Built-in Wi-Fi Module

• Bluetooth

• Optional:

  • RS485

  • RS232

  • CAN

Storage

• Storage Temperature: 0°C – 30°C

• Storage Duration: 3 Months at 25°C

Physical Specifications

• Dimensions (L × W × H): 480 × 600 × 150 mm

• Gross Weight: 48 KG

• Installation: Wall Mounted / Floor Standing

• RGB Status Indicator

 Common Key Salient Features

• First Time in Pakistan – European Standard Battery

• 8000 Life Cycles

• LiFePO4 Superior Safety Performance

• Brand Cells – Strong & Reliable

• 100A Smart BMS

• 1C / 1C Continuous Charge & Discharge

• Supports 16 Units in Parallel

• Wi-Fi Remote Monitoring via App

• Cloud Control Platform

• Suitable for Solar & Hybrid Inverters
