SUNGROW 20KW solar inverter ongrid

Download Product Datasheet

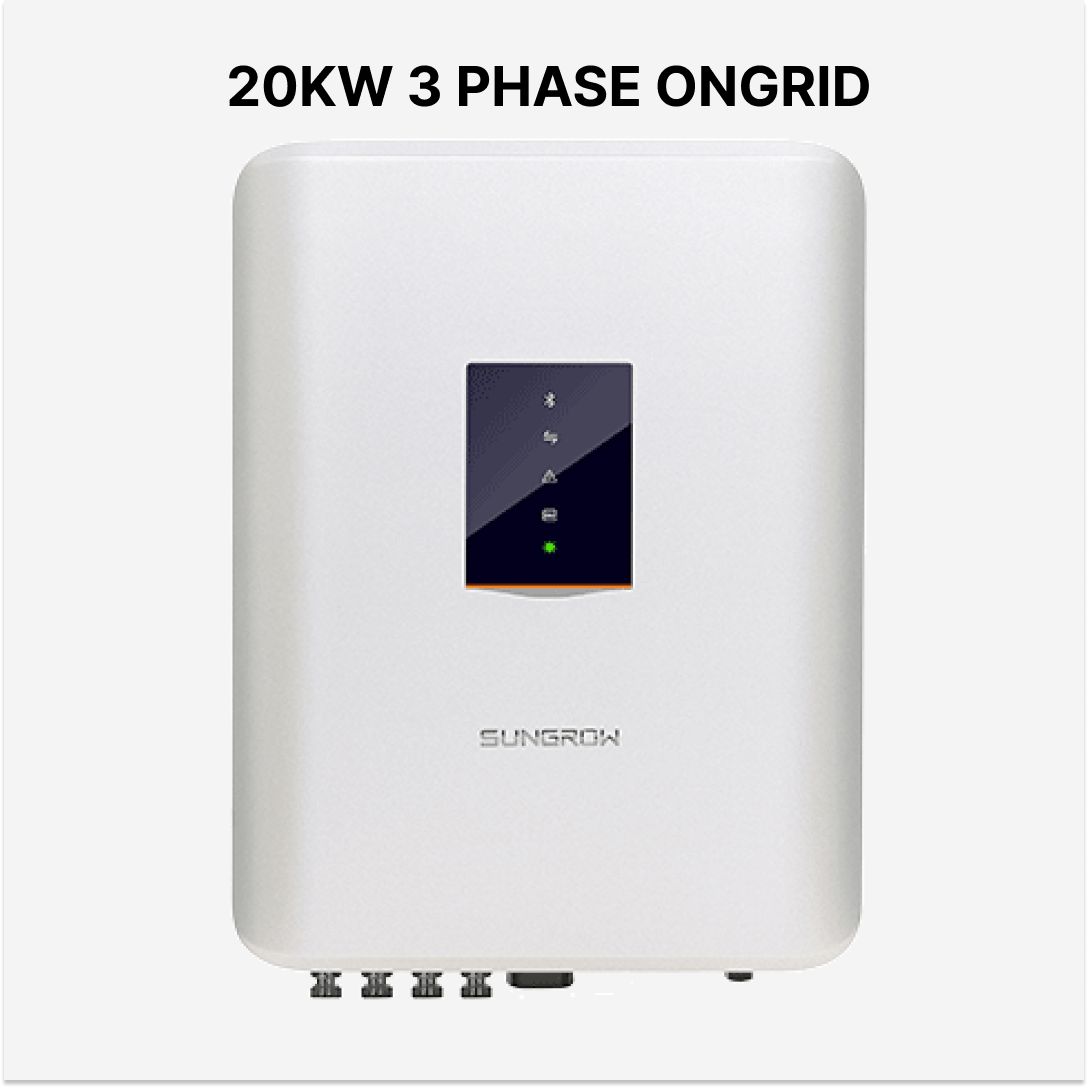

The Sungrow 20kW On-Grid Solar Inverter (SG20KTL-M) is a top-tier inverter designed for households and businesses utilizing three-phase electricity. Here's an overview of its features and specifications:

Key Features

1. High Efficiency:

   • Maximum efficiency of 98.7% ensures optimal power conversion.
   • Supports DC/AC ratios of up to 1.3, providing flexibility in panel string configurations.

2. Smart Monitoring:

   • Integrated App/Web monitoring for real-time performance tracking.
   • Wireless software updates for seamless functionality.
   • Enhanced energy flow visibility with the Sungrow Smartwatch.

3. Safety & Durability:

   • Built-in surge arrester and redundant current protection for enhanced system safety.
   • High corrosion resistance (C5 level) suitable for diverse environments.

4. User-Friendly Design:

   • Compact and lightweight, weighing just 20–24 kg.
   • Push-in connectors for quick and efficient installation.
   • Multi-level integrated stand for secure setup.
   • Intuitive operation through the Sungrow app.

5. Warranty:

   • Backed by a 5-year warranty, ensuring reliability and peace of mind.

Technical Specifications

• Capacity: 20 kW
• Maximum Efficiency: 98.7%
• Protection Level: IP65 (dust-tight and water-resistant)
• Communication Standards: RS485, optional WiFi/Ethernet
• Display: LED with Bluetooth + App
• Operating Temperature: -25°C to 60°C
• Weight: 20–24 kg
• Dimensions: Compact and ergonomic for easy installation.

Applications

• Ideal for residential homes, businesses, and small commercial projects.
• Suitable for households with three-phase electricity.
• Compatible with multiple solar panel configurations.
