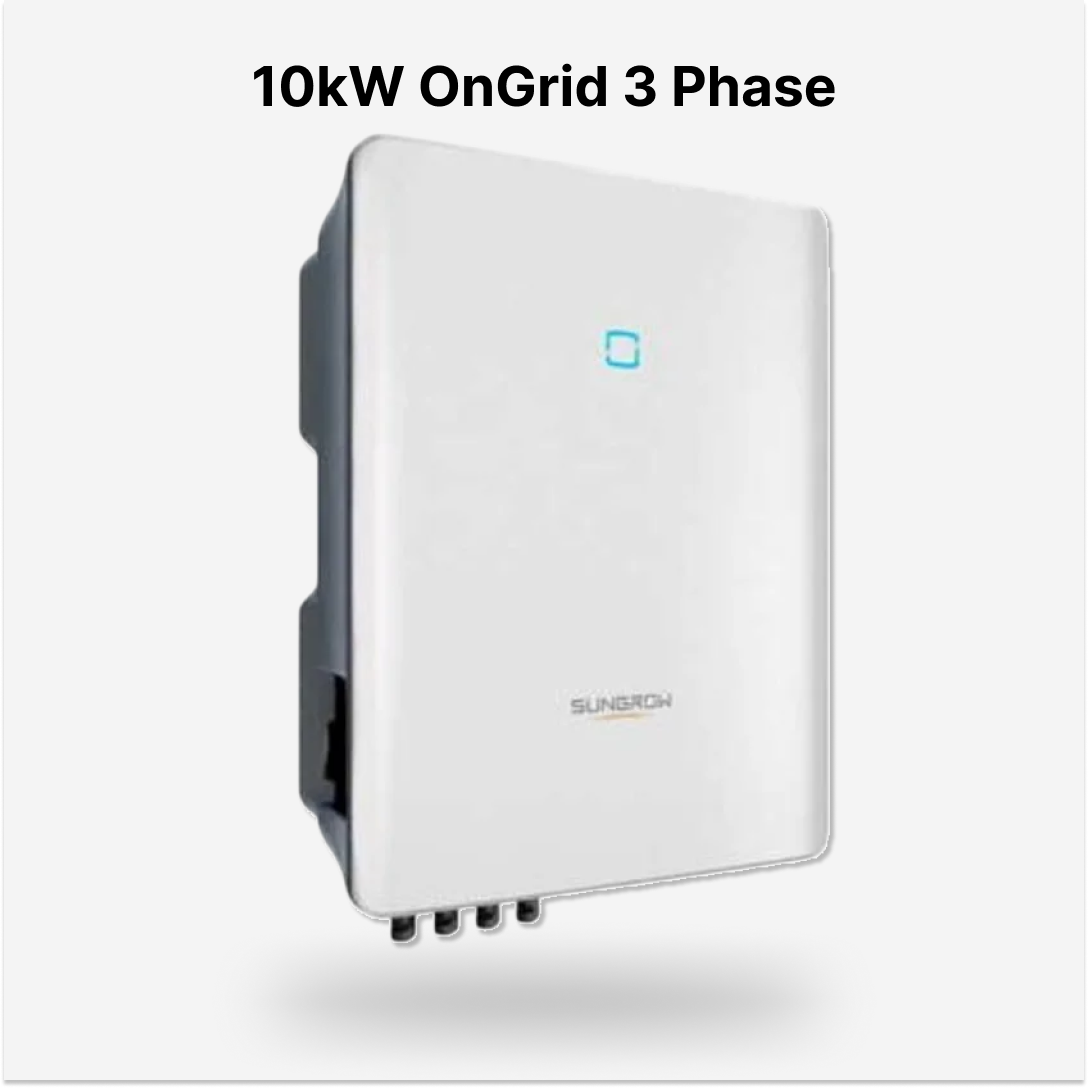

The SG10RT from Sungrow is a high-performance, three-phase multi-MPPT inverter designed for residential and small commercial PV systems. Engineered with smart monitoring, high conversion efficiency, and robust safety features, it offers dependable solar energy conversion for 1000Vdc string setups.
Supports up to 15 kWp PV input power
Dual MPPT trackers for optimized energy harvest
Compatible with bifacial modules
Wide MPPT voltage range: 160V – 1000V
Built-in PID recovery to maintain module performance
Smart IV Curve Scanning and 24/7 live monitoring
Remote firmware updates via WLAN or Ethernet
Type II AC & DC surge protection (SPD)
Integrated Arc Fault Circuit Interrupter (AFCI)
Tool-free, push-in connectors for fast commissioning
IP65 dust and water protection
High corrosion resistance (C5)
Operates in harsh temperatures: -25°C to 60°C
| Category | Details |
|---|---|
| Model | SG10RT |
| Recommended PV Power | 15 kWp |
| Max. PV Voltage | 1100 V |
| Rated PV Voltage | 600 V |
| MPPT Range | 160 – 1000 V |
| No. of MPPTs | 2 |
| Max. PV Input Current | 37.5 A (25 A / 12.5 A) |
| Max. DC Short Circuit Current | 54 A |
| AC Nominal Output Power | 9999 W |
| Max. AC Apparent Power | 9999 VA |
| Max. AC Current | 15.2 A |
| AC Voltage Range | 311 – 478 V |
| Grid Frequency | 50 / 60 Hz |
| Efficiency | 98.5% (Max), 97.9% (Euro) |
DC reverse polarity protection
AC short-circuit and leakage protection
Integrated Type II SPD (DC & AC)
Arc fault detection (AFCI)
Ground fault monitoring
PV string current monitoring
Built-in DC switch and protective cover
| Parameter | Details |
|---|---|
| Dimensions (W×H×D) | 370 × 480 × 195 mm |
| Weight | 18 kg |
| Mounting | Wall-mounted |
| Cooling | Natural convection (fanless) |
| IP Rating | IP65 |
| Corrosion Level | C5 |
| Operating Temp. | -25°C to 60°C |
| Max. Altitude | 4000 m |
| Humidity | 0% – 100% RH (non-condensing) |
Display: LED indicators
Interfaces: WLAN / Ethernet / RS485 / DI / DO
DC Connection: MC4 (max. 6 mm²; use Evo2 if >1000V)
AC Connection: Plug & play terminal block
IEC 62109-1 / 2
AS/NZS 4777.2:2020
