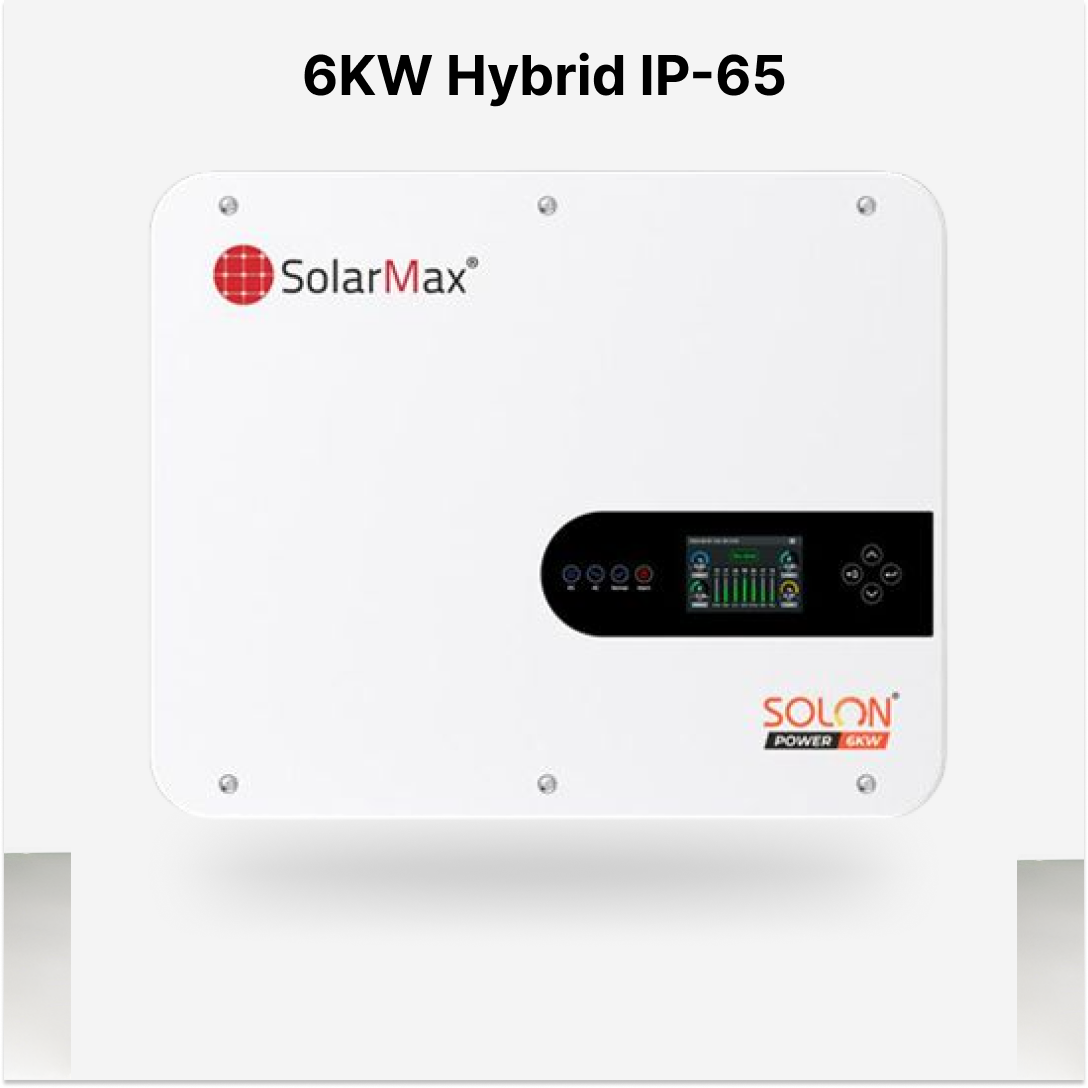

SolarMax 6KW IP-65 Hybrid Solar Inverter

SolarMax 6KW IP-65 Hybrid Solar Inverter

Download Product Datasheet SM-SOLON-UL-6KW Solar Inverter Reliable, Efficient, and Safe Energy Solution Powering your world with clean, renewable...
Vendor: SolarMax
Availability: Out Of Stock
Product type: Solar Inverter
Rs.190,000.00
Rs.190,000.00
Please hurry! Only 0 left in stock
Subtotal: Rs.190,000.00
Order on WhatsApp
10 customers are viewing this product

Shipping

You have to pay Partial Payment for order confirmation

Estimated Shipping Time: 24 to 72 Hours

100% Original & Official Product

SolarMax 6KW IP-65 Hybrid Solar Inverter

SolarMax 6KW IP-65 Hybrid Solar Inverter

Rs.190,000.00
SolarMax 6KW IP-65 Hybrid Solar Inverter

SolarMax 6KW IP-65 Hybrid Solar Inverter

Rs.190,000.00
Description

Download Product Datasheet


SM-SOLON-UL-6KW Solar Inverter

Reliable, Efficient, and Safe Energy Solution

Powering your world with clean, renewable energy, the SM-SOLON-UL-6KW inverter provides high-efficiency conversion with cutting-edge protection features, designed for both on-grid and off-grid applications.

Key Features:

  • IP65 Protection Rating – Weatherproof and durable for outdoor use

  • Efficient Power Conversion – Up to 97.6% maximum efficiency

  • Smart Load Support

  • Smart Cooling System – Quiet operation (<35 dB)

  • Easy Installation – Wall-mounted design for convenient setup

  • Advanced Protection Features – Anti-islanding, over-voltage, reverse polarity, overload, and more

  • Communication Ports – CAN/RS485, optional 4G, Wifi dongle included

  • High Surge Protection – DC Type II, AC Type II surge protection

Technical Specifications:

Model SM-SOLON-UL-6KW
Max PV Input Power 9200 Wp
Rated Output Power 6000 W
Max Input Voltage 500 V
Start-up Voltage 125 V
Rated Voltage 48 VDC
Battery Voltage Range 40-60 VDC
MPPT Input Voltage Range 125-500 V
Max Charge/Discharge Current 135 A
No. of MPPT 2
Efficiency Max Efficiency: 97.6%, MPPT Efficiency: 99.9%, Euro Efficiency: 96.5%
Surge Protection DC Type II, AC Type II
Cooling Smart Cooling
Weight 20.5 kg
Protection Rating IP65
Rated Output Voltage 220 / 230 / 240 V
Output Voltage Range 200-240 V
Total Harmonic Distortion <3% (Rated Power)

Grid Connection Standards:

  • IEC 62116

  • IEC 61727

  • NRS 097-2-1

  • EN 50549

  • EN 50438

  • AS 4777.2

  • VDE 4105

  • UNE 206006/206007

Display and Communication:

  • Display: LCD + LED + APP

  • Communication: RS485, Optional 4G, Wifi (Dongle Included)

  • Power Factor: Rated > 0.99, Adjustable: 0.8 Leading... 0.8 Lagging

Safety Features:

  • Anti-Flow Protection

  • DC Reverse Protection

  • DC Circuit Breaker

  • Insulation Resistance Detection

  • GFC Leakage Current Monitoring

  • Residual Current Monitoring

  • Reverse Polarity Protection

  • Off-grid Overload Protection
