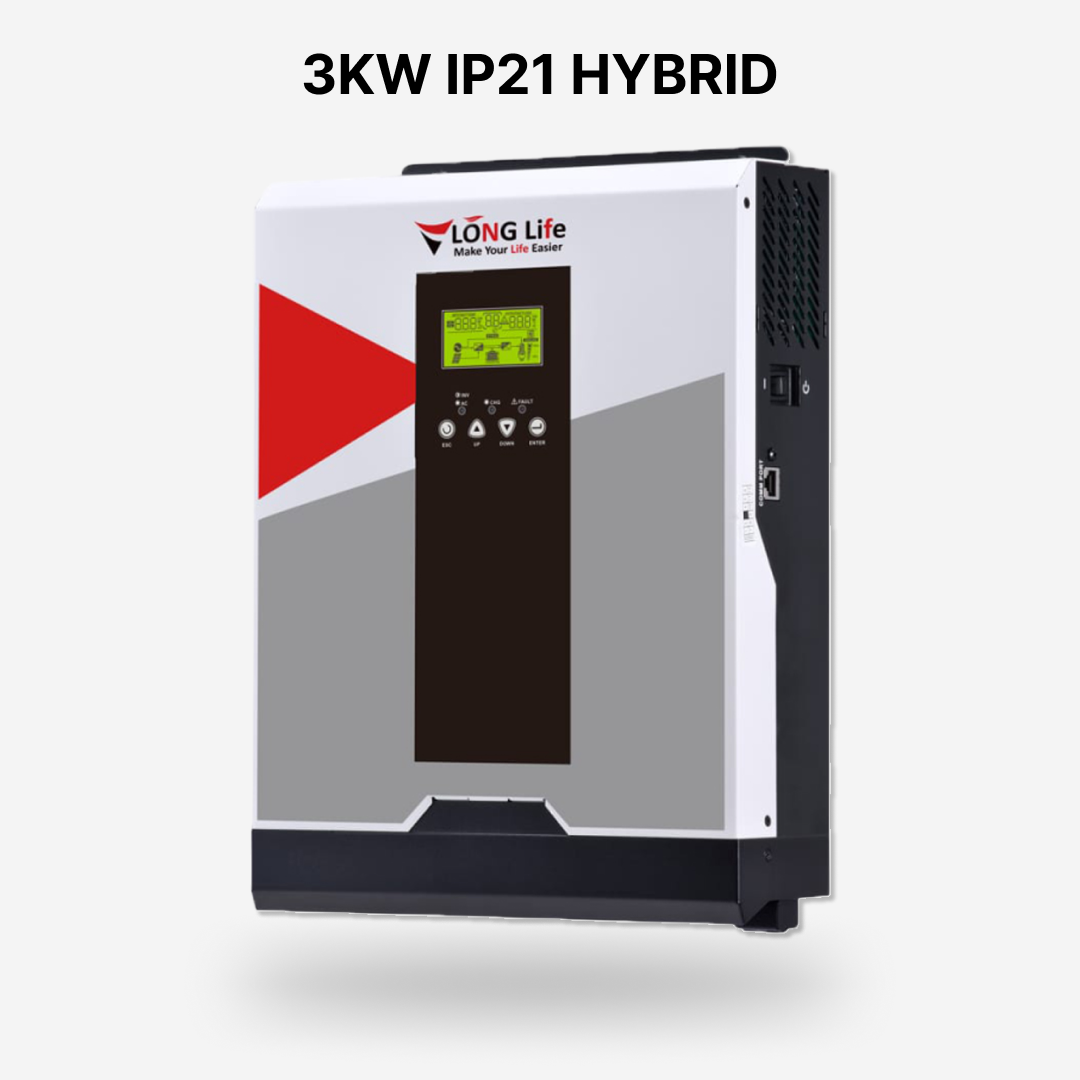

LONG LIFE 3KW Hybrid Solar Inverter

Download Product Datasheet

LONG LIFE 3KW:

Type: Pure Sine Wave | Hybrid Inverter
Rated Power: 3000VA / 3000W
Battery Voltage: 24V DC

Key Features:

• Output Power Factor: 1

• High PV Input Voltage: up to 450V DC

• Built-in MPPT Solar Charger:
  • 80A (1.2K / 2.5K / 3K Premium)
  • 100A (3K model)

• Battery Independent Operation

• Battery Equalization: Enhances battery life

• Anti-Dust Kit: For harsh environments (3K/5K models only)

• Pure Sine Wave Output

• Smart Transfer Time: 10–20 ms

• Efficiency: Peak up to 93%

Input

• Voltage Range:
  • 170–280V AC (for PCs)
  • 90–280V AC (for Home Appliances)

• Frequency: 50/60 Hz (Auto Sensing)

Battery

• Voltage: 24V DC

• Floating Charge Voltage: 27V

• Overcharge Protection: 32V

Solar & AC Charging

• Max PV Power: 3200W

• Open Circuit Voltage: 450V DC

• MPPT Range: 60–400V DC

• Max Solar & AC Charge Current: 80A

• Combined Max Charging: 80A

Physical Specs

• Dimensions: 100 × 288 × 390 mm

• Weight: 8.0 kg

• Interface: RS232

Environmental

• Humidity: 5%–95% (Non-condensing)

• Operating Temp: –10°C to 50°C

• Storage Temp: –15°C to 60°C
