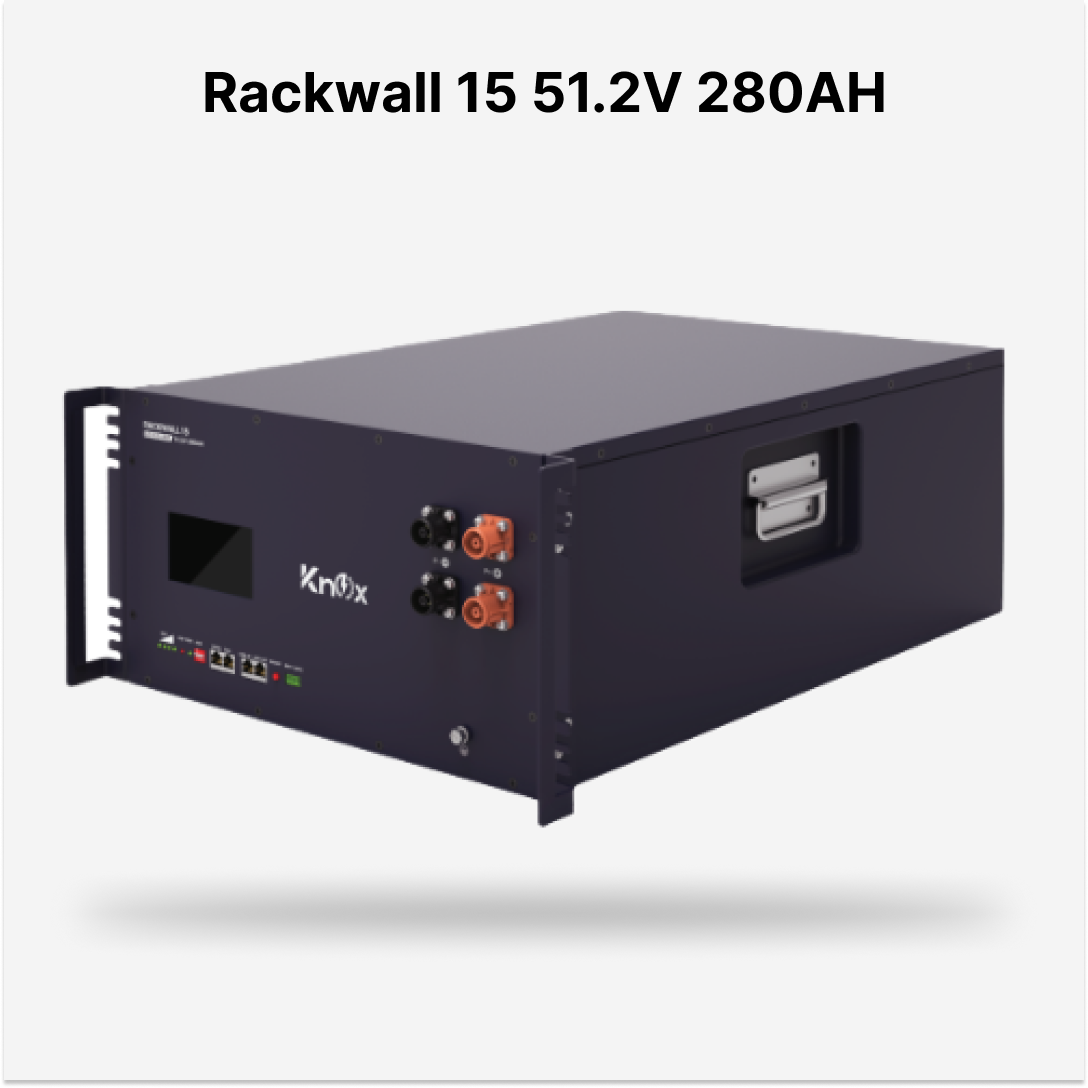

51.2V | 280Ah | 14.3kWh | LiFePO₄ | Rack-Mounted
The LIO 15.0-IP20 is a high-capacity rack-mounted lithium battery engineered for advanced energy storage systems. With a robust 14.3kWh storage capacity and A-grade prismatic LiFePO₄ cells, it ensures over 6000 charge cycles, superior safety, and long-term reliability for residential, commercial, or industrial energy applications.
Its 4.3-inch LCD touchscreen, smart BMS, and parallel scalability (up to 15 units) make it a powerful and adaptable solution for hybrid or off-grid setups. The battery is fully compatible with top inverter brands using RS485 and CAN protocols, while its IP20-rated metal enclosure and rack-mount design enable flexible and efficient installation.
Total Energy: 14.34kWh (51.2V, 280Ah)
Long-life Cells: >6000 cycles at 90% DoD (25°C, 0.5C)
Smart BMS Protection: OVP, LVP, OCP, OTP, LTP, short circuit
Parallel Support: Connect up to 15 batteries
Communication: RS485, CAN, LINK-IN, LINK-OUT (inverter + battery-to-battery)
User Interface: 4.3” touch LCD & PC software
Design: 19” standard rack-mount with quick-release terminals
Operating Temp Range: -20°C to +55°C
Maintenance Free & Safe: Metal case, fanless design, wide humidity tolerance
Specification | Details |
---|---|
Model | LIO 15.0-IP20 |
Battery Type | Prismatic LiFePO₄ |
Nominal Voltage | 51.2V |
Nominal Capacity | 280Ah |
Total Energy | 14,336Wh |
Charge Voltage | 55.2V – 57.6V |
Discharge Cut-off Voltage | 48V |
Max Charging Current | 150A |
Max Discharging Current | 150A |
Pulse Discharge Current | 180A (2 seconds) |
Cycle Life | >6000 cycles (90% DoD @ 25°C) |
Calendar Life | 10 Years |
Communication Ports | RS485, CAN, LINK-IN, LINK-OUT |
Display | 4.3” Touch LCD |
Installation | Rack-Mounted (19” Rack) |
Dimensions (W×D×H) | 442 × 650 × 250 mm |
Weight | 115.2 kg |
Operating Temp | Charge: 0°C to 55°C |
