| Parameter | Details |
|---|---|

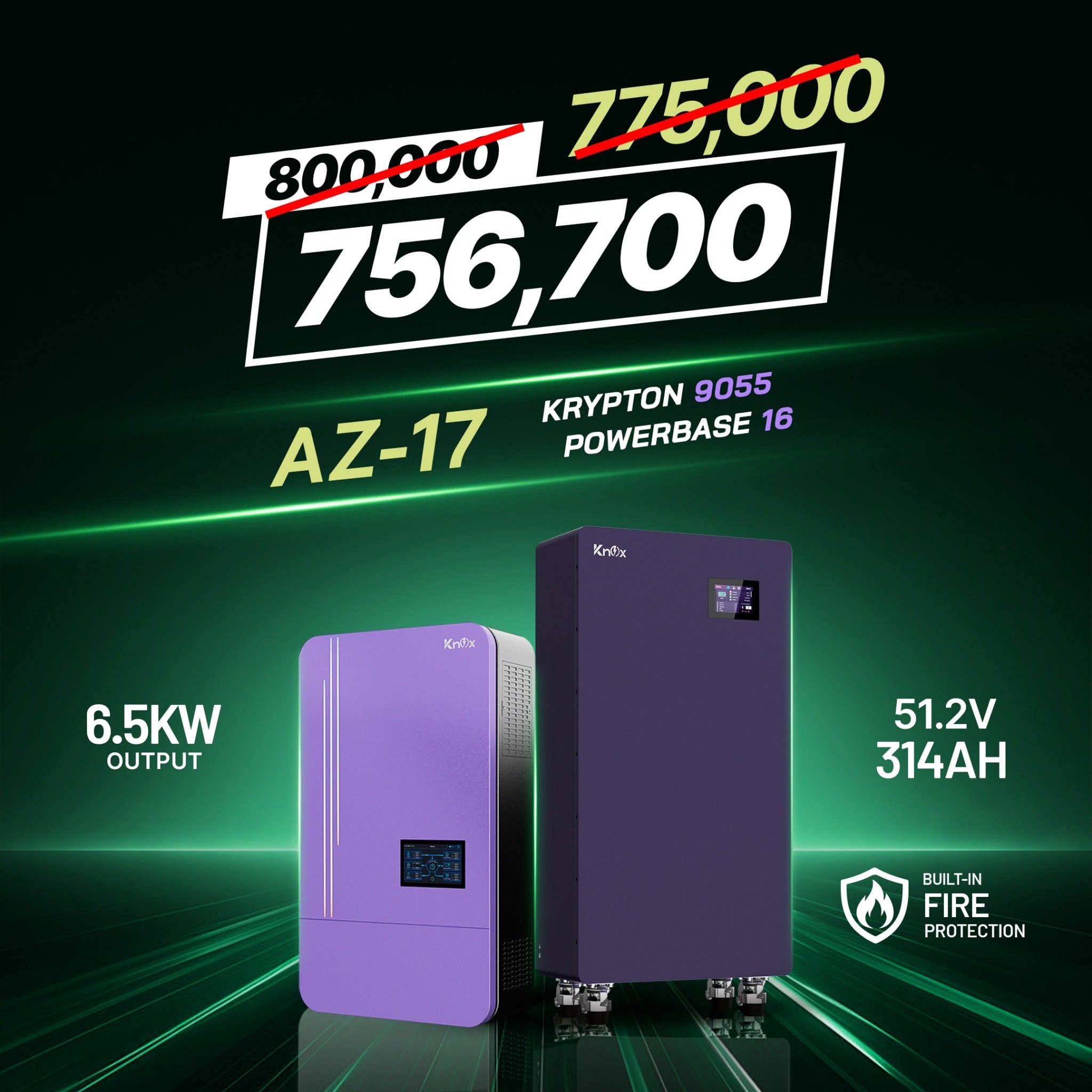

| Model | 6.5kW-48-PV9055-TWIN |
| Phase | Single Phase |
| Rated Output Power | 6500W |
| PV + Battery Output | 8000W |
| Max PV Input Power | 4500W x 2 |
| Max PV Input Current | 2x22A |
| PV Voltage Range | 120–430VDC |
| Nominal DC Voltage | 48VDC |
| Max Solar Charging Current | 150A |
| AC Charging Current | 120A |
| Surge Power | 13000VA |
| Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 10ms (PCs), 20ms (Home Appliances) |
| Efficiency | DC-AC: 93% / MPPT: 95% |
| Communication Ports | USB, RS232, RS485, WiFi, Dry-contact |
| Dimensions (D x W x H) | 140 x 295 x 468 mm |
| Net Weight | 13.5 kg |
| Operating Temp. | -10°C to 50°C |
| Humidity | 0 ~ 90% RH (non-condensing) |
| Certifications | IEC 62109-1/-2, IEC 61683, LVD 2014/35/EU |
Premium Grade A prismatic LiFePO4 battery cells
51.2V nominal voltage with 314Ah capacity
High energy storage capacity of 16.07kWh
Over 8,000 charge and discharge cycles
Intelligent PACE Battery Management System (BMS)
4.3-inch HMI touchscreen display
Supports parallel connection of up to 8 battery units
Comprehensive protection against:
Overcharge
Over-discharge
Over-current
Short circuit
High temperature
Low temperature
Cell balancing function for improved battery life
Durable metal enclosure with excellent heat dissipation
Quick plug terminal design for easy installation
Low power consumption display with high brightness
UN38.3 and MSDS certified
5-Year Manufacturer Warranty
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Energy Capacity: 16,076Wh (16.07kWh)
Open Circuit Voltage: 50.88V–53.6V
Charge Cut-off Voltage: 57.6V
Discharge Cut-off Voltage: 41.6V
Maximum Charge Current: 150A
Continuous Discharge Current: 200A
Maximum Discharge Current: 200A
Peak Discharge Current: 360A (10 Seconds)
Recommended Discharge Current: 150A
Continuous Charge/Discharge Rate: 0.6C
Cycle Life: More than 8,000 Cycles
Parallel Support: Up to 8 Batteries
Battery Management System: PACE BMS
Cell Balancing: Supported
Communication Ports:
RS485
RS232
Display:
4.3-inch HMI Touchscreen
Charging Temperature: 0°C to +55°C
Discharging Temperature: -20°C to +60°C
Storage Temperature:
-5°C to +0°C (Up to 2 Months)
+5°C to +35°C (Up to 3 Months)
+15°C to +35°C (Up to 6 Months)
Relative Humidity: 60% ±20% RH
Protection Rating: IP20
Dimensions: 520 × 245 × 880 mm
Weight: 119.5 kg
Terminal Type: Quick Plug
UN38.3
MSDS
5-Year Manufacturer Warranty
