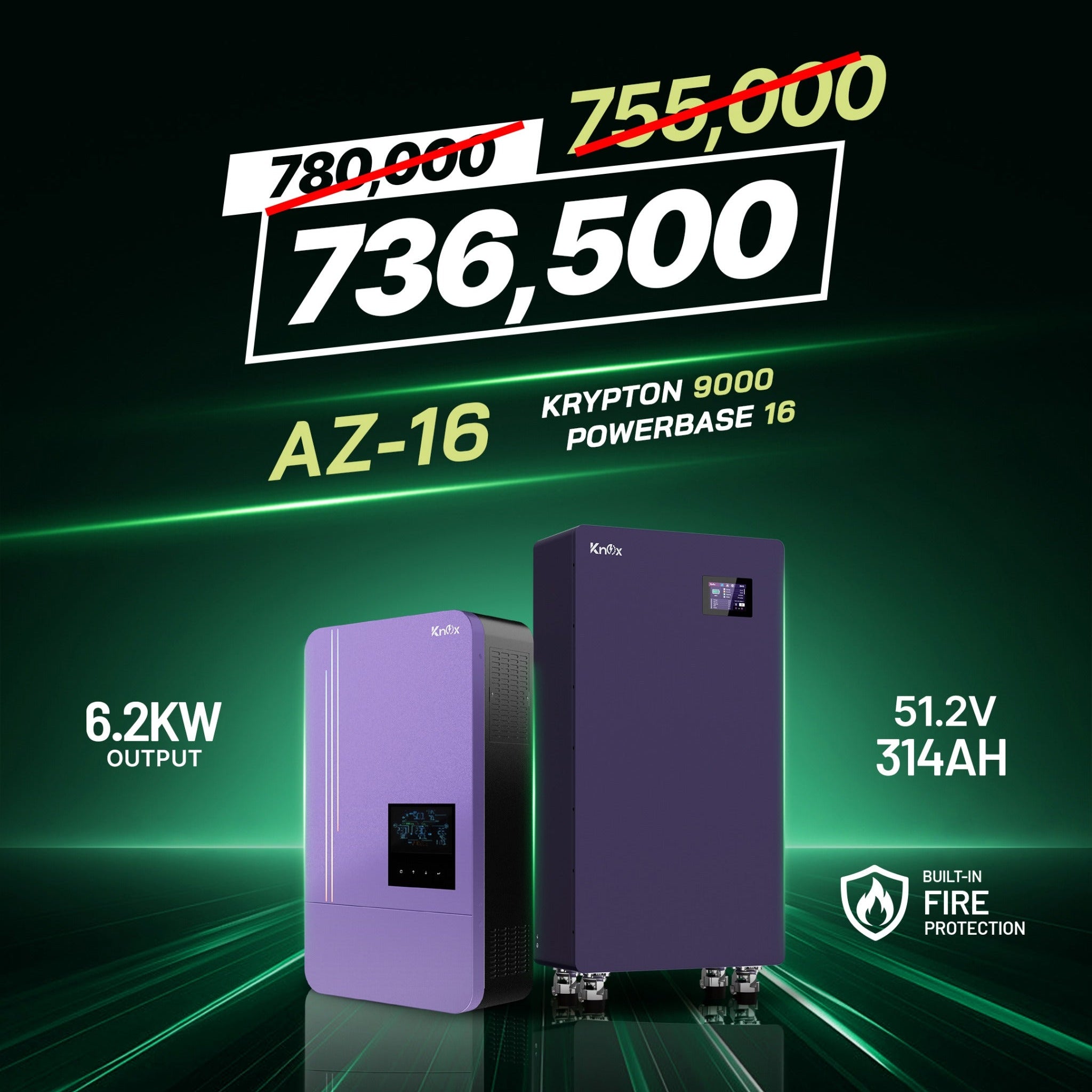

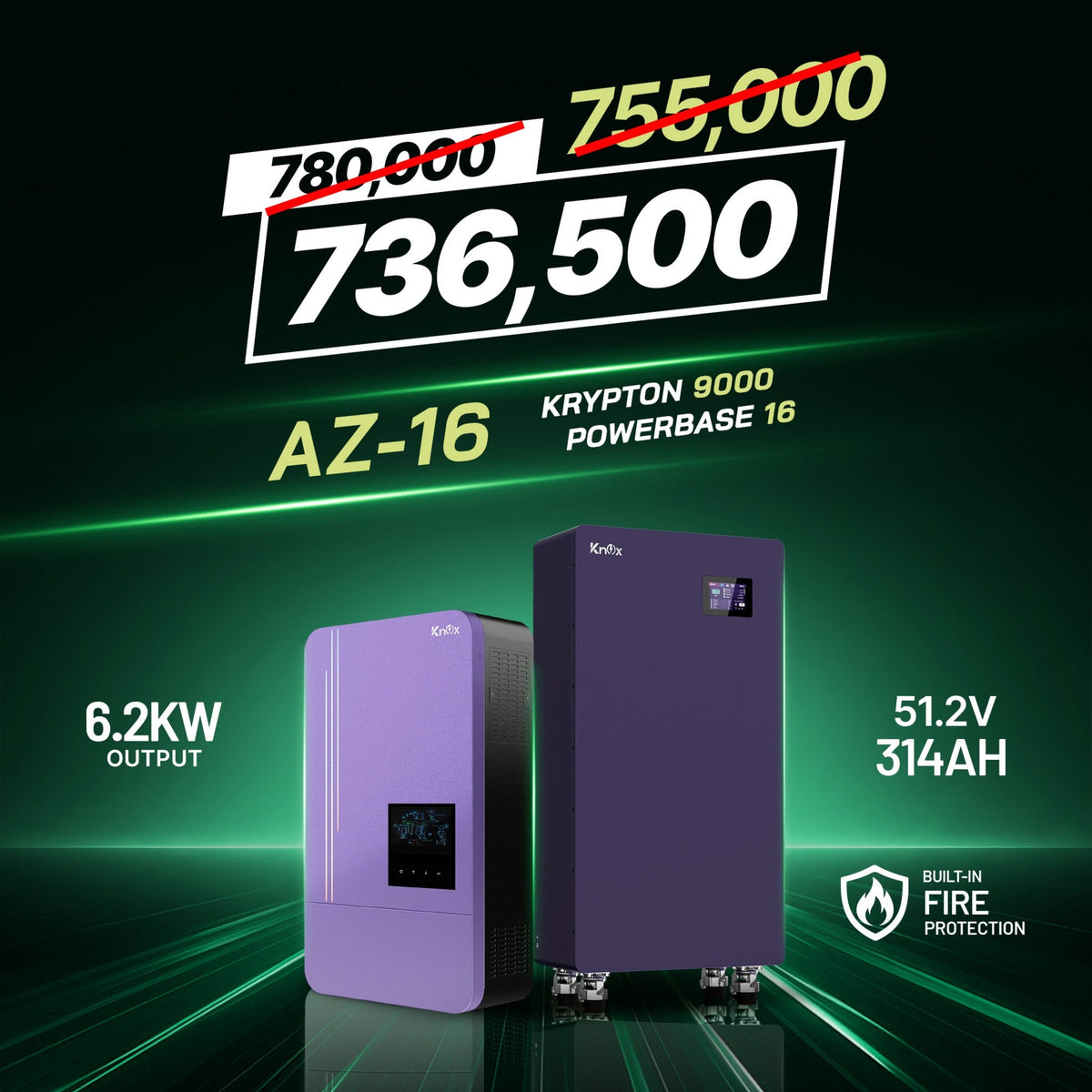

Knox Azadi Sale Offer - AZ-16 | Knox PowerBase 16 Lithium Battery | Knox Krypton 9000 Solar Inverter

Key Features:

• Premium Grade A prismatic LiFePO4 battery cells

• 51.2V nominal voltage with 314Ah capacity

• High energy storage capacity of 16.07kWh

• Over 8,000 charge and discharge cycles

• Intelligent PACE Battery Management System (BMS)

• 4.3-inch HMI touchscreen display

• Supports parallel connection of up to 8 battery units

• Comprehensive protection against:

  • Overcharge

  • Over-discharge

  • Over-current

  • Short circuit

  • High temperature

  • Low temperature

• Cell balancing function for improved battery life

• Durable metal enclosure with excellent heat dissipation

• Quick plug terminal design for easy installation

• Low power consumption display with high brightness

• UN38.3 and MSDS certified

• 5-Year Manufacturer Warranty

Technical Specifications

Battery Specifications

• Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)

• Nominal Voltage: 51.2V

• Nominal Capacity: 314Ah

• Energy Capacity: 16,076Wh (16.07kWh)

• Open Circuit Voltage: 50.88V–53.6V

• Charge Cut-off Voltage: 57.6V

• Discharge Cut-off Voltage: 41.6V

Charging & Discharging

• Maximum Charge Current: 150A

• Continuous Discharge Current: 200A

• Maximum Discharge Current: 200A

• Peak Discharge Current: 360A (10 Seconds)

• Recommended Discharge Current: 150A

• Continuous Charge/Discharge Rate: 0.6C

Performance

• Cycle Life: More than 8,000 Cycles

• Parallel Support: Up to 8 Batteries

• Battery Management System: PACE BMS

• Cell Balancing: Supported

Communication & Display

• Communication Ports:

  • RS485

  • RS232

• Display:

  • 4.3-inch HMI Touchscreen

Environmental Conditions

• Charging Temperature: 0°C to +55°C

• Discharging Temperature: -20°C to +60°C

• Storage Temperature:

  • -5°C to +0°C (Up to 2 Months)

  • +5°C to +35°C (Up to 3 Months)

  • +15°C to +35°C (Up to 6 Months)

• Relative Humidity: 60% ±20% RH

• Protection Rating: IP20

Physical Specifications

• Dimensions: 520 × 245 × 880 mm

• Weight: 119.5 kg

• Terminal Type: Quick Plug

Certifications

• UN38.3

• MSDS

Warranty

• 5-Year Manufacturer Warranty
