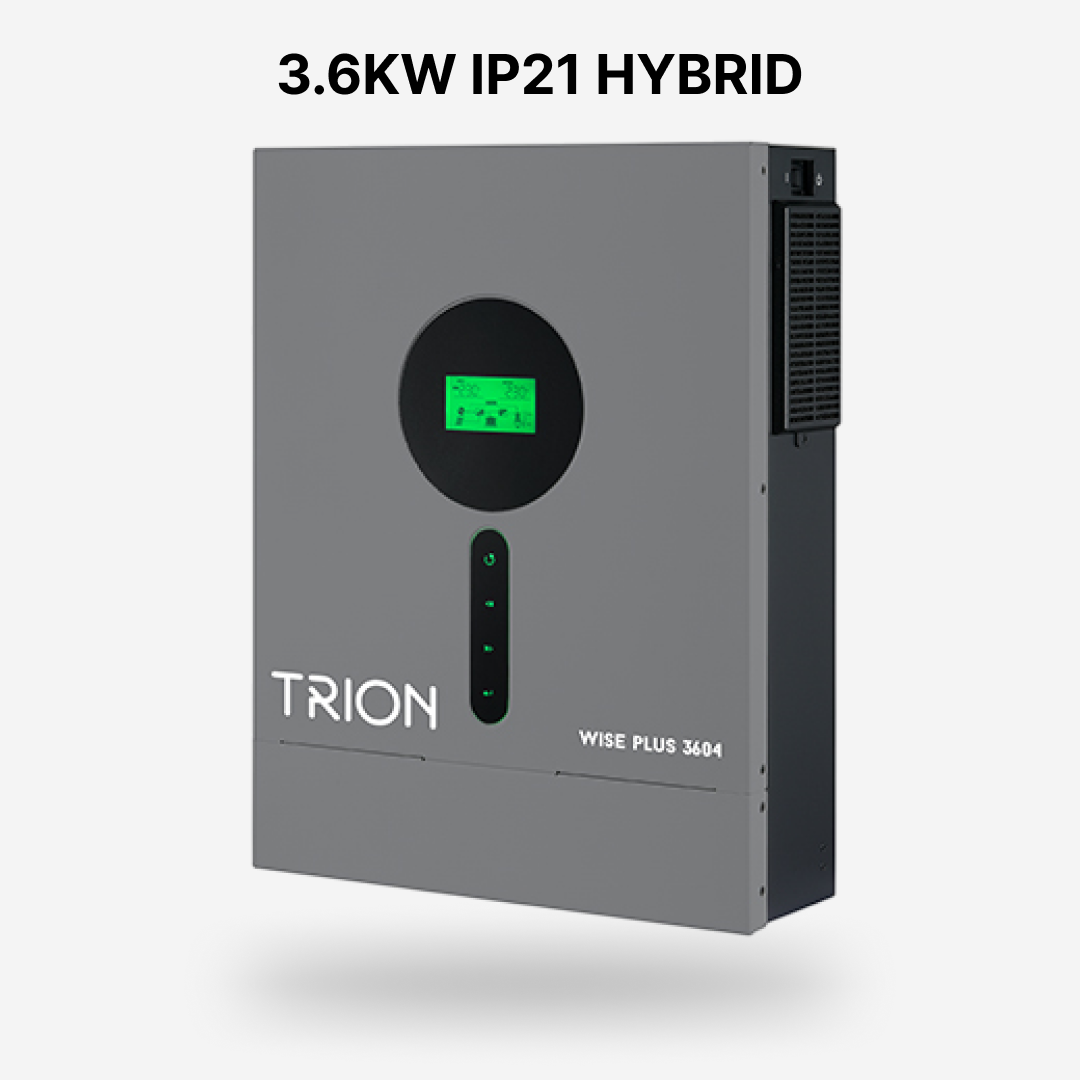

TRION 3.6KW Hybrid Solar Inverter

Download Product Datasheet

WISE PLUS 3604 (VM II-3600 TWIN)

3600W with Dual Output & MPPT Charger

🌞 Features:

• Dual output for smart load management

• Battery-independent design

• 120A built-in MPPT solar charger

• Max PV input power: 5000W

• Max PV current: 27A

• Wide MPPT voltage range: 60VDC ~ 450VDC

• Max PV open circuit voltage: 500VDC

• Battery equalization function extends battery life

• Hi-tech charger optimized for Pakistani batteries and weather

• 3-stage charging control for safe and efficient charging

• High DC-AC efficiency: 93%

⚙️ Technical Specifications:

Model: WISE PLUS 3604 (VM II-3600 TWIN)
Rated Power: 3600VA / 3600W
Surge Power: 7200VA
Waveform: Pure sine wave
Transfer Time: 10ms (PCs), 20ms (Home appliances)

🔌 Input (AC):

• Voltage: 230VAC

• Selectable Range: 170-280V (PC) / 90-280V (Home)

• Frequency: 50/60Hz (auto sensing)

• AC Regulation (Battery Mode): 230V ± 5%

🔋 Battery:

• Voltage: 24VDC

• Float Voltage: 27VDC

• Overcharge Protection: 33VDC

☀️ Solar Charger (MPPT):

• Max PV Power: 5000W

• Max PV Voltage (OC): 500VDC

• Max PV Input Current: 27A

• MPPT Range: 60 – 450VDC

• Max Solar Charge Current: 120A

• Max AC Charge Current: 100A

• Max Combined Charge Current: 120A

📐 Physical:

• Dimensions: 107 × 322.6 × 420.3 mm

• Net Weight: 9.5 kg

• Communication Ports: USB / RS-232

🌡️ Environment:

• Humidity: 5% – 95% (non-condensing)

• Operating Temp: –10°C to 50°C

• Storage Temp: –15°C to 60°C
