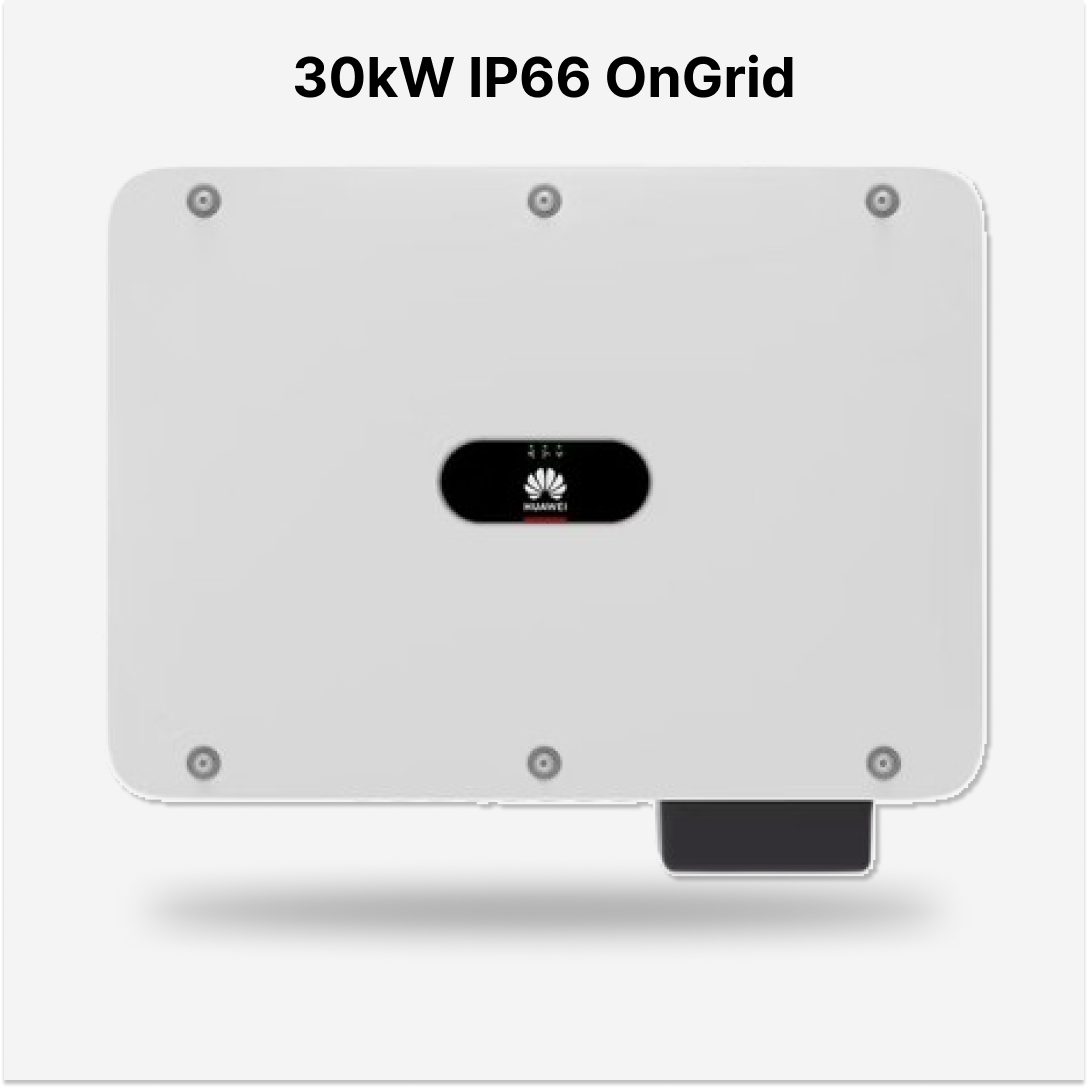

Huawei 30kW OnGrid Solar Inverter

Download Product Datasheet

The Huawei SUN2000-30KTL-M3 is a powerful 30 kW three-phase on-grid solar inverter designed to handle demanding solar systems, particularly for large commercial or industrial applications. Here’s a detailed overview:

Key Features:

• 3-Phase Inverter: Provides 33,000 VA of power output for large-scale solar installations.
• Efficiency: Achieves up to 98.7% efficiency, ensuring optimal energy conversion.
• Multiple MPPTs: Equipped with 4 independent MPPT trackers for maximizing power output across multiple solar arrays.
• Communication Options: Supports WLAN, Ethernet, and optional 2G/3G/4G, enabling remote monitoring and management via FusionSolar.
• Integrated Protection: Includes AC and DC overvoltage protection (TYPE II), PID recovery, and robust IP66 protection for outdoor durability.
• Convection Cooling: Ensures efficient heat dissipation without the need for fans, reducing maintenance and wear.
• Smart Integration: Connects seamlessly with Smart Power Sensors, Smart Logger, and Smart Optimizers.

Technical Specifications:

• DC Input:

  • Number of Inputs: 8
  • Maximum Voltage: Typically designed for high voltage systems (specific voltage may vary).
  • MPPT Voltage Range: Multiple MPPTs optimize energy capture across diverse conditions.

• AC Output:

  • Rated AC Power: 30,000 W
  • Maximum Apparent Power: 33,000 VA
  • Output Voltage Options: 220/380 V, 230/400 V, 240/415 V (3-phase configurations available).
  • Frequency: 50/60 Hz
  • Max AC Current: Typically around 45-50 A, depending on the setup.

• Dimensions: 640 x 530 x 270 mm

• Weight: 43 kg (including mounting plate)

• Protection Features:

  • IP66: Dust-tight and water-resistant, making it ideal for harsh outdoor environments.
  • Overvoltage Protection: Both AC and DC circuits are protected to prevent damage.
