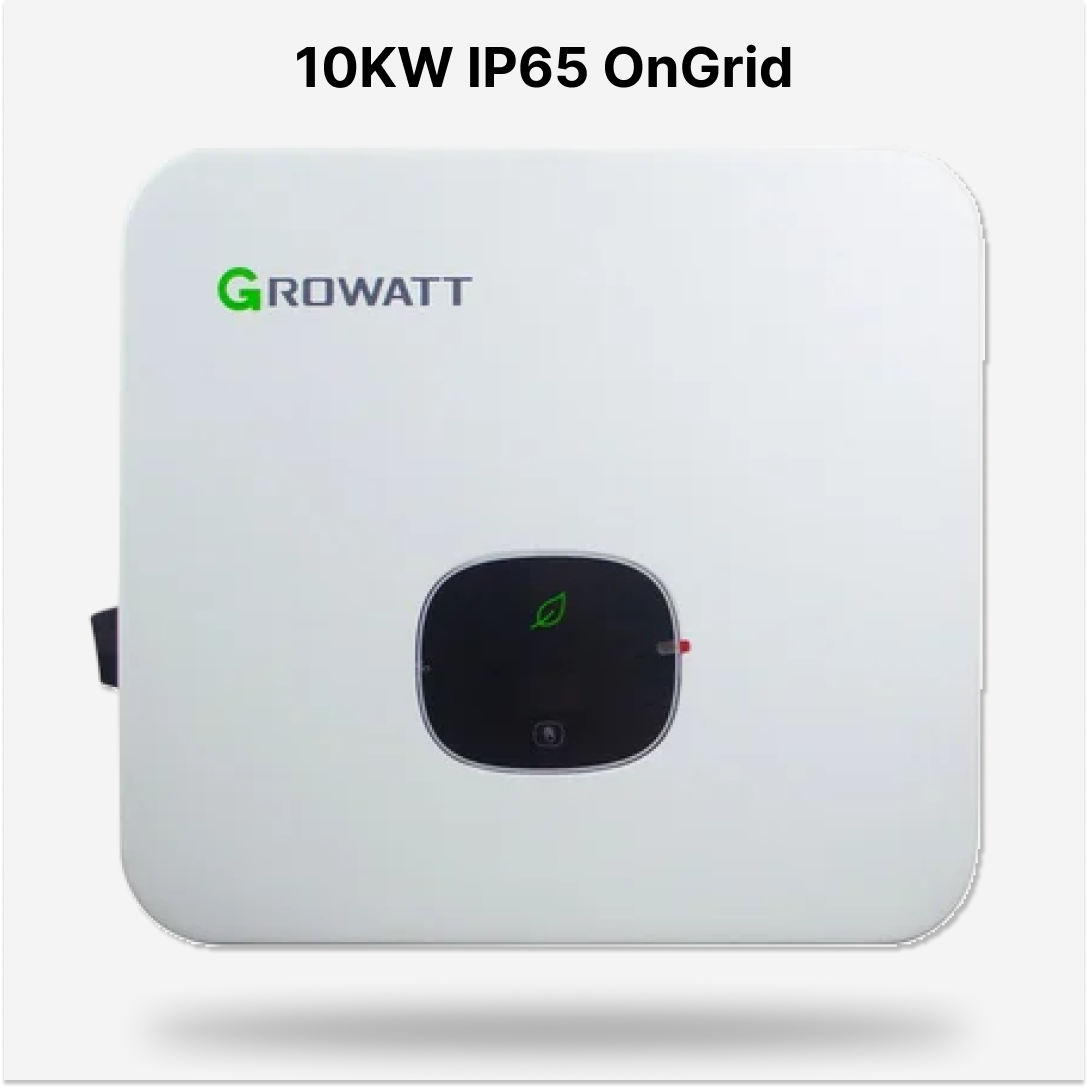

GROWATT 10KW OnGrid solar inverter

Download Product Datasheet

Growatt MOD 10KTL3-X

10kW Three Phase On-Grid Inverter

Key Features

• Max. Efficiency: 98.6%

• European Efficiency: 98.1%

• MPPT Efficiency: 99.9%

• Dual MPPT Trackers

• String Monitoring Enabled

• Natural Convection Cooling

• IP65 Protection Rating (Dustproof & Waterproof)

• WIFI + APP Support (USB/RS485/WIFI/GPRS/LAN/RF)

• Remote Monitoring Available

• Transformerless Topology

• Type II SPD on both DC & AC sides

Technical Specifications

DC Input

• Max. DC Voltage: 1100V

• Start Voltage: 200V

• MPPT Voltage Range: 140V – 1000V

• Nominal Voltage: 580V

• No. of MPPT Trackers: 2

• No. of Strings per MPPT: 2/1

• Max. Input Current per MPPT: 26/13A

• Max. Short-Circuit Current per MPPT: 32/16A

• Max. Recommended PV Power: 15,000W

AC Output

• AC Nominal Power: 10,000W

• Max. AC Apparent Power: 11,000VA

• Max. Output Current: 16.7A

• AC Voltage Range: 220V/380V or 230V/400V (340–440V)

• AC Frequency Range: 50/60Hz (45–55Hz/55–65Hz)

• Power Factor: Adjustable (0.8 leading to 0.8 lagging)

• THDi: <3%

General

• Cooling: Natural Convection

• Weight: 14kg

• Dimensions: 425 × 387 × 178 mm

• Operating Temperature: –25°C to +60°C

• Nighttime Power Consumption: <1W

• Max. Altitude: 4000m

• Relative Humidity: 0–100%


• Protection:

  • DC Reverse Polarity

  • DC Switch

  • AC/DC Surge Protection (Type II)

  • Residual Current Monitoring

  • Insulation & Ground Fault Monitoring

  • AFCI (Optional)

  • Anti-islanding & String Fault Monitoring

  • AC Short Circuit Protection
