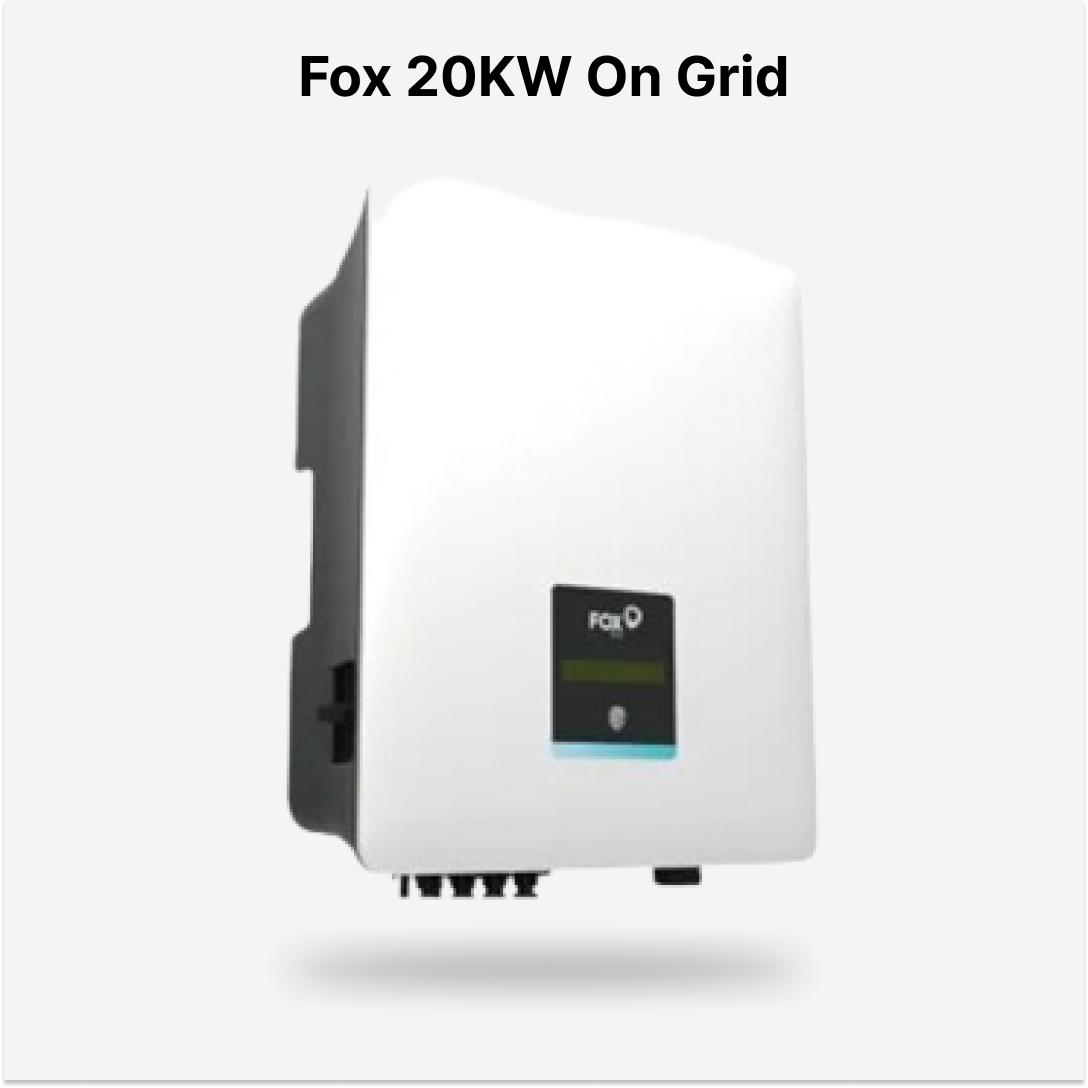

FOX 20kW On-Grid Solar Inverter
Harness Maximum Energy with FOX 20kW Grid-Tied Inverter
The Fox 20kW On-Grid Solar Inverter is engineered for medium to large solar installations requiring maximum efficiency, high voltage compatibility, and scalable design. With a maximum DC input of 30,000W, this inverter efficiently handles large solar arrays and is perfect for residential, commercial, or industrial-grade setups.
It features a transformerless design with MPPT tracking range from 140–1000V, enabling precise and optimized energy harvesting even under partial shading or fluctuating weather conditions.
Key Features
-
Max PV Input Power: 30,000W
-
Max DC Voltage: 1100V
-
MPPT Voltage Range: 140V – 1000V
-
System Type: 3-Phase On-Grid
-
Cooling System: Intelligent Fan Cooling
-
Protection Rating: IP65 (Waterproof & Dustproof)
-
Communication: RS485, Wi-Fi Monitoring Supported
-
Design: Transformerless, Fan-Cooled
-
Usage: Perfect for Homes, Schools, Factories & Commercial Sites
Technical Specifications Overview
| Specification | Detail |
|---|---|
| Rated AC Output Power | 20,000W (3-Phase) |
| Max DC Input | 30,000W |
| Max Input Voltage | 1100V |
| MPPT Voltage Range | 140 – 1000V |
| Cooling Type | Fan-Based |
| Protection Degree | IP65 |
| Display & Monitoring | App / LCD / Web |
| Communication Protocol | RS485 / WiFi (Optional) |
