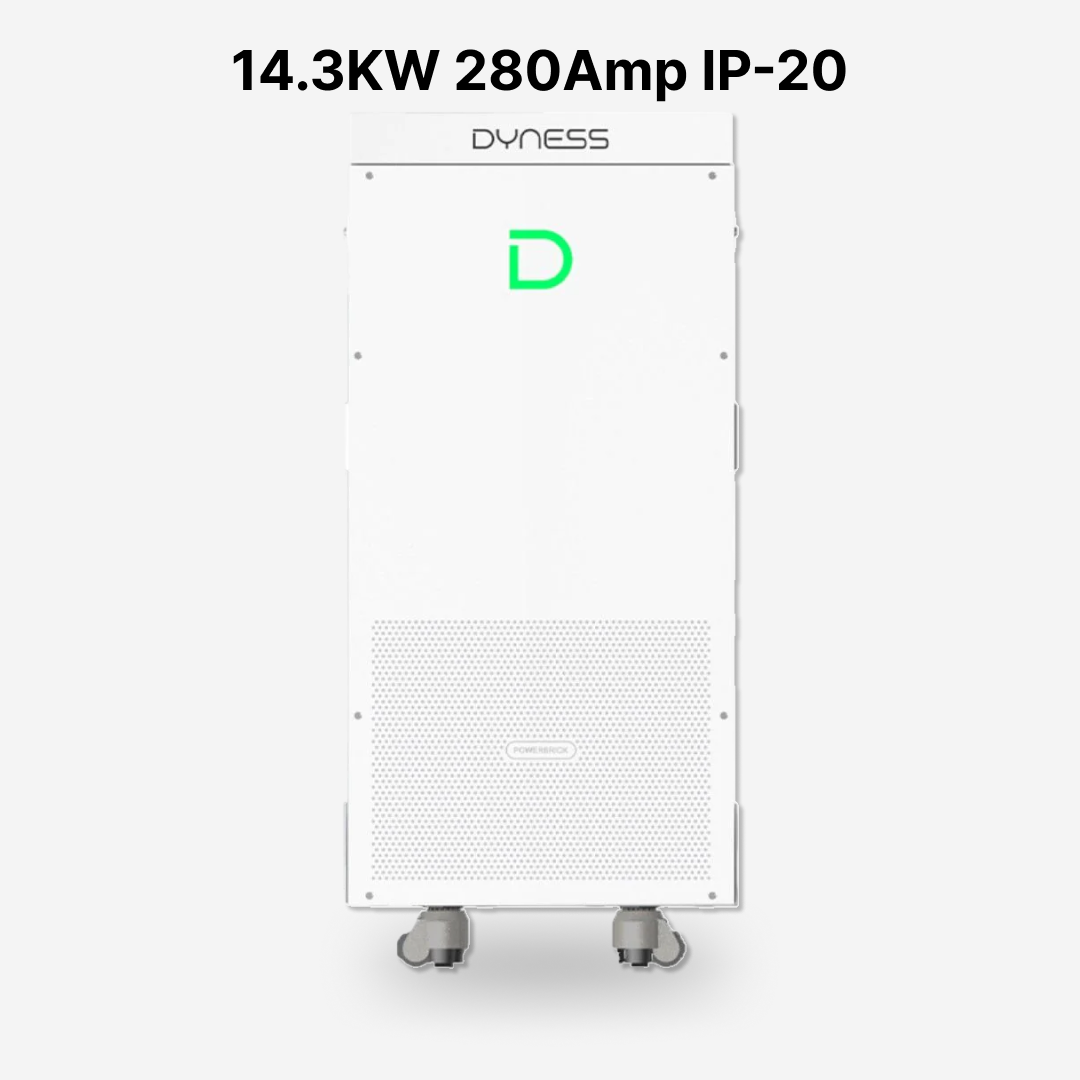

Dyness PowerBrick – 51.2V 280Ah Lithium Battery System
Detailed Technical Specifications
General Overview
-
Model: PowerBrick
-
Brand: Dyness
-
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
-
Application: Residential energy storage (low-voltage systems)
-
Design: All-in-one floor-standing unit with wheels
-
Scalability: Supports up to 50 units in parallel
Energy & Capacity
-
Nominal Battery Energy: 14.336 kWh
-
Nominal Voltage: 51.2 V
-
Nominal Capacity: 280 Ah
-
Depth of Discharge (DoD): 95%
Charge & Discharge Parameters
-
Recommended Charge/Discharge Current: 140 A (0.5C)
-
Maximum Charging Current: 200 A
-
Maximum Discharging Current: 200 A
-
Peak Discharge Current: 300 A (2 mins @ 25°C)
Cycle Life & Performance
-
Cycle Life: ≥8000 cycles
-
Expected Lifespan: ~10 years
-
Efficiency: High efficiency for stable long-duration backup
Communication & Smart Features
-
Communication Protocols:
-
Smart Features:
- Built-in WiFi module
- Mobile App monitoring (OTA updates supported)
- Real-time system diagnostics
Safety & Protection
-
Protection Level: IP20
-
Built-in Safety Systems:
- Intelligent BMS (fast reaction within 5 seconds)
- Aerosol fire extinguishing system
-
Certifications:
Environmental Conditions
-
Charging Temperature Range: 0°C to +55°C
-
Optional Low Temp Charging: Down to -20°C
-
Discharging Temperature Range: -20°C to +55°C
-
Humidity: Standard indoor operating conditions
Physical Specifications
-
Dimensions (W × D × H): 435 × 233 × 857 mm
-
Net Weight: 114 kg
-
Mobility: Wheels included (easy installation & movement)
Cooling & Installation
-
Cooling Method: Natural convection
-
Installation Type: Floor-standing (no wall mount required)
-
Ease of Installation: Lightweight design (60% less volume vs traditional systems)
System Compatibility
- Compatible with major inverter brands:
- SMA
- Victron Energy
- GoodWe
- Growatt
- Solis
- Luxpower
- Deye
- APsystems
- Solplanet
