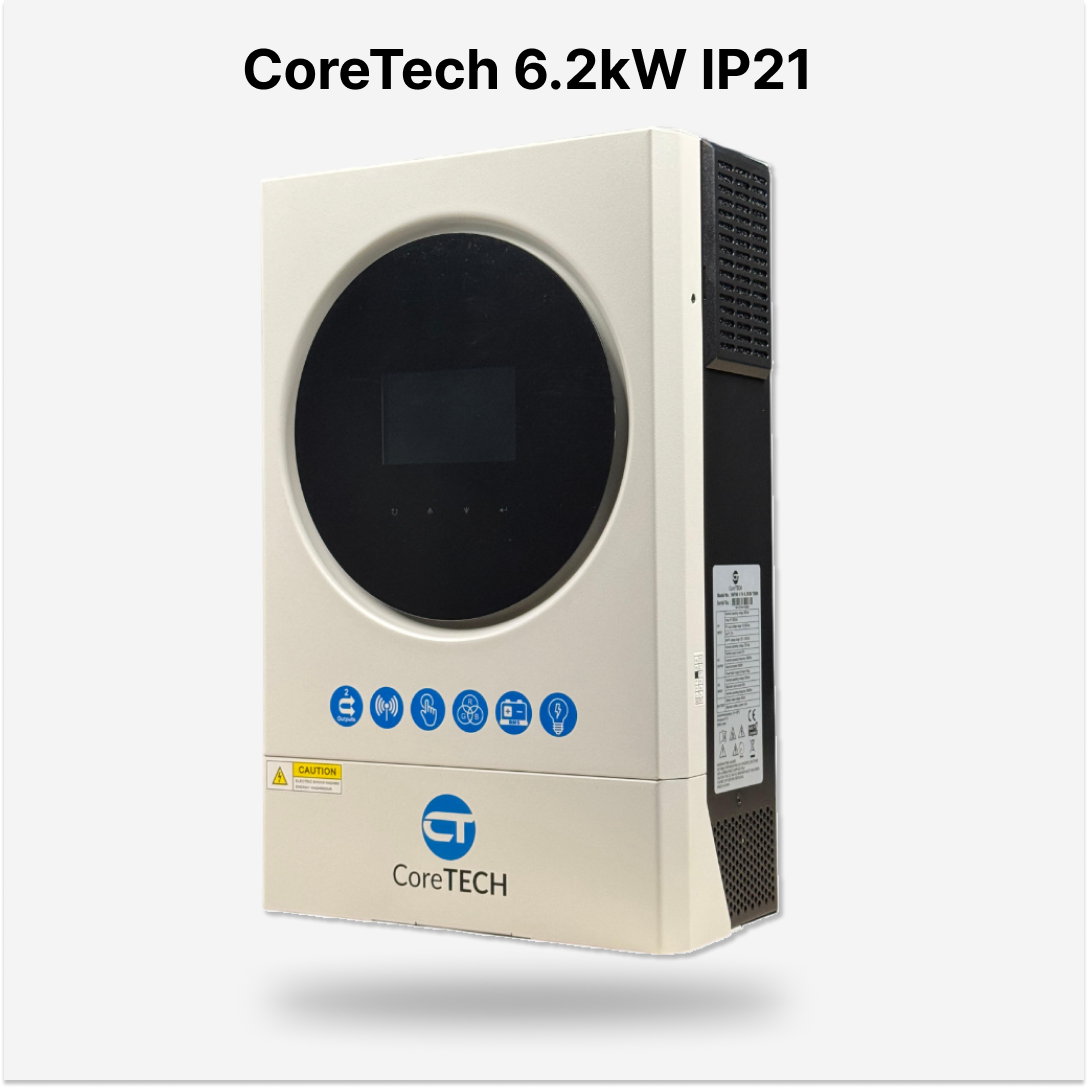

CoreTECH PV8000 | 6.2kW Hybrid Inverter

The CoreTECH PV8000 (6.2kW) is a versatile hybrid inverter that supports grid-tie, off-grid, and battery backup modes, making it ideal for residential and small commercial solar systems. With flexible MPPT voltage range, pure sinewave output, and multiple communication ports, it ensures stable, efficient, and reliable energy management.

Key Features

• Hybrid Inverter – Supports Grid-Tie, Off-Grid & Battery Mode

• Nominal Output Power: 6.2kW

• DC Voltage (Nominal/Max): 360VDC / 500VDC

• MPP Voltage Range: 120VDC – 430VDC

• Number of MPPTs: 1 tracker / 27A input current

• Pure Sinewave Output – Clean & stable AC supply

• AC Output Voltage: 220/230/240VAC (Selectable)

• Nominal Output Current: 28.3A

• Power Factor: >0.99

Battery & Charging

• Battery Voltage: 48VDC

• Max. Solar Charging Current: 120A

• Max. AC Charging Current: 120A

• Combined Max. Charging Current: 120A

AC Input & Backup

• AC Start-up Voltage: 120–140VAC

• Auto Restart Voltage: 180VAC

• Acceptable Input Range: 90–280VAC / 170–280VAC (Selectable)

• Max. AC Input Current: 40A

Communication & Monitoring

• Ports: USB / RS232 / RS485 / Wi-Fi / Dry-Contact

• Remote Monitoring Ready

Physical & Environmental

• Dimensions (D×W×H): 140 × 295 × 468 mm

• Operating Temperature: -10°C to 50°C

• Humidity Range: 0–90% RH (Non-condensing)
