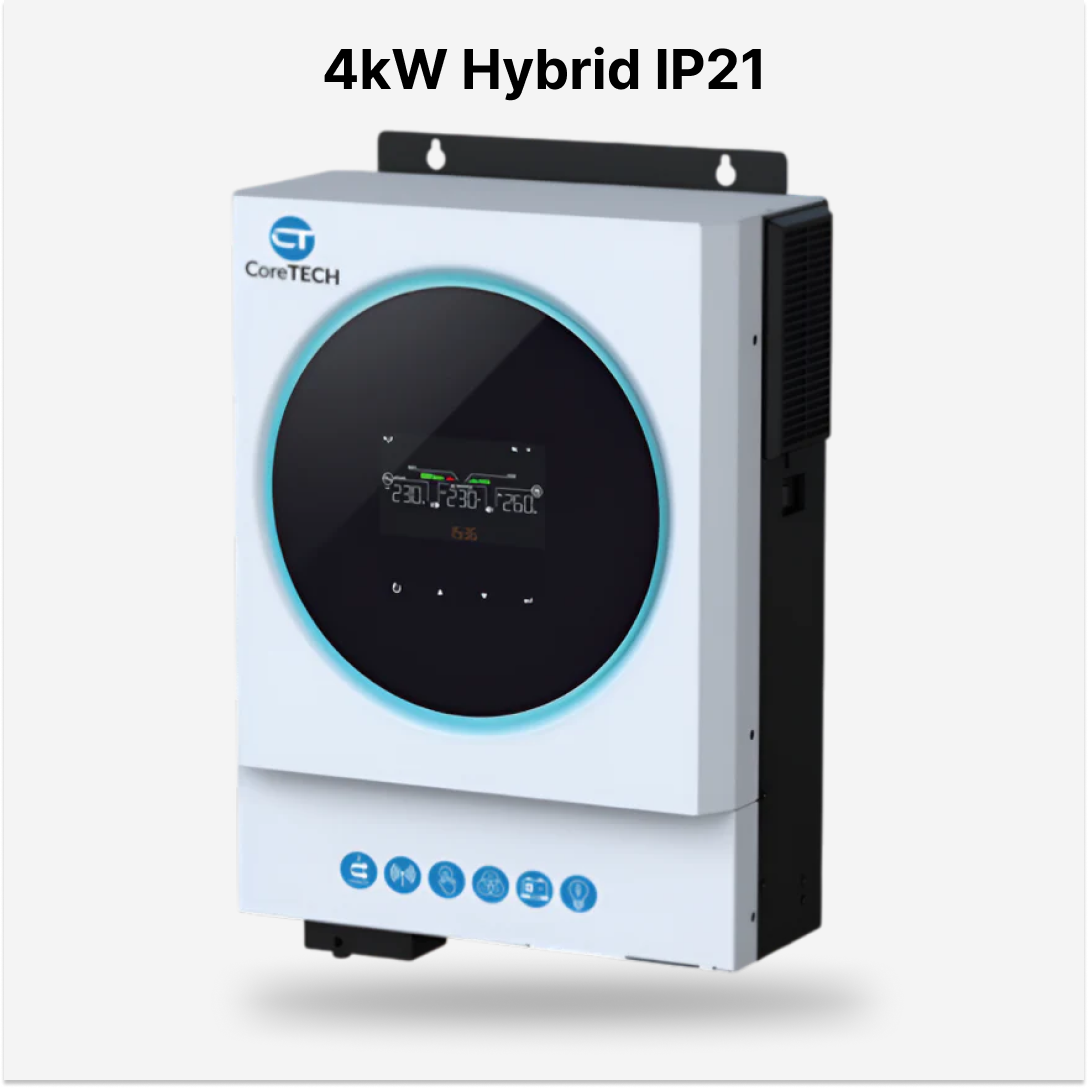

CoreTech 4kW PV 5600 IP21 Hybrid Solar Inverter

CoreTech PV5600 Hybrid Solar Inverter – Specifications

General

• Rated Power: 5600W (4KW class)

• Surge Power: 8000VA

• Waveform: Pure Sine Wave

• Efficiency: 90% – 93%

• Output Voltage: 230V AC

• Frequency: 50Hz / 60Hz (Auto sensing)

AC Input

• Selectable Voltage Range:

  • 170–280V (Personal Computers)

  • 90–280V (Home Appliances)

• Transfer Time:

  • 10ms (PCs)

  • 20ms (Home Appliances)

• AC Voltage Regulation (Battery Mode): ±10%

Battery

• Battery System Voltage: 24V DC

• Floating Charge Voltage: 27V DC

• Overcharge Protection: 33V DC

• Max AC Charging Current: 100A

• Max Total Charging Current: 120A

Solar (PV)

• Solar Charger Type: MPPT (Dual MPPT)

• Maximum PV Array Power: 5600W

• MPP Voltage Range: 60 – 450V DC

• Max PV Open Circuit Voltage: 500V DC

• Max PV Input Current: 40A

• Max Solar Charging Current: 120A

Communication & Monitoring

• Interfaces: USB / RS232 / RS485 / WiFi / Dry Contact

• WiFi Monitoring: ✅ Supported

Physical & Environmental

• Dimensions: 136 × 300 × 400.2 mm

• Weight: 10 kg

• Ingress Protection: IP21

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

• Operating Humidity: 5% – 95% (Non-condensing)

Best For

• Homes & small offices

• High-voltage solar panels (up to 500V)

• Heavy appliances (motors, ACs, pumps)

• Smart monitoring via WiFi
