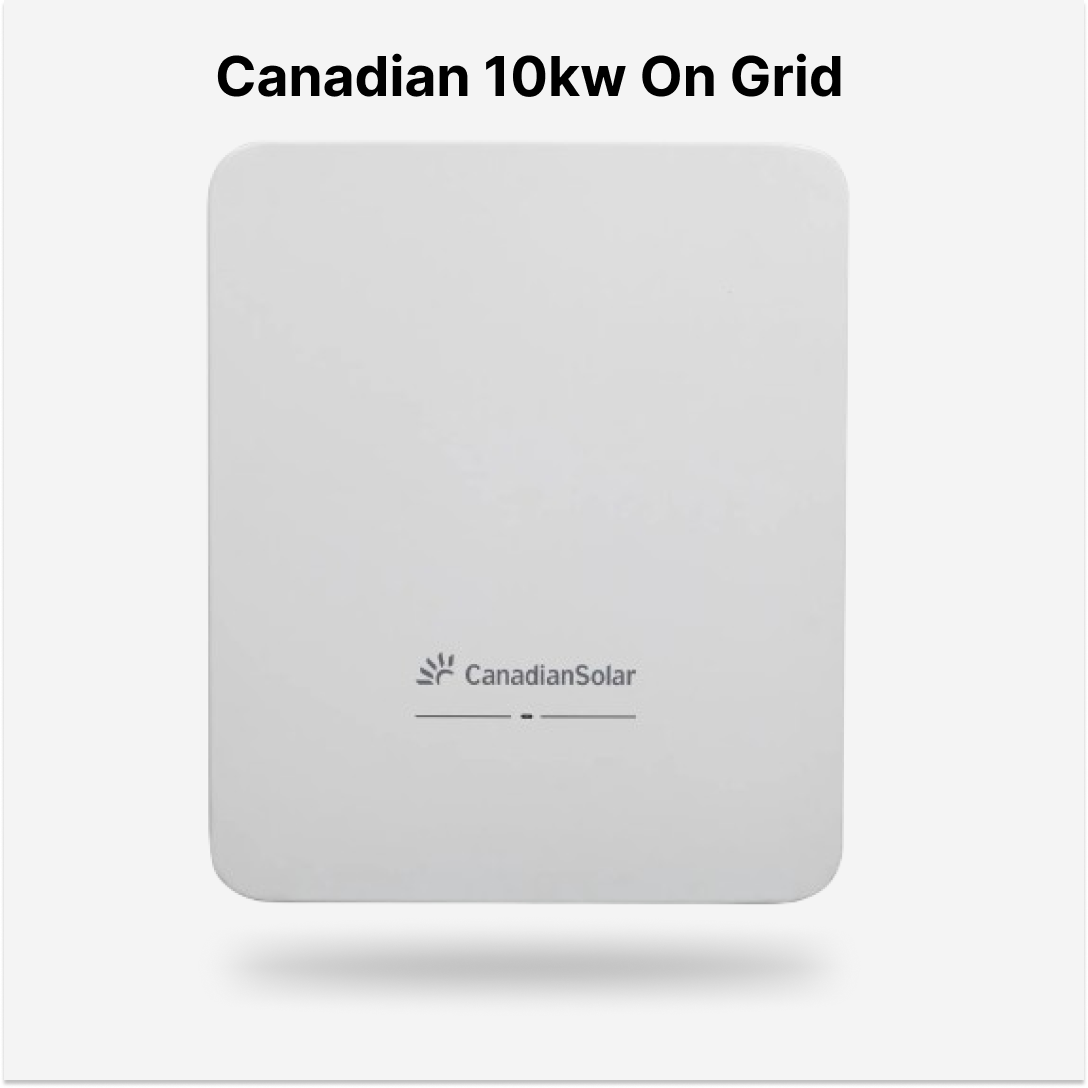

Canadian 10kW On-Grid Solar Inverter
Efficient. Durable. Smart – Built for Pakistan’s Solar Needs.
The Canadian 10kW On-Grid Inverter is a premium solar inverter solution, engineered for high-performance residential, commercial, and industrial grid-connected solar systems. With up to 98.2% conversion efficiency, dual MPPT inputs, and remote monitoring via WiFi and RS485, this inverter is built to ensure maximum solar harvest and lower energy bills.
Key Features of Canadian 10kW On-Grid Inverter
-
Rated Output Power: 10,000W (10kW)
-
MPPT Inputs: Dual MPPT – Maximum tracking for shaded or multi-string arrays
-
Max. DC Input Voltage: 1000V
-
AC Output Voltage: 230V / 400V – 3-Phase Grid Compatible
-
Smart Monitoring: WiFi + RS485 communication for remote access
-
Cooling: Intelligent Fan-Based Thermal Control
-
Protection: IP65 Dustproof & Waterproof Enclosure
-
Applications: Homes, Offices, Shops, Schools, Petrol Pumps, Factories
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | Canadian 10kW Ongrid |
| Inverter Type | Grid-Tied (On-Grid) |
| Rated Power | 10,000W |
| Max DC Input Voltage | 1000V |
| MPPT Inputs | 2 MPPT |
| AC Output Voltage | 230 / 400V |
| Cooling System | Smart Fan |
| Communication | WiFi / RS485 |
| Enclosure Protection | IP65 |
| Efficiency | Up to 98.2% |
