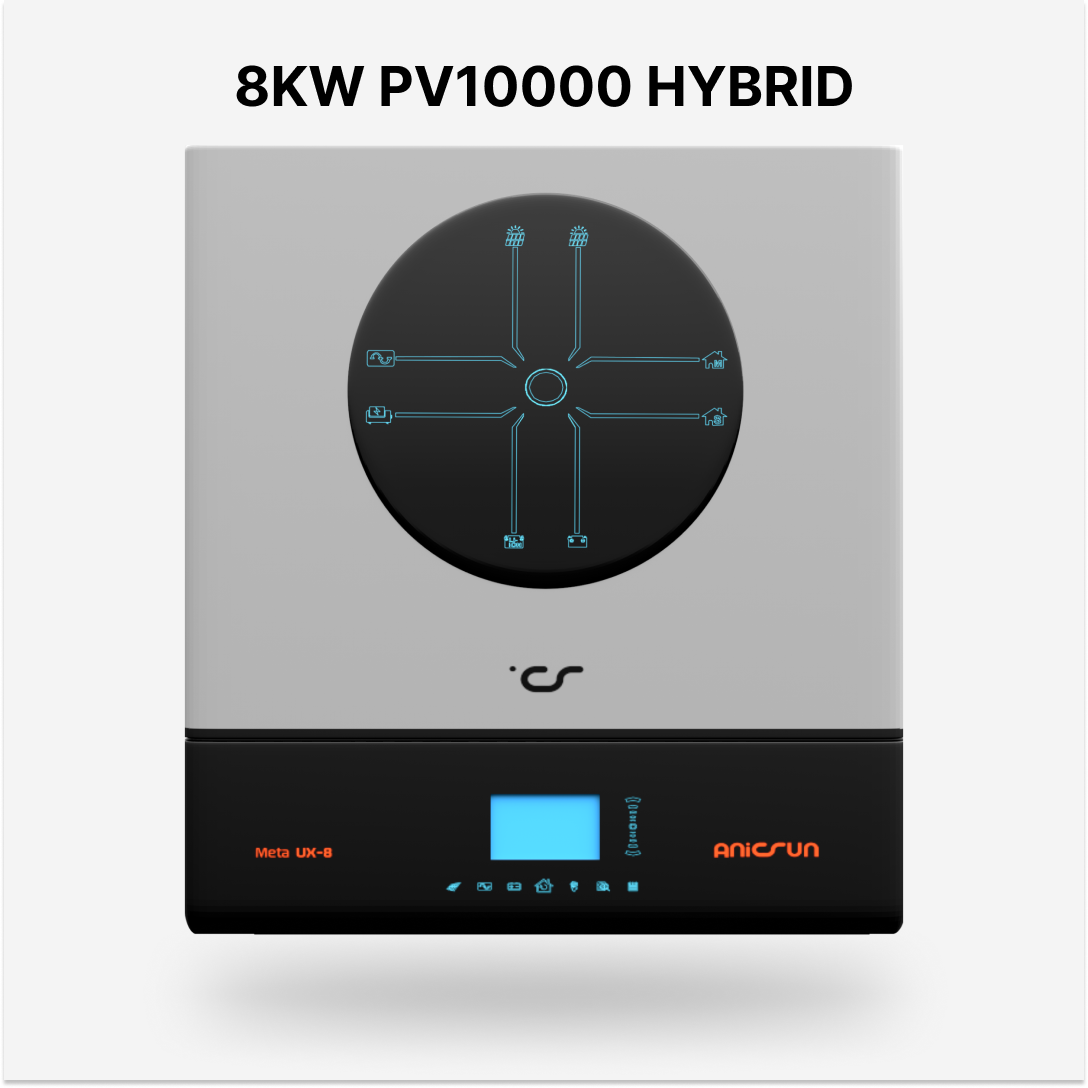

ANICSUN UX 8KW solar inverter hybrid

The Meta UX 8 KW Off-Grid Single Phase Inverter by Anicsun is a powerful and efficient solar energy solution, ideal for large-scale off-grid applications. Below is a detailed overview of its features and specifications:

Key Features

• High Power Output: Rated at 8000VA/8000W for handling significant energy loads.
• Wi-Fi Enabled: Supports remote monitoring for ease of operation.
• MPPT Charger: Advanced technology for efficient solar energy harvesting.
• Dual Outputs: Optimized for better load management.
• Battery Independent Design: Can operate with or without a battery.
• RGB Lights: Functional and aesthetic lighting indicators.
• Parallel Operation: Can work in parallel with up to 6 units for higher capacity setups.
• Wide PV Input Current: Maximum of 27A x 2 (Max 40A) for robust energy input.

Technical Specifications

• Model: Meta UX 8 KW
• Rated Power: 8000VA/8000W
• Maximum PV Array Power: 10,000W
• Dimensions: 145 x 438 x 553.6 mm
• Net Weight: 18.4 kg
• LCD Display: Built-in 2.8” color display with slide operation.

Efficiency & Performance

• Peak Efficiency: 93%, ensuring minimal energy loss.
• Operating Temperature: -10°C to 50°C, suitable for various environments.
• Input Voltage: 230 VAC for stable operation.

Warranty

• Product Warranty: 2 years.
• Service Warranty: 3 years.

Comparison with Other Models

• Powerful Output: The UX series offers a higher power capacity (8000W) compared to the iX (7000W) and VX (6000W) series.
• Enhanced PV Input: The 40A input current capability ensures better solar energy handling for large setups.
• Scalability: Supports parallel operation with up to 6 units, making it ideal for industrial or large residential setups.

The Meta UX 8 KW combines cutting-edge technology, high efficiency, and user-friendly design to deliver optimal solar performance. Need help comparing it further or detailing how it fits your requirements? Let me know! 😊
