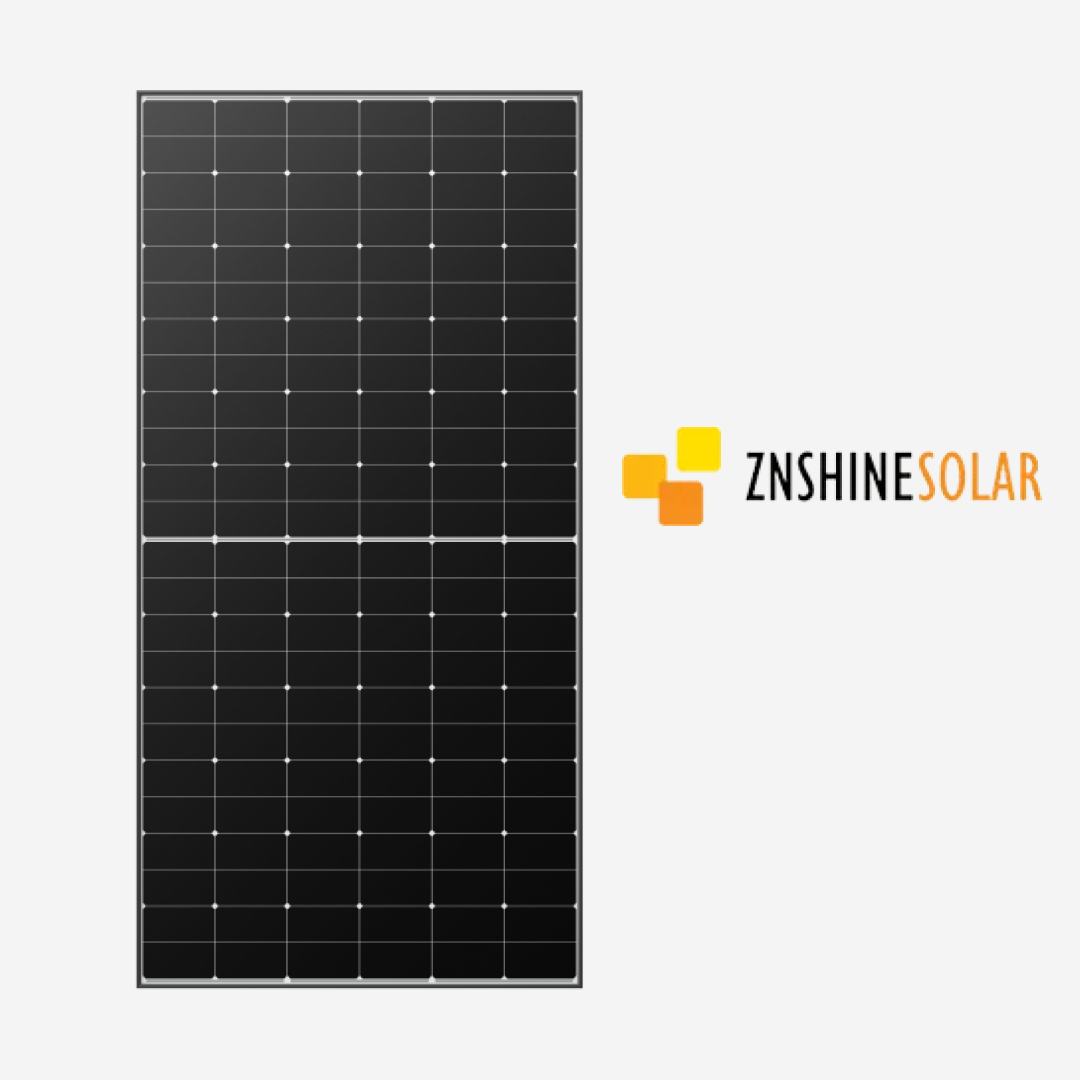

Znshine 585 W 20BB N-Type Topcon Double Glass Solar Panel

Download Product Datasheet

ZNShine 585W N-Type TOPCon Bifacial Double Glass Solar Panel

Key Features

• Advanced N-Type TOPCon technology for high-efficiency solar power generation
• 585W rated power output with module efficiency of up to 22.64%
• Bifacial double-glass design captures additional energy from the rear side
• Up to 25% additional power gain from the back side depending on ground albedo
• 16BB half-cell technology for improved current collection and power output
• Excellent weak-light performance in haze, cloudy conditions, and early morning
• High-transmission AR-coated heat-strengthened glass for improved durability
• Low annual degradation of 0.40% for long-term power stability
• 1500V DC maximum system voltage
• High mechanical load capacity for demanding outdoor installations
• Suitable for residential, commercial, industrial, and utility-scale solar projects

Product Specifications

Product Details

The ZNShine 585W N-Type TOPCon Bifacial Double Glass Solar Panel is a high-efficiency photovoltaic module designed to deliver strong energy generation and reliable long-term performance. Part of the ZXM7-UHLDD144 Series, this 585W module combines N-Type TOPCon technology with 16BB half-cell design to achieve a module efficiency of up to 22.64%.

Its bifacial double-glass construction allows the panel to generate additional electricity from the rear side by utilizing reflected sunlight. Depending on installation conditions and ground albedo, the module can provide up to 25% additional power gain from the rear side.

The panel uses 144 N-Type monocrystalline cells in a 6 × 24 configuration and features 2.0mm + 2.0mm high-transmission, AR-coated heat-strengthened glass. Its IP68-rated junction box with three bypass diodes provides reliable protection for outdoor operation.

The ZNShine 585W also offers excellent weak-illumination response, producing more power in conditions such as haze, cloudy weather, and early morning. With a 1500V DC maximum system voltage, -40°C to +85°C operating temperature range, and strong mechanical construction, it is suitable for demanding solar installations.

The module is backed by a 12-year product warranty and 30-year output warranty, with annual degradation of only 0.40% over the 30-year output warranty period.
