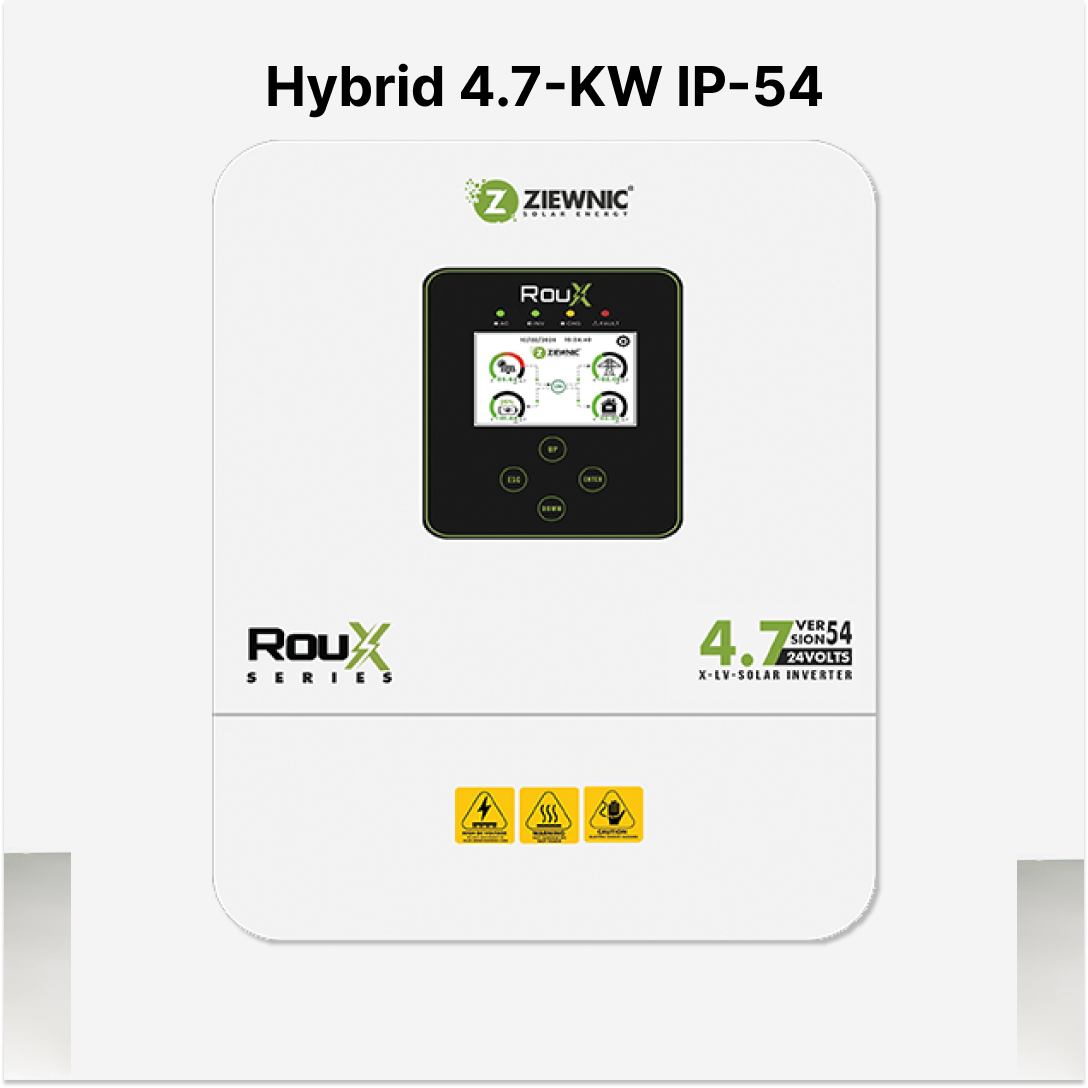

ROUX 4.7KW (PV7000) – IP54 Hybrid Inverter

General Information

• Model: ROUX 4.7KW (PV7000)

• Rated Power (AC): 5000W

• Rated Power (PV Mode): 4700W

• Rated Power (DC Mode): 4500W

• Output Power Factor: 1.0

• Topology: High Frequency Hybrid Inverter

• Protection Grade: IP54 (Dust & Water Resistant)

• Casing: Aluminium

• Display: Colorful Touch LCD with Touch Buttons

• Built-in Wi-Fi (iOS & Android App: Ziewnic Inverter / PV Pro)

• External Light Indicator

• Real-time load power display

• Reverse grid feeding supported

• 98% real-time sharing

• Repairable warranty

AC INPUT

• Rated AC Input: 220/230/240VAC

• Input Voltage Range:

  • 90–280VAC ±3V (Normal Mode)

  • 170–280VAC ±3V (UPS Mode)

• Frequency: 50/60Hz (Auto Detection)

AC OUTPUT

• Output Voltage: 220/230/240VAC ±5%

• Output Frequency: 50/60Hz ±0.1%

• Output Waveform: Pure Sine Wave

• Transfer Time:

  • 10ms (Computer Equipment)

  • 20ms (Home Appliances)

• Peak Power: 8000VA

• Overload Capability:

  • 110–150% load → 10.5 seconds

  • 150–200% load → 5.5 seconds

  • 200% load → 200ms

• Peak Efficiency: >94%

BATTERY SPECIFICATIONS

• Rated Battery Voltage: 24VDC

• Constant Charging Voltage: 28.2VDC (Adjustable)

• Float Charging Voltage: 27VDC (Adjustable)

• Supports:

  • Lithium Battery (with activation & wake-up)

  • GEL Battery

  • VRLA Battery

• Battery Communication: RS485 / CAN

• Max AC Charging Current: 100A

• Max PV Charging Current: 120A

• Max Total Charging Current: 120A

SOLAR (PV) SPECIFICATIONS

• Max PV Input Power: 7000W

• MPPT Tracking Range: 60–500VDC

• Best Vmp Range: 300–400VDC

• Max PV Voltage: 500VDC

• Max PV Input Current: 32A

• MPPT: Dual MPPT

• Solar Charge Controller: 150A class system (overall platform)

PROTECTION & FEATURES

• Output Short Circuit Protection

• Generator Support

• Smart Load Management

• 200% Load Capability

• Safe High Power Design

ENVIRONMENTAL

• Operating Temperature: 0–50°C

• Storage Temperature: -15–60°C

• Humidity: 20–95%

• Noise Level: ≤50dB

DIMENSIONS

• Size (HxWxD): 529 × 411.5 × 111.5 mm
