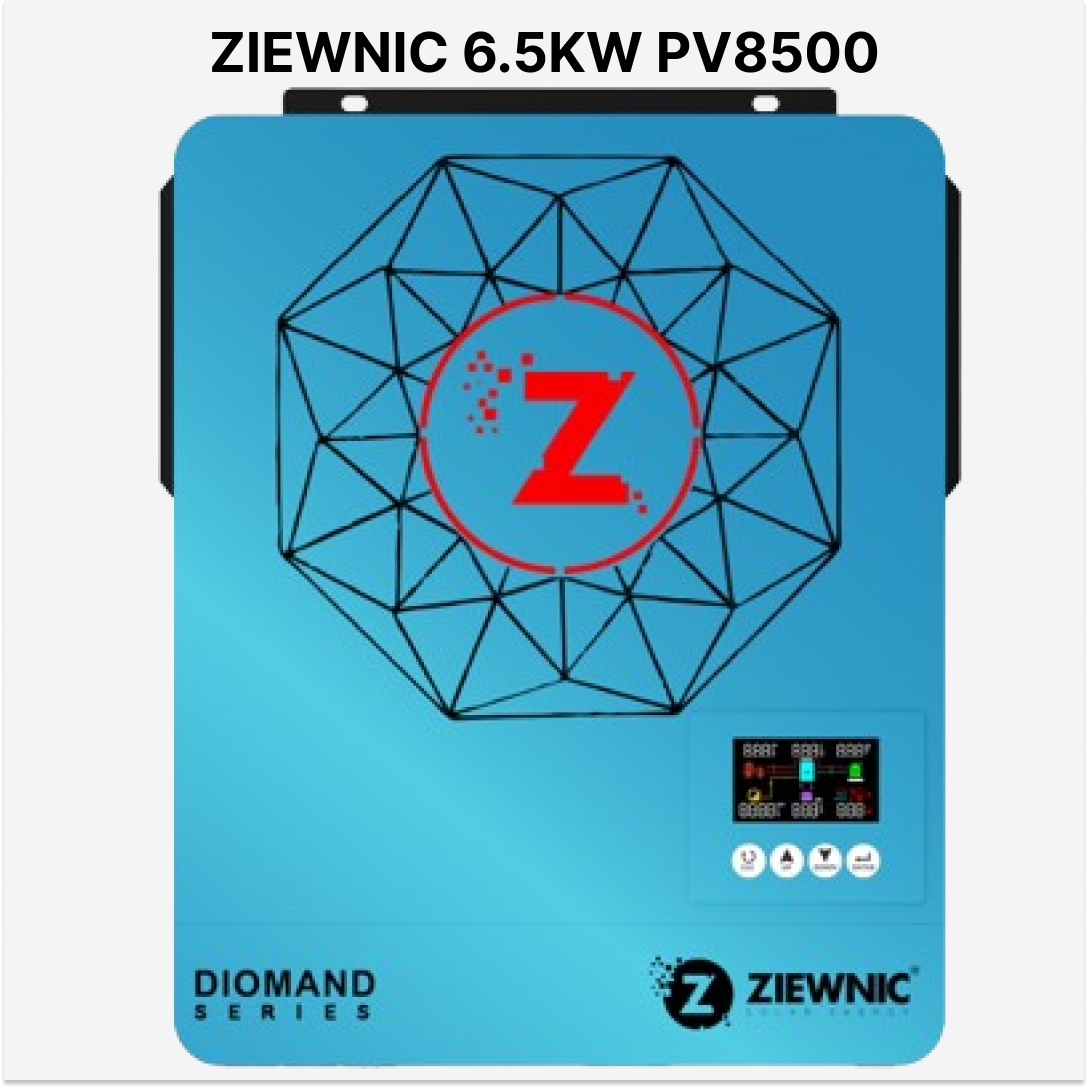

Ziewnic 6.5 KW PV8500 Hybrid Solar Inverter

Key Features:

✅ Hybrid Functionality – Seamless integration with solar, grid, and battery.
✅ Maximum PV Input Power: 8500W – Ideal for large solar systems.
✅ Surge Power: 13000W – Handles high startup loads efficiently.
✅ High Conversion Efficiency:

• 98% (Solar to AC)

• 94% (DC to AC)
  ✅ Smart Load Management:

• Main Load: 6500W

• Secondary Load (Battery Mode): 2160W
  ✅ Multiple MPPT Trackers: Ensures maximum power harvesting.
  ✅ Pure Sine Wave Output: Stable and reliable power for all appliances.
  ✅ Fast Switching: Seamless transition between power sources.
  ✅ Wi-Fi/GPRS Support: Monitor system performance remotely.
  ✅ Strong Build: Works in temperatures from -10°C to 50°C.

Technical Specifications:

🌞 Solar Input (DC):

• Nominal/Max DC Voltage: 360VDC / 500VDC

• Start-up Voltage: 90VDC

• MPPT Voltage Range: 90-450VDC

• Max DC Input Current: 27A

🔌 Grid Tie Operation (AC):

• Output Voltage: 220/230/240 VAC

• Voltage Range: 195.5-253 VAC

• Nominal Output Current: 29A

• Power Factor: >0.99

• Grid Frequency Range: 49-51Hz

🔋 Battery & Charger:

• Battery Voltage: 48VDC

• Max Solar Charging Current: 160A

• Max AC Charging Current: 100A

• Battery Efficiency (DC to AC): 94%

⚡ Off-Grid Mode:

• AC Input Voltage Range: 90-280V or 170-280V

• Auto Restart Voltage: 120-140V

• Max AC Input Current: 40A

• Surge Power: 13000W

📏 Physical & Interface:

• Dimensions: 420mm x 310mm x 110mm

• Weight: 11kg

• Communication Ports: RS232, Wi-Fi, GPRS

🌍 Environment:

• Operating Temperature: -10°C to 50°C

Why Choose the Diamond Series 6.5KW Hybrid Solar Inverter?

✔ High Power Output: 6500W with a peak of 13000W.
✔ Efficient Solar Utilization: 98% solar conversion efficiency.
✔ Smart Load Management: Supports heavy loads and battery backup.
✔ Seamless Switching: Auto-shifts between solar, battery, and grid.
✔ Remote Monitoring: Wi-Fi/GPRS-enabled system tracking.
✔ Reliable & Durable: Works in extreme conditions.

The Diamond Series 6.5KW Hybrid Solar Inverter (5G PV8500) is a powerful, efficient, and smart choice for homes and businesses looking for a high-performance solar power solution. ⚡🔋🌞
