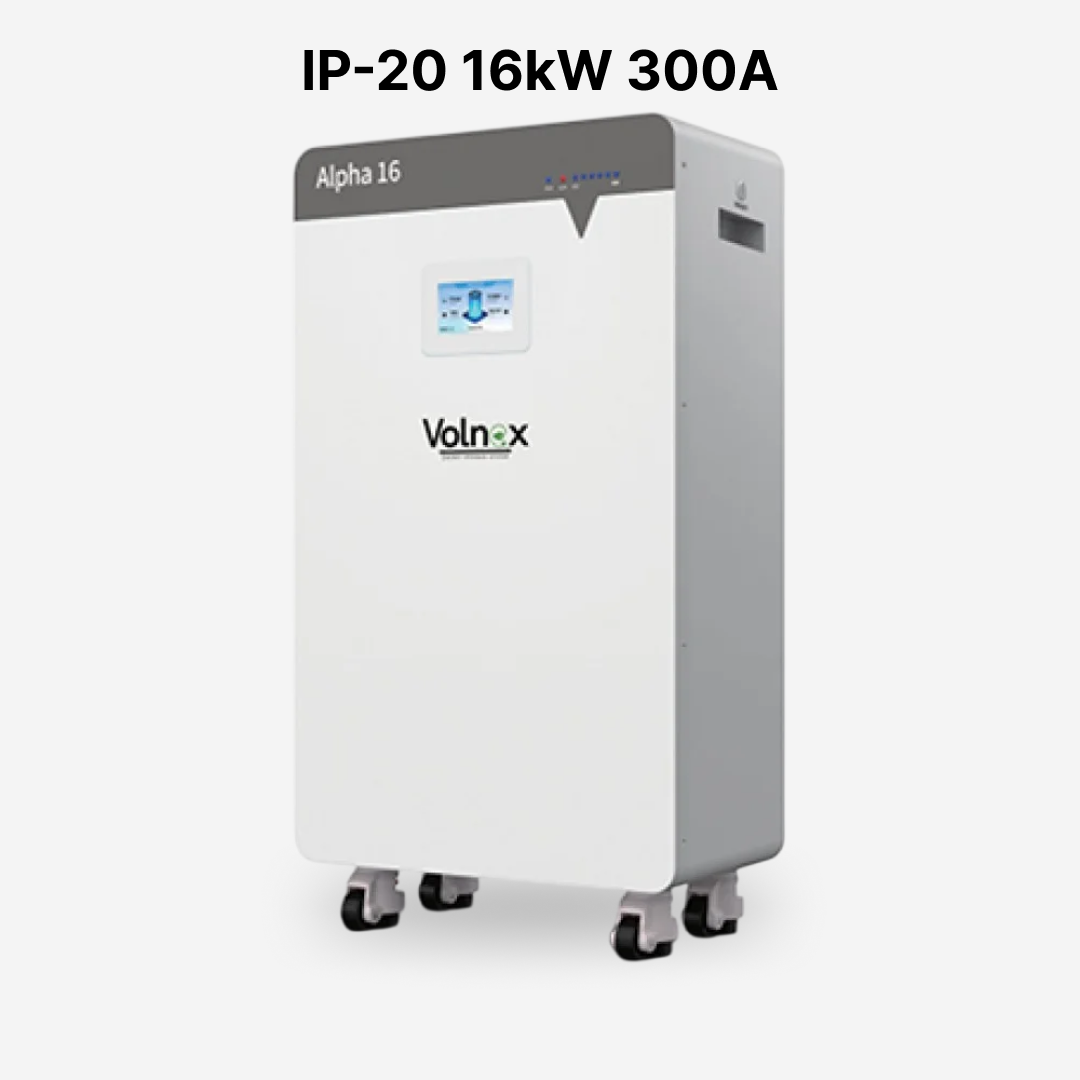

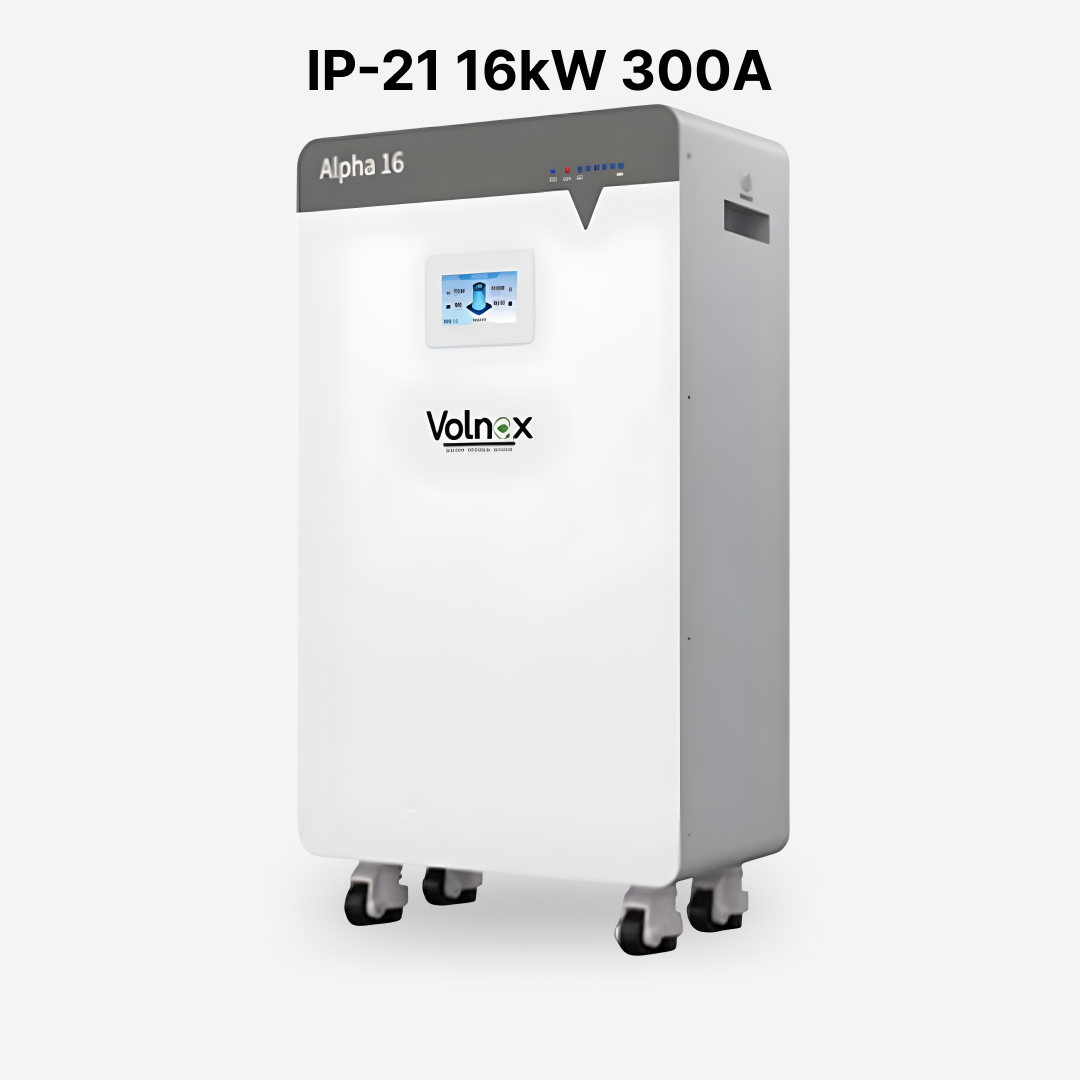

Alpha 16 (16.07kWh)

Battery

• Model: Alpha 16
• Battery Type: LiFePO4 (LFP)
• Usable Energy: 16,076.8Wh (16.07kWh)
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 56.16V
• Max Charge/Discharge Current: 300A

Communication

• CAN
• RS485
• RS232
• Wi-Fi

Display

• LCD Display
• LED Indicators
• SOC Indicator

Physical

• Dimensions: 485 × 245 × 785 mm
• Weight: 122kg
• Installation: Floor Mount
• Protection Rating: IP20

Performance

• Cycle Life: 6000 Cycles
• Parallel Support: Up to 15 Batteries
• Operating Temperature:
  • Charge: 0°C to 50°C
  • Discharge: -15°C to 50°C

Warranty

• 10 Years
