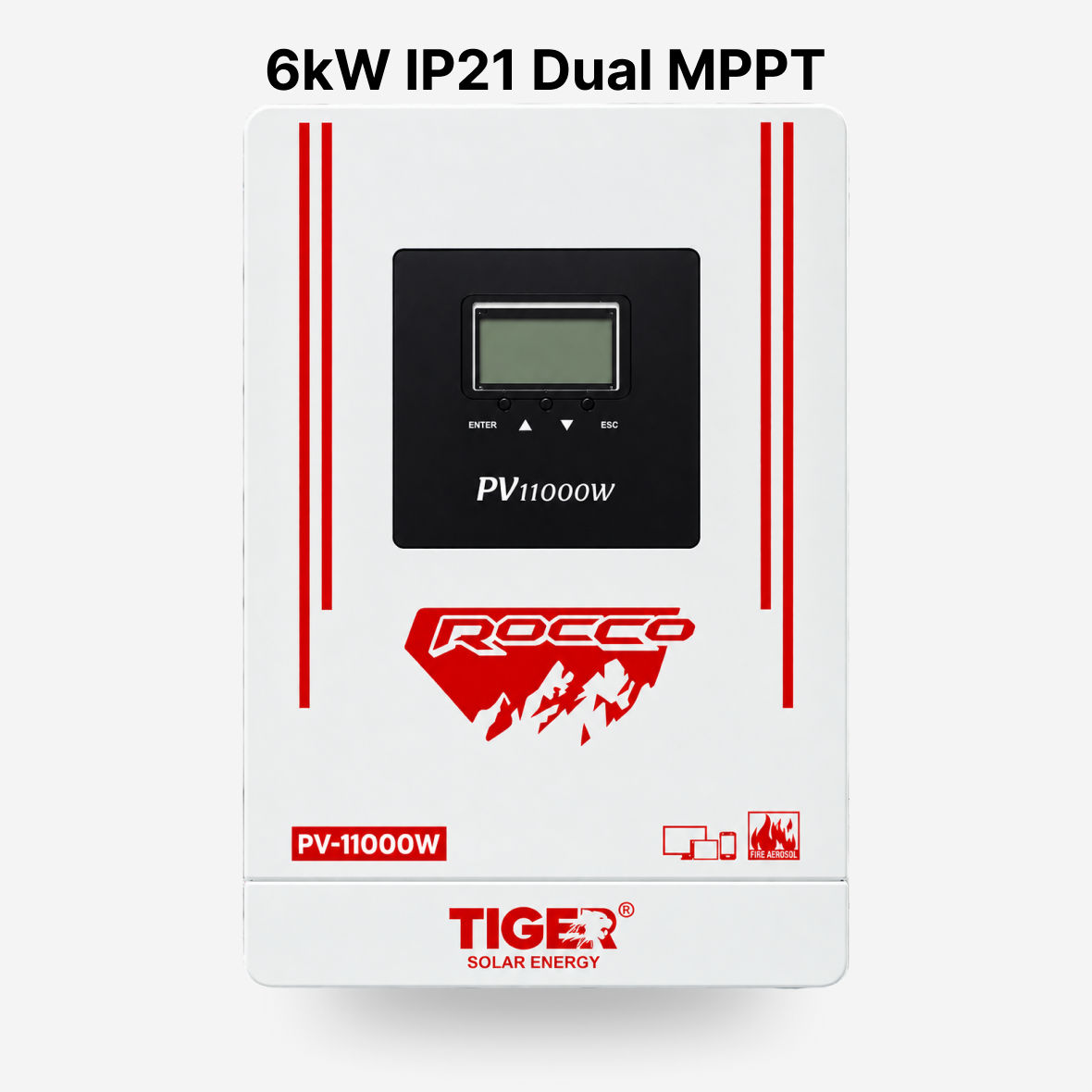

Tiger T11000+ Strong Series - PV11000 6kW Solar Inverter

Tiger T11000+ Strong Series – 6kW Solar Inverter with 11kW PV Input

The Tiger T11000+ Strong Series is a 6kW solar inverter designed for homes and small commercial solar systems. It accepts up to 11,000W of solar panel power, so you can install more panels than the inverter’s rated capacity. Dual MPPT technology lets you connect two separate panel groups, and the wide 60V to 500V DC input range makes it easier to plan your panel setup.

Key Features

• 6kW rated capacity
• 11,000W maximum PV input (5500W x 2)
• Dual MPPT technology
• Wide PV input range of 60V to 500V DC
• 250V to 450V full-load MPPT range
• 18A maximum PV input current per channel
• 230V AC input with 50/60Hz operating frequency

Specifications

• Brand: Tiger
• Series: Strong Series
• Model: T11000+
• Rated Capacity: 6kW
• Maximum PV Input Power: 11,000W
• PV Input Configuration: 5500W x 2
• MPPT: Dual MPPT
• PV Voltage Range: 60V to 500V DC
• Maximum PV Voltage: 500V DC
• Nominal PV Voltage: 250V DC
• Full-Load MPPT Range: 250V to 450V DC
• Maximum PV Current: 18A per channel
• AC Input Voltage: 230V AC
• Maximum AC Input Current: 43.5A
• Operating Frequency: 50/60Hz
• Operating Temperature: -10°C to 50°C
