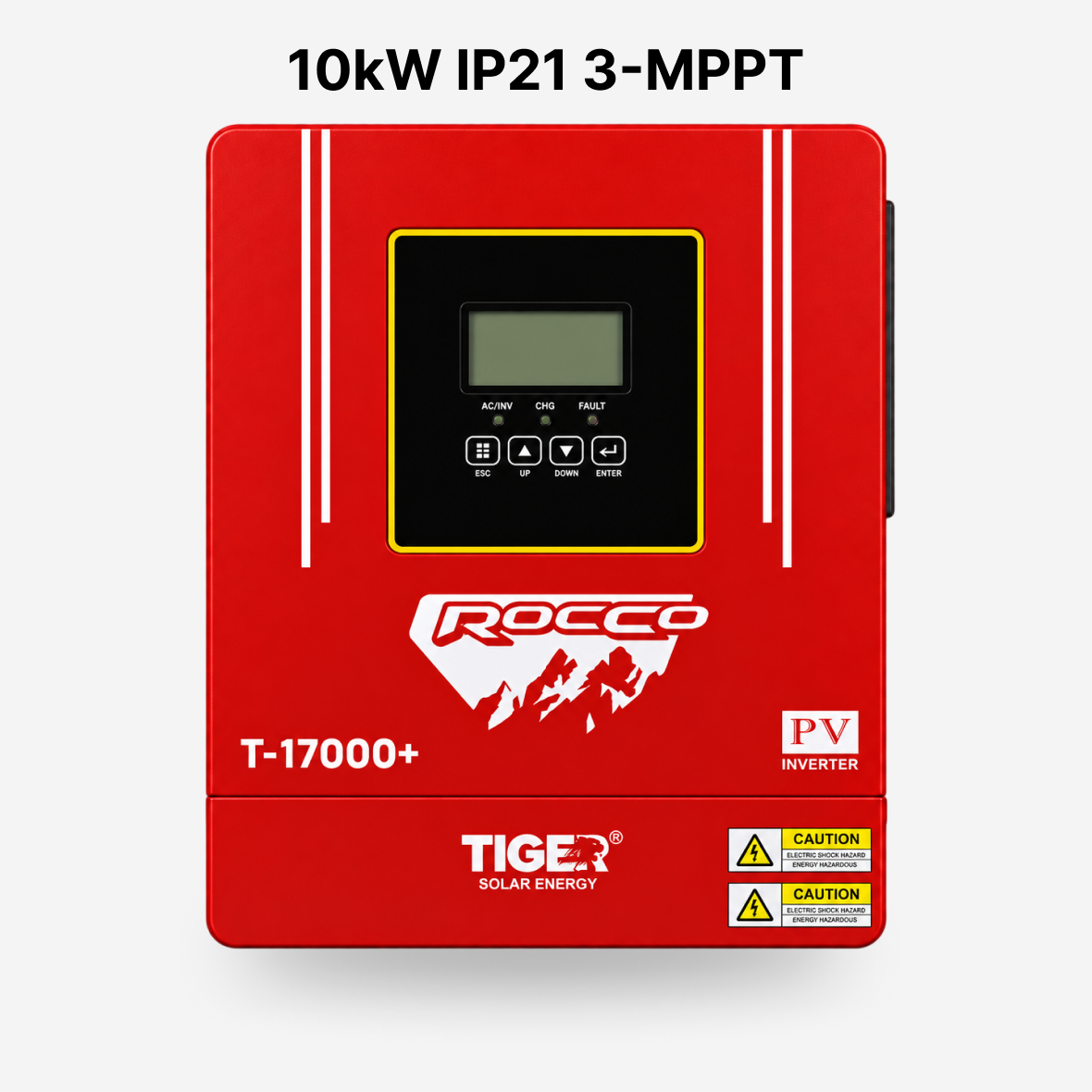

Tiger Rocco T-17000+ 10kW With 3-Mppts Solar Inverter

Tiger Rocco T-17000+ 10kW Solar Inverter – 17kW PV Input with 3 MPPT:

The Tiger Rocco T-17000+ is a 10kW solar inverter designed for homes, commercial spaces, and large solar systems. It accepts up to 17,000W of solar panel power, so you can install more panels than the inverter’s rated capacity. Three independent MPPT channels let you connect separate panel groups, and the wide 60V to 500V DC input range makes it easier to plan your panel setup.

Key Features

• 10kW rated capacity
• 17,000W maximum PV input
• 3 MPPT channels
• Wide PV input range of 60V to 500V DC
• 250V to 450V full-load MPPT range
• 18A maximum PV input current per channel
• 230V AC input with 50/60Hz operating frequency

Specifications

• Brand: Tiger
• Series: Rocco
• Model: T-17000+ (PV-17000W)
• Color: Red
• Inverter Rating: 10kW
• Maximum PV Input Power: 17,000W
• Number of MPPT Channels: 3
• PV Input Voltage Range: 60V to 500V DC
• Maximum PV Voltage: 500V DC
• Nominal PV Voltage: 250V DC
• Full-Load MPPT Range: 250V to 450V DC
• Maximum PV Current: 18A per channel
• AC Input Voltage: 230V AC
• Maximum AC Input Current: 45A
• Operating Frequency: 50/60Hz
• Operating Temperature: -10°C to 50°C
