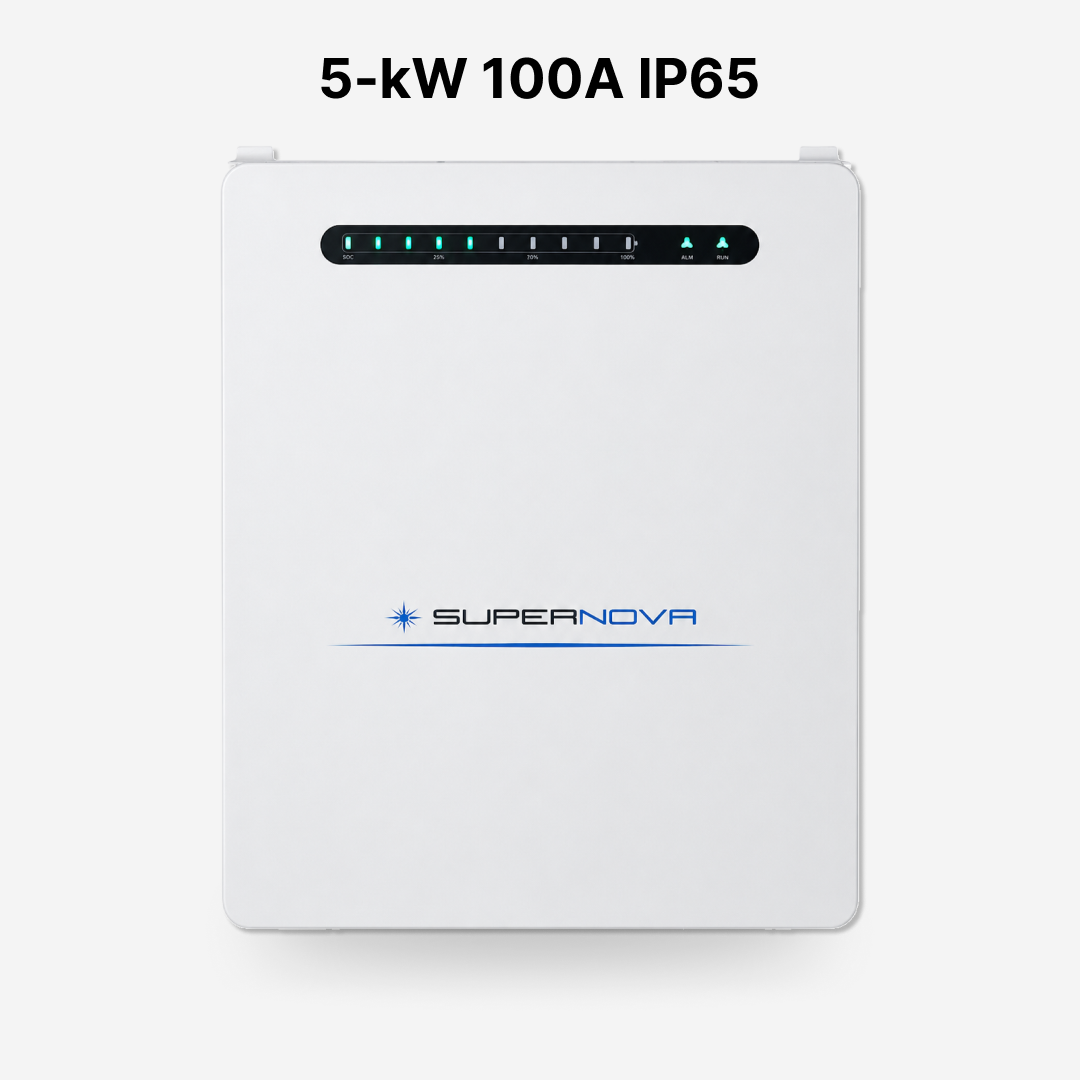

SuperNova 51.2v 100A With 6000LC Lithium Battery

SuperNova 51.2v 100A With 6000LC Lithium Battery

Download Product Datasheet Supernet LW51100E - 51.2V 100Ah 5120Wh LiFePO4 Lithium Battery (IP65, 6000+ Cycles) Key Features:...
Vendor: SuperNova
Availability: In stock
Product type: Lithium Battery
Rs.225,000.00
Rs.240,000.00
Rs.225,000.00
Please hurry! Only 25 left in stock
Subtotal: Rs.225,000.00
10 customers are viewing this product

Shipping

You have to pay Partial Payment for order confirmation

Estimated Shipping Time: 24 to 72 Hours

100% Original & Official Product

SuperNova 51.2v 100A With 6000LC Lithium Battery

SuperNova 51.2v 100A With 6000LC Lithium Battery

Rs.240,000.00 Rs.225,000.00
SuperNova 51.2v 100A With 6000LC Lithium Battery

SuperNova 51.2v 100A With 6000LC Lithium Battery

Rs.240,000.00 Rs.225,000.00
Description

Download Product Datasheet


Supernet LW51100E - 51.2V 100Ah 5120Wh LiFePO4 Lithium Battery (IP65, 6000+ Cycles)

Key Features:

  • A-grade brand new prismatic LiFePO4 cells

  • 6000 cycles @ 80% DOD (25°C, 0.5C)

  • Built-in overcharge, over-discharge, over-temperature, low-temperature, overcurrent and short circuit protection
  • LED display screen to monitor cell SOC, voltage, temperature and alarm status
  • Max 32 battery packs can be connected in parallel
  • Compatible with protocols of major inverter manufacturers
  • Metal case with excellent heat dissipation for added safety

Technical Specifications:

Electrical Parameters

Spec Value
Battery Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Pack Mode 16S1P
Charge Cut-off Voltage 57.6V
Discharge Cut-off Voltage 41.6V
Max. Charge Current 100A
Max. Discharge Current 100A
Recommended Discharge Current 50A
Recommended Discharge Depth 80%
Cycle Life >6000 cycles (25°C, 0.5C, 80% DOD)

Function

Spec Value
Communication Built-in WiFi, RS485, CAN
Display LED
Mounting Wall-mounted & top wiring

Environmental Parameters

Spec Value
Charge Temperature 0°C to +50°C
Discharge Temperature -20°C to +50°C
Optimal Storage Temperature 5°C to +35°C
Relative Humidity 40%–80%
Ingress Protection IP65

Mechanical Parameters

Spec Value
Terminal M8 / quick-connect
Dimensions (W x H x D) 490 x 520 x 149 mm (not including bracket)
Net Weight 45.7 ± 0.5 kg

Certification

  • UN38.3
  • MSDS
