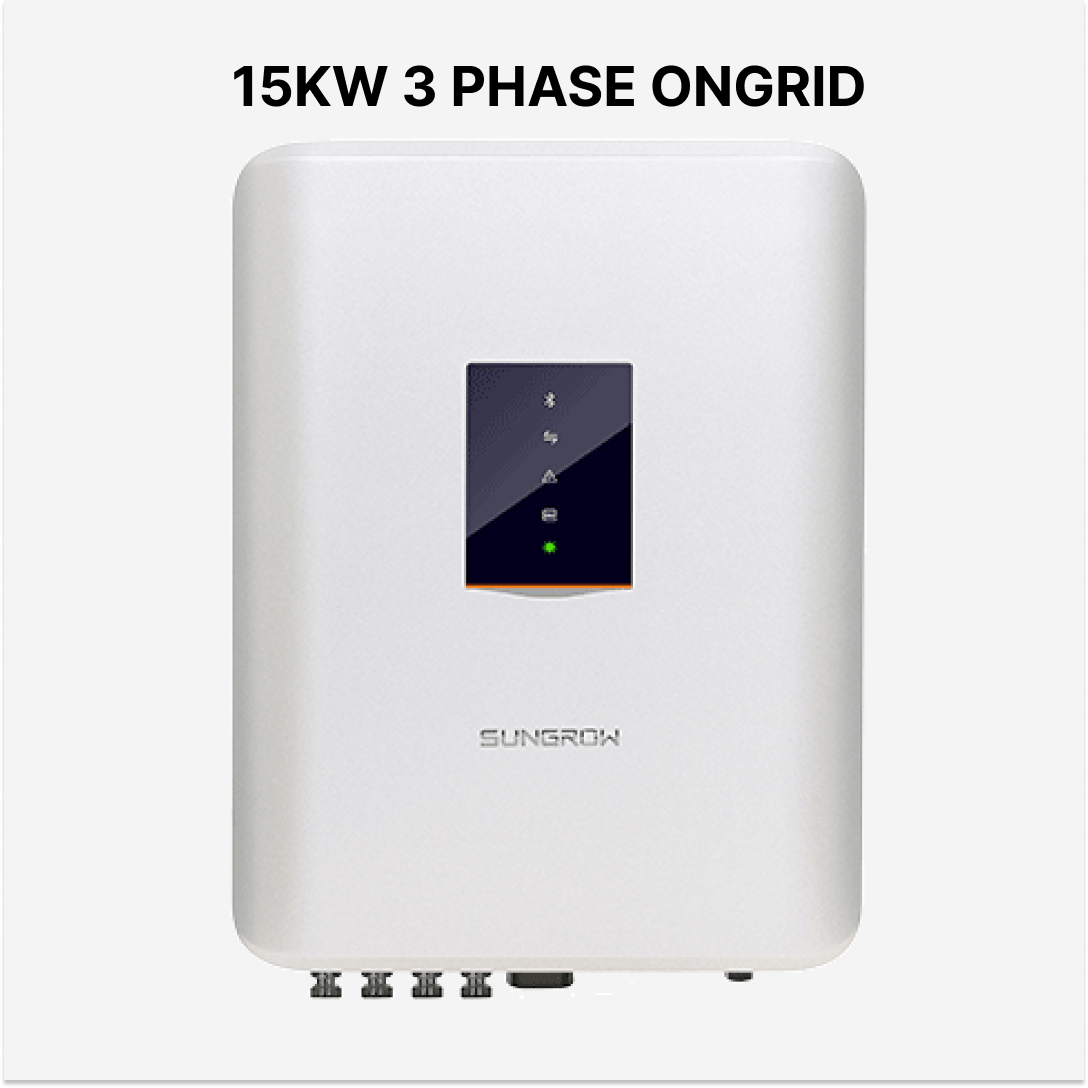

The Sungrow 15 KW On-grid Solar Inverter (SG15KTL-M) is a high-performance solar inverter designed for residential, commercial, and small-scale industrial applications. Here's a detailed overview:
Key Features
-
High Yield:
- Industry-leading efficiency: 98.6%.
-
Flexible PV String Configurations: Supports a DC/AC ratio of up to 1.3 for maximum solar energy utilization.
-
Smart Management:
-
Online Monitoring: Manage and monitor system performance via a mobile app or web interface.
-
Firmware Updates: Over-the-air updates ensure optimal performance.
-
Sungrow Smart Meter: Provides transparent energy flow insights with accurate dynamic feed-in control.
-
Ease of Use:
-
Compact & Lightweight: Weighs only 24 kg, designed for easy installation.
-
User-Friendly Design: Push-in connectors save installation time, and the mounting plate has a built-in level for precision.
-
Safety and Durability:
- Built-in surge arresters and residual current protection ensure system safety.
- High anti-corrosion rating (C5), ideal for various environmental conditions.
- IP65-rated protection for dust and water resistance.
Technical Specifications
General Specifications:
-
Maximum Efficiency: 98.6%.
-
Maximum PV Input Voltage: 1100 V.
-
MPP Voltage Range: 200-1000 V.
-
Nominal Input Voltage: 600 V.
-
Operating Temperature: -25°C to 60°C.
AC Output:
-
Power Output: 15000 VA (at 45°C).
-
Nominal AC Voltage: 600 V.
-
Dimensions: 370 x 485 x 210 mm.
-
Weight: 24 kg.
Safety & Standards:
- Equipped with built-in surge arresters.
- High-level corrosion resistance with a C5 rating.
- Compliance with international standards.
Applications
- Ideal for on-grid solar solutions in residential homes, businesses, and small commercial spaces.
- Supports multi-string installations for rooftops with varying orientations.
