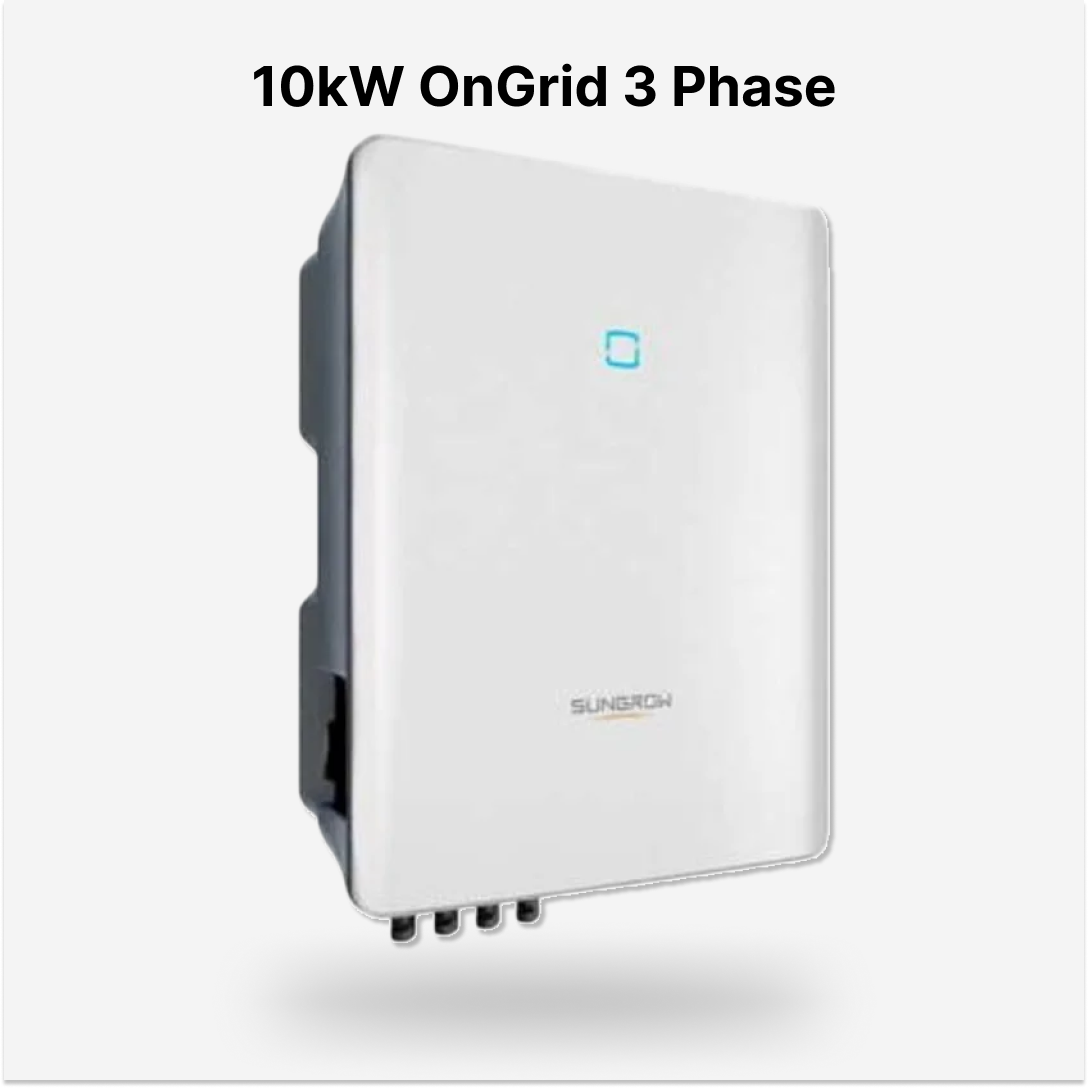

SUNGROW 10KW solar inverter ongrid

The Sungrow 10kW SG10KTL-M/SG12KTL-M is an advanced on-grid inverter designed for high performance, ease of maintenance, and optimal energy yield. Here's a comprehensive breakdown of its key features and specifications:

Key Features

1. High Yield:

   • Max Efficiency: 98.6%, ensuring minimal energy loss.
   • European Efficiency: 98.1%.
   • Equipped with 2 MPPTs, allowing compatibility with diverse PV orientations for better solar energy harvesting.

2. Easy Maintenance:

   • String Current Monitoring: Enables fast troubleshooting.
   • Compact and Lightweight: Designed for single-person installation.

3. Cost-Effective Design:

   • Integrated DC and AC SPD: Reduces system cost.
   • Supports a Max DC/AC ratio of 1.2 for enhanced solar utilization.

4. Grid Support:

   • Compliance with CE, IEC 62109-1/-2, G59/3, VDE 0126-1-1/4105 standards.
   • Features active/reactive power control and power ramp rate control for grid stability.

5. Durable and Reliable:

   • IP65 Protection: Ensures resistance against dust and water for outdoor installations.
   • Operates at high altitudes (up to 4000m) and in temperatures ranging from -25°C to 60°C.

Specifications

Input (DC):

Output (AC):

Efficiency:

• Maximum Efficiency: 98.6%.
• European Efficiency: 98.1%.

General Data:

• Dimensions (WHD): 370 x 485 x 160 mm.
• Weight: 20 kg.
• Cooling Method: Natural cooling.
• Protection: DC reverse connection, AC short circuit, leakage current, overvoltage protection.

Communication:

• Interfaces: LED, Bluetooth, App, RS485.
• Connection Types: MC4 for DC, Plug-and-play for AC
