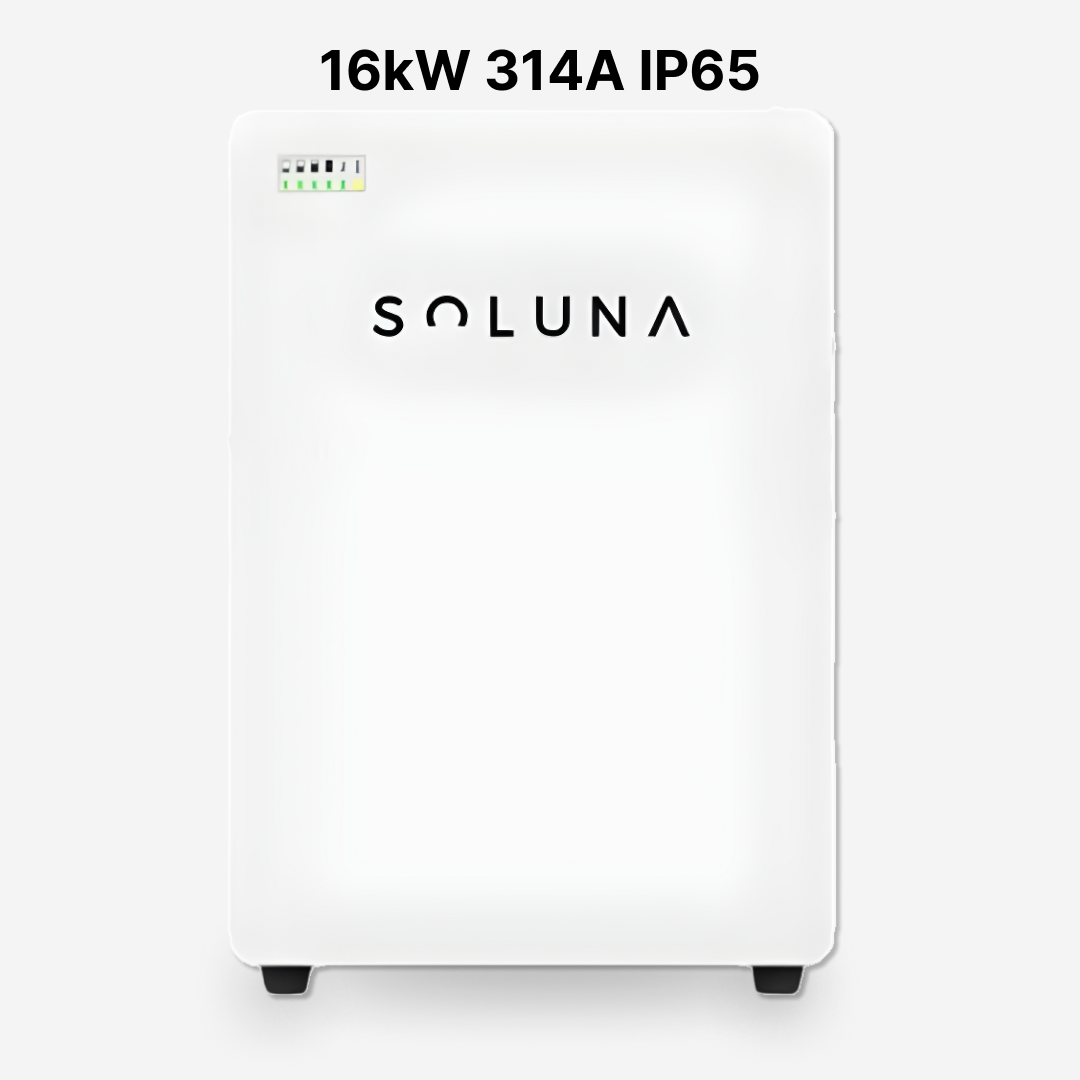

Soluna Venus 16K Pack LV Battery:
Model: Venus 16K Pack LV
General Specifications
- Battery Type: LiFePO4 (LFP)
- Total Energy Capacity: 16.07kWh
- Usable Energy Capacity: 12.85kWh
- Nominal Capacity: 314Ah
- Nominal Voltage: 51.2V
- Voltage Range: 44.8V–56.8V
- Recommended Depth of Discharge (DoD): 80%
- Maximum Depth of Discharge (DoD): 90%
- Cycle Life: ≥8000 Cycles @ 25°C
Charge & Discharge Specifications
- Charge/Discharge Current: 150A
- Charge/Discharge Power: 7.68kW
- Maximum Charge/Discharge Current: 160A / 220A
- Maximum Charge/Discharge Power: 8.2kW / 11.2kW
BMS & Protection
- Integrated Intelligent BMS
- DC Disconnect: Contactor / Fuse
- Monitoring Parameters:
- System Voltage
- System Current
- Cell Voltage
- Cell Temperature
- SOC
- SOH
- Communication: CAN
Scalability
- Parallel Support: Up to 30 Batteries
- Maximum Storage Capacity: 480kWh
Physical Specifications
- Height: 850mm
- Width: 545mm
- Depth: 220mm
- Weight: 127kg
- Installation: Floor Mounted / Wall Mounted
- Indoor / Outdoor Installation
Environmental Specifications
- Operating Temperature: -10°C to 50°C
- Recommended Operating Temperature: 15°C to 30°C
- Recommended Storage Temperature: -20°C to 60°C
- Humidity: 5%–95%
- Maximum Altitude: 2000m
- Cooling Method: Natural Convection
Protection & Certification
- Ingress Protection: IP65
- Transportation Certification: UN38.3
Warranty
- Standard Warranty: 10 Years
- Performance Warranty: 10 Years
