Solis Storage 5kW With 8000 LifeCycles Lithium Battery

Download Product Datasheet

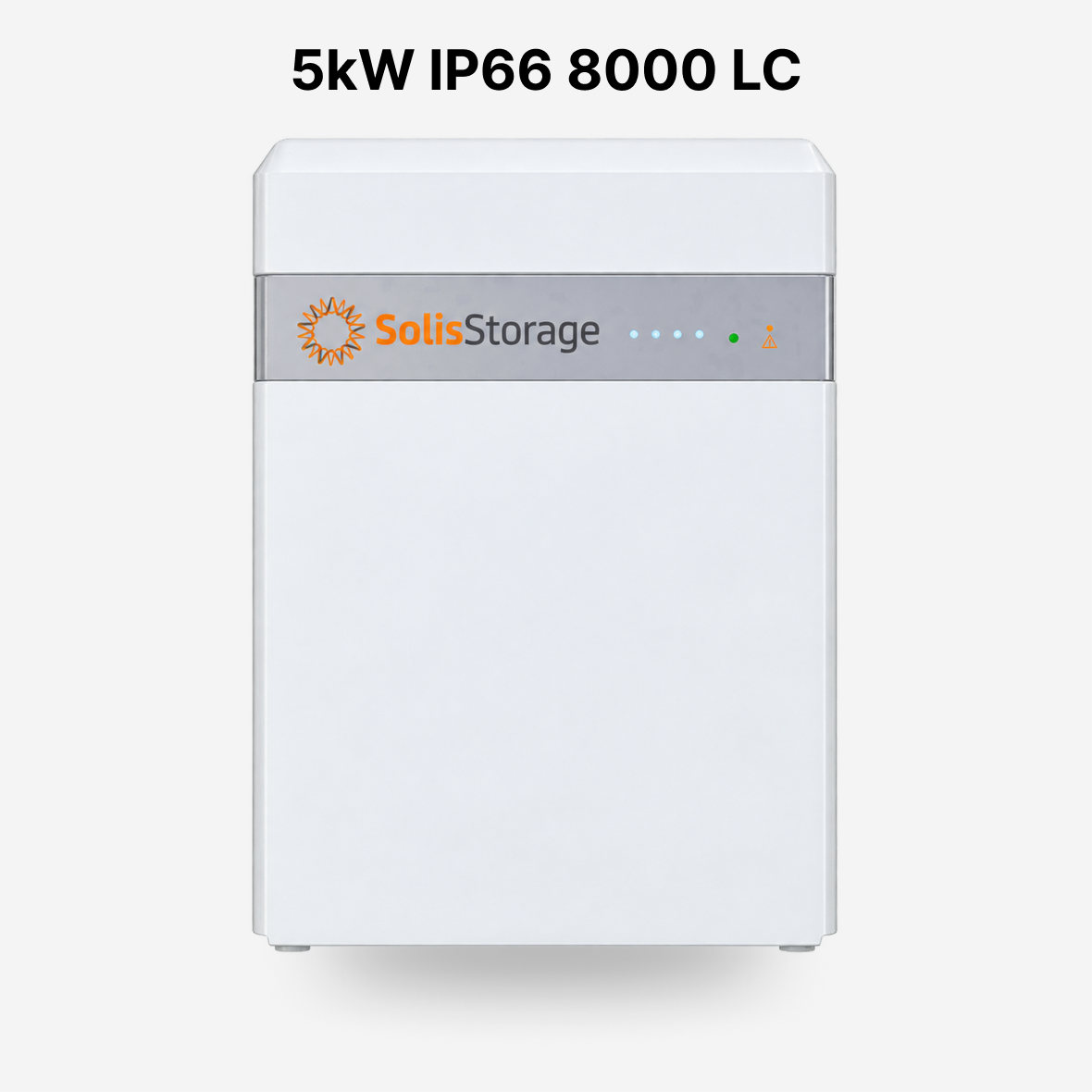

Solis IntelliHome 5kWh – Low-Voltage LiFePO4 Wall/Floor-Mounted Energy Storage System:

The Solis IntelliHome 5kWh is a slim, low-voltage LiFePO4 battery for home solar energy storage. It can be mounted on a wall or placed on the floor, and its IP66 rating and C5M anti-corrosion protection make it suitable for indoor or outdoor installation. Up to 8 units can be connected in parallel to increase capacity. It uses A+ grade cells with a cycle life of 8000 cycles or more.

Key Features

• A+ grade LiFePO4 cells with 8000+ cycle life
• Five-layer hardware redundancy safety protection
• Built-in fire protection, aerogel thermal insulation plate, and explosion release valves
• IP66 protection and C5M anti-corrosion rating
• Optional intelligent heating for operation down to -20°C
• Wall-mounted or floor-standing installation
• Up to 8 units in parallel
• Full 100 percent depth of discharge
• CAN/RS485 communication
• SOC and status indicators

Specifications

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Energy: 5kWh
• Cell Capacity: 100Ah
• Operating Voltage: 44.8V to 57.6V
• Recommended Charge/Discharge Current: 50A (0.5C)
• Maximum Discharge Current: 100A
• Depth of Discharge: Up to 100 percent
• Cycle Life: 8000 cycles or more
• Display: SOC indicator and status indicator
• Communication: CAN / RS485
• Dimensions (W x H x D): 470 x 655 x 175 mm
• Weight: 47kg
• Cooling: Natural convection
• Protection Rating: IP66
• Anti-Corrosion Class: C5M
• Operating Temperature: -20°C to 55°C (with smart heating function)
• Storage Temperature: -10°C to 45°C
• Humidity: 5 percent to 95 percent
• Maximum Operating Altitude: 4000m
• Installation: Floor-standing or wall-mounted
• Expansion: Up to 8 units in parallel
• Protections: Over/under voltage, overcurrent, over/under temperature, DC breaker, DC overcurrent fuses
• Compatible Inverters: Selected Solis hybrid inverters (S6-EH1P, S6-EH2P, S6-EH3P, S5-EH1P, S6-EA1P, and S6-EO1P series)
• Certifications: IEC 62619, IEC 63056, UN 38.3, VDE 2510-50, ISO 13849, IEC 60529, RoHS, REACH
