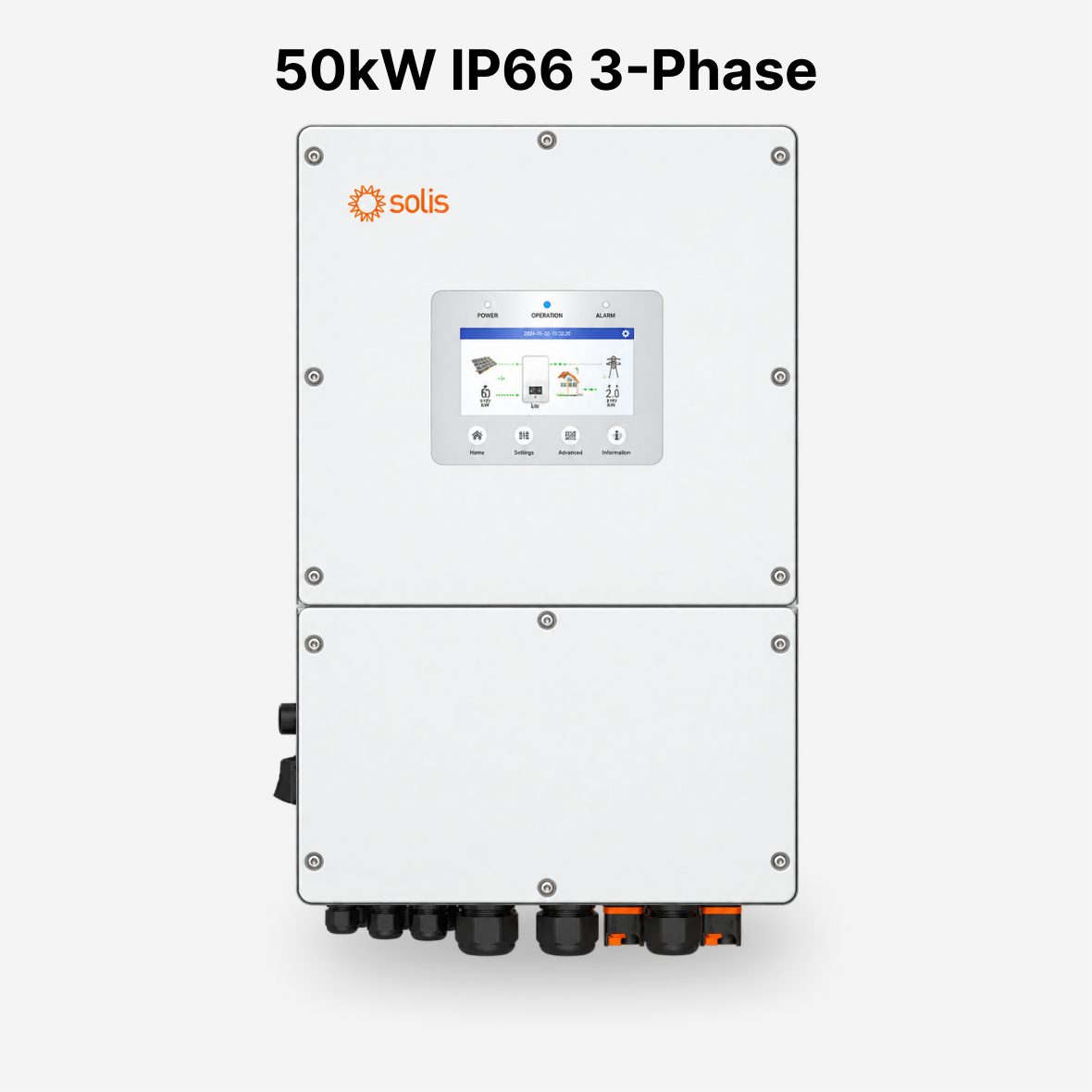

Solis S6-EH3P50K-H – 50kW Three-Phase High-Voltage Hybrid Solar Inverter

The Solis S6-EH3P50K-H is a 50kW three-phase high-voltage hybrid inverter designed for large residential, commercial, and industrial solar systems. It has 4 MPPT trackers and accepts up to 96kW of usable solar power. Two independently controlled battery ports connect to high-voltage lithium-ion batteries. It can also run as a grid-tied inverter without batteries, and up to 6 units can be connected in parallel for larger systems. The IP66 rating allows indoor or outdoor installation.

Key Features

• 4 MPPT trackers with 8 strings at 20A each
• Up to 96kW usable PV input (100kW recommended maximum array size)
• Two independently controlled battery ports, 140A total (70A + 70A) charge and discharge
• Backup output of 1.6 times rated power for 2 seconds
• Backup switch time under 10ms
• Parallel operation of up to 6 units for on-grid and off-grid use
• Works as a grid-tied inverter without batteries when on-grid
• Generator connection with automatic on/off control
• Peak shaving control in both self-use and generator modes
• Type II surge protection on both DC and AC sides
• Built-in AFCI arc-fault protection (activation required)
• IP66 protection
• LCD display with Bluetooth and app monitoring

Specifications

• Rated Output Power: 50kW
• Maximum Apparent Output Power: 50kVA
• Recommended Maximum PV Array Size: 100kW
• Maximum Usable PV Input Power: 96kW
• Number of MPPT Trackers: 4 (8 strings)
• Maximum Input Current: 4 x 40A
• MPPT Voltage Range: 150V to 850V
• Maximum DC Input Voltage: 1000V
• Rated DC Voltage: 600V
• Start-up Voltage: 180V
• Battery Type: Lithium-ion
• Battery Voltage Range: 150V to 800V
• Number of Battery Inputs: 2
• Maximum Charge/Discharge Power: 55kW (40kW per input)
• Maximum Charge/Discharge Current: 70A x 2 (supports parallel 140A input)
• AC Output Voltage: 3/N/PE, 220/380V or 230/400V
• Frequency: 50Hz
• Rated Grid Output Current: 76A / 72.2A (380V / 400V)
• Maximum AC Passthrough Current: 152A / 144.4A
• Generator Input: 50kW maximum, 76A / 72.2A
• Backup Rated Output Power: 50kW
• Power Factor: Above 0.99 (0.8 leading to 0.8 lagging)
• Grid Current Distortion (THDi): Less than 3 percent
• Backup Voltage Distortion (THDv): Less than 2 percent
• Maximum Efficiency: 97.8 percent
• European Efficiency: 97.4 percent
• Battery Charged by PV Maximum Efficiency: 98.5 percent
• Battery Charged/Discharged to AC Maximum Efficiency: 97.5 percent
• Protection: Anti-islanding, output overcurrent, short circuit, DC reverse polarity, DC Type II and AC Type II surge protection
• Dimensions (W x H x D): 530 x 880 x 290 mm
• Weight: 73kg
• Topology: Transformerless
• Night Self-Consumption: Less than 25W
• Operating Temperature: -25°C to +60°C
• Humidity: 0 to 95 percent
• Cooling: Intelligent redundant fan cooling
• Protection Rating: IP66
• Maximum Operating Altitude: 4000m
• PV Connection: MC4 quick connection plug
• Battery Connection: Terminal connector
• AC Connection: Terminal block
• Display: LCD with Bluetooth and app
• Communication: CAN, RS485, Ethernet (optional Wi-Fi, cellular, LAN)
