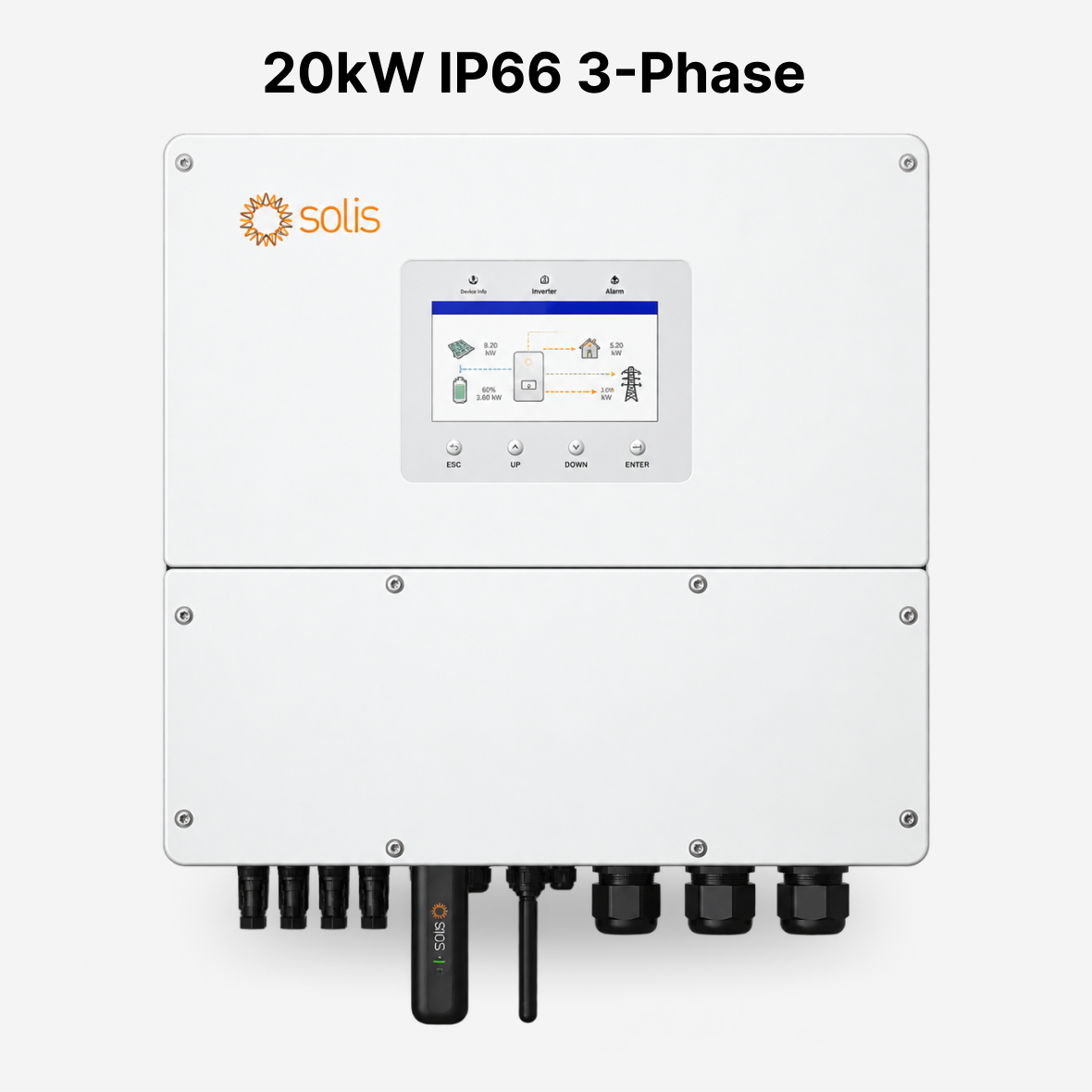

Solis S6-EH3P20K-H – 20kW Three-Phase High-Voltage Hybrid Solar Inverter

The Solis S6-EH3P20K-H is a 20kW three-phase high-voltage hybrid inverter designed for large homes and commercial solar and storage systems. It has 4 MPPT trackers and accepts up to 32kW of usable solar power. It connects to high-voltage lithium-ion batteries and can use a generator to extend backup time during a power outage. The IP66 rating allows indoor or outdoor installation.

Key Features

• 4 MPPT trackers with up to 20A input current per tracker
• Up to 32kW usable PV input (40kW recommended maximum array size)
• Works with high-voltage lithium-ion batteries (120V to 800V)
• Dual backup ports for separate control of critical and non-critical loads
• Generator compatible to extend backup time during an outage
• AC voltage detection on grid and generator outputs to prevent reverse current damage to generators
• Backup output of 1.6 times rated power for 10 seconds
• Backup switch time under 10ms
• Peak shaving support
• Heat pump compatible (SG Ready)
• Handles unbalanced and half-wave loads on both grid and backup ports
• Integrated DC switch
• IP66 protection
• 7-inch LCD display with Bluetooth and app monitoring

Specifications

• Rated Output Power: 20kW
• Maximum Apparent Output Power: 20kVA
• Recommended Maximum PV Array Size: 40kW
• Maximum Usable PV Input Power: 32kW
• Number of MPPT Trackers: 4 (4 strings)
• Maximum Input Current: 4 x 20A
• MPPT Voltage Range: 200V to 850V
• Maximum DC Input Voltage: 1000V
• Rated DC Voltage: 600V
• Start-up Voltage: 160V
• Battery Type: Lithium-ion
• Battery Voltage Range: 120V to 800V
• Maximum Charge/Discharge Power: 20kW
• Maximum Charge/Discharge Current: 50A
• AC Output Voltage: 3/N/PE, 220/380V or 230/400V
• Frequency: 50Hz / 60Hz
• Rated Grid Output Current: 30.4A (380V) / 28.9A (400V)
• Maximum AC Input Current from Grid: 45.6A (380V) / 43.3A (400V)
• Generator Input: 20kW maximum, 30.4A / 28.9A
• Power Factor: Above 0.99 (0.8 leading to 0.8 lagging)
• Grid Current Distortion (THDi): Less than 3 percent
• Backup Rated Output Power: 20kW
• Backup Voltage Distortion (THDv): Less than 3 percent
• Maximum Phase Imbalance: 100 percent
• Maximum Power per Phase: 40 percent of rated power
• Maximum Efficiency: 97.7 percent
• European Efficiency: 97.5 percent
• Battery Charged by PV Maximum Efficiency: 98.5 percent
• Battery Charged/Discharged to AC Maximum Efficiency: 97.2 percent
• Protection: Anti-islanding, output overcurrent, short circuit, DC reverse polarity, PV overvoltage, battery reverse polarity, integrated DC switch
• Arc-Fault Protection (AFCI 2.0): Optional
• Dimensions (W x H x D): 563 x 546 x 250 mm
• Weight: 35.2kg
• Topology: Transformerless
• Night Self-Consumption: Less than 25W
• Operating Temperature: -25°C to +60°C
• Humidity: 0 to 95 percent
• Noise: Less than 65 dB(A)
• Cooling: Intelligent fan cooling
• Protection Rating: IP66
• Maximum Operating Altitude: 4000m
• PV Connection: MC4 connector
• Battery and AC Connection: OT terminal
• Display: 7.0 inch LCD with Bluetooth and app
• Communication: CAN, RS485, Ethernet (optional Wi-Fi, cellular, LAN)
