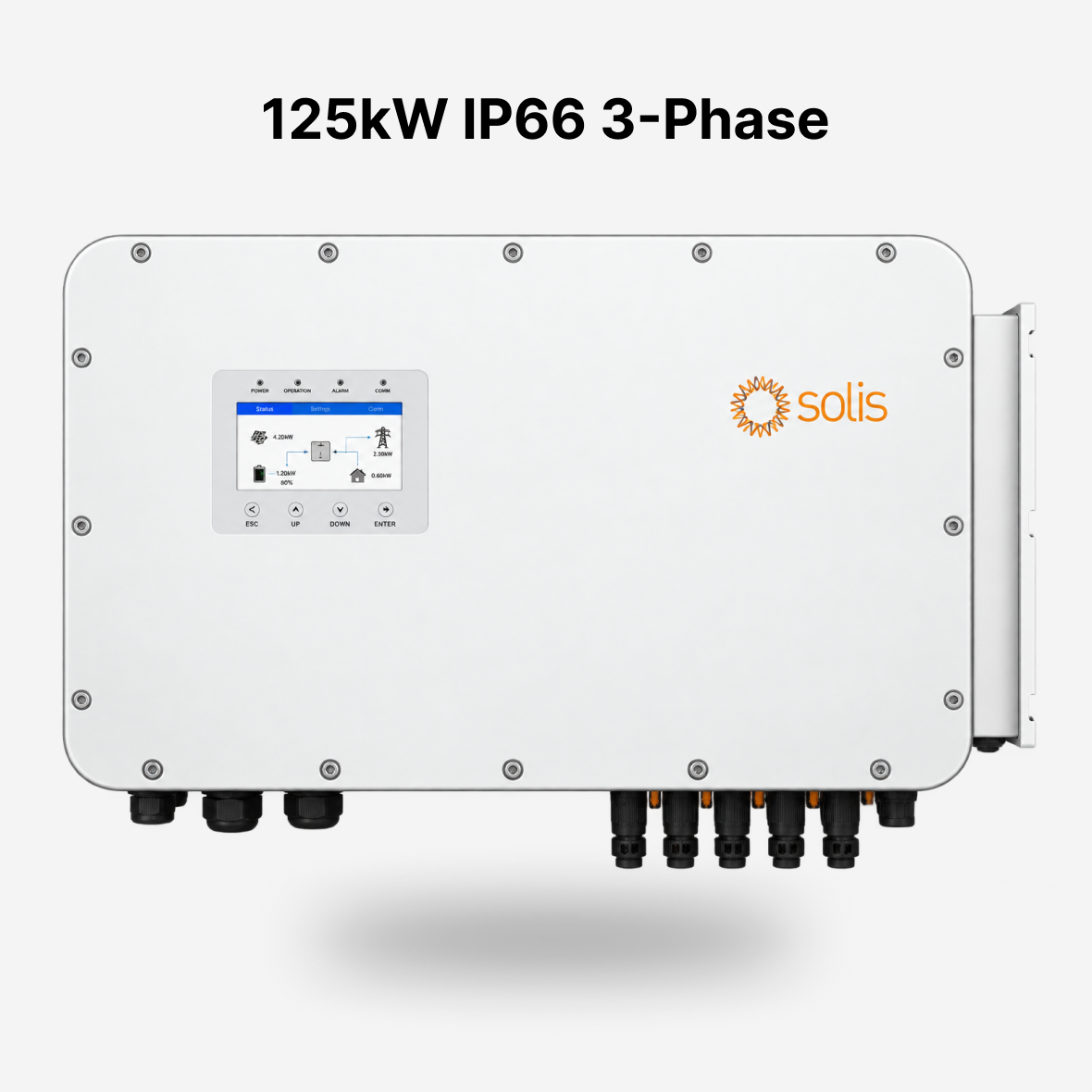

Solis 125kW HV 3-Phase Hybrid Solar Inverter

Download Product Datasheet

Solis Solarator S6-EH3P125K10-NV-YD-H – 125 kW Three-Phase High-Voltage Hybrid Solar Inverter:

The Solis Solarator 125kW is a three-phase high-voltage hybrid inverter designed for large commercial and industrial solar and storage systems. It has 10 MPPT trackers and accepts up to 240kW of solar power. Two independent battery ports connect to high-voltage lithium-ion batteries. It can be added to existing solar systems through DC or AC coupling, and up to 10 units can run in parallel for larger projects. The IP66 rating allows indoor or outdoor installation.

Key Features

• 10 MPPT trackers with 20 strings, up to 21A per string
• Up to 240kW usable PV input
• Two independent battery ports, 200A total (100A + 100A) charge and discharge
• Compatible with 100Ah to 314Ah battery modules
• Seamless on-grid and off-grid switching in under 10ms
• Backup overload capability up to 1.6 times rated power for short periods
• SmartLoad/GEN/INV port for connecting a grid-tied inverter, diesel generator, or wind turbine
• Generator connection from 25kVA to 125kVA
• Smart load prioritizing to keep critical loads running
• Battery reserve function
• DC and AC coupling for retrofitting and expanding existing systems
• Parallel operation of up to 10 units (Solis power distribution cabinet recommended above 6 units)
• Integrated DC switch
• Type II surge protection on both DC and AC sides
• IP66 protection
• 7-inch LCD display with Bluetooth and app monitoring

Specifications

• Rated Output Power: 125kW
• Maximum Apparent Output Power: 125kVA
• Recommended Maximum PV Array Size: 240kW
• Maximum Usable PV Input Power: 240kW
• Number of MPPT Trackers: 10 (20 strings)
• Maximum Input Current: 10 x 42A
• MPPT Voltage Range: 150V to 950V
• Maximum DC Input Voltage: 1000V
• Rated DC Voltage: 600V
• Start-up Voltage: 180V
• Battery Type: Lithium-ion
• Battery Voltage Range: 300V to 950V
• Number of Battery Ports: 2
• Maximum Charge/Discharge Current: 200A (100A per port)
• AC Output Voltage: 3/N/PE, 220/380V or 230/400V
• Frequency: 50Hz / 60Hz
• Rated Grid Output Current: 189.9A (380V) / 180.4A (400V)
• Maximum AC Input Current: 250A
• Power Factor: Above 0.99 (0.8 leading to 0.8 lagging)
• Grid Current Distortion (THDi): Less than 3 percent
• Backup Rated Output Power: 125kW
• Backup Overload: 1.2 times rated power for 100 seconds, 1.4 times for 10 seconds, 1.6 times for 200 milliseconds
• Backup Switch Time: Less than 10ms
• Backup Voltage Distortion (THDv): Less than 2 percent
• Maximum Phase Imbalance: 100 percent
• Maximum Power per Phase: 41.66kW
• Maximum Efficiency: 97.6 percent
• European Efficiency: 97.2 percent
• Battery Charge/Discharge to AC Maximum Efficiency: 97.0 percent
• Protection: Anti-islanding, output overcurrent, short circuit, DC reverse polarity, integrated DC switch, DC Type II and AC Type II surge protection
• Arc-Fault Protection (AFCI 2.0): Optional
• Dimensions (W x H x D): 1174 x 814 x 400 mm
• Weight: 170kg
• Topology: Transformerless
• Operating Temperature: -25°C to +60°C
• Cooling: Intelligent fan cooling
• Protection Rating: IP66
• Maximum Operating Altitude: 3000m
• PV Connection: MC4 quick connection plug
• Battery Connection: Terminal connector
• AC Connection: Terminal block
• Display: 7.0 inch LCD with Bluetooth and app
• Communication: CAN, RS485, Ethernet (optional Wi-Fi, cellular, LAN)
