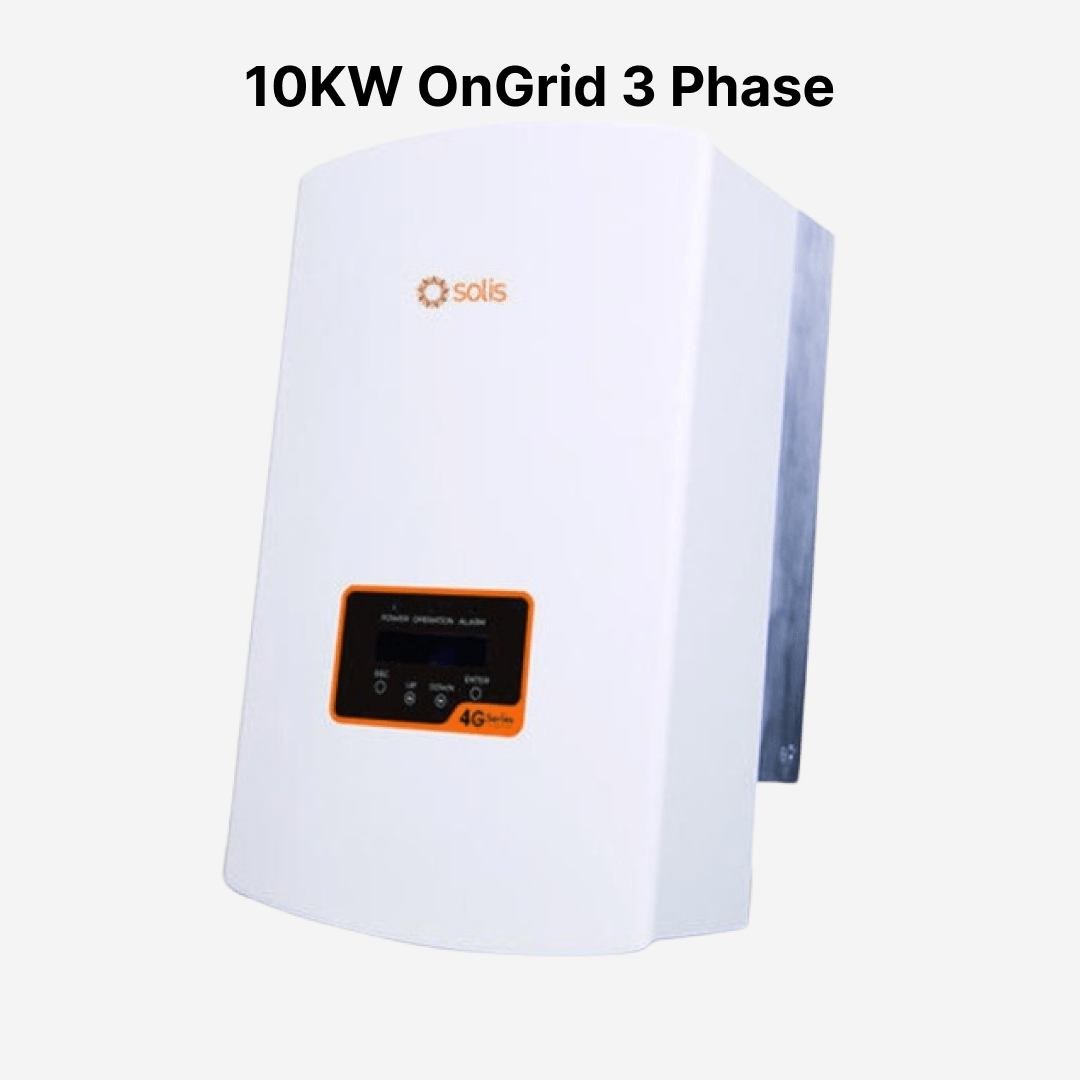

Solis 10KW Ongrid Solar Inverter

The Solis 10kW On-Grid Inverter is designed to optimize solar energy generation, offering a robust and efficient solution for residential and commercial solar installations. This inverter delivers high performance with a maximum efficiency of 98%, ensuring the most effective energy conversion for your solar system.

Key Features:

• Efficiency: 98% maximum efficiency for reliable and optimized power output.
• Wide Voltage Range: Operates in a voltage range of 160-500V, with a low start-up voltage of 180V.
• MPPT Design: Dual MPPT (Maximum Power Point Tracking) design with precise MPPT algorithm, ensuring optimal energy harvesting from your solar panels.
• Low Harmonic Distortion: THDi <1.5%, minimizing harmonic distortion against the grid for stable and clean energy output.
• Multiple Protection Features:
  • DC Reverse Polarity Protection
  • Short Circuit Protection
  • Surge Protection
  • Grid Monitoring
  • Temperature Protection
• Export Power Manager (EPM): Integrated to manage power export efficiently.
• Durability: Ingress Protection rating of IP65, making it suitable for outdoor installations.

Technical Specifications:

• Model: Solis-3P10K-4G-LV
• Recommended Max. PV Power: 12kW
• Max. Input Voltage: 1000V
• Rated Voltage: 330V
• Start-Up Voltage: 180V
• MPPT Voltage Range: 160-500V
• Max. Input Current: 22A
• Max. Short Circuit Current: 34.3A
• Rated Output Power: 10kW
• Max. Output Current: 28.8A
• Dimensions: 310 x 563 x 219mm
• Weight: 19.8kg
• Ingress Protection: IP65

This Solis 10kW On-Grid Inverter is an excellent choice for those seeking reliable, efficient, and long-lasting performance in their solar energy systems. With advanced protection features and a wide range of operating conditions, it's built to ensure maximum energy generation and durability.
