Risen HJT 740 W N-Type Topcon Double Glass Solar Panel

Download Product Datasheet

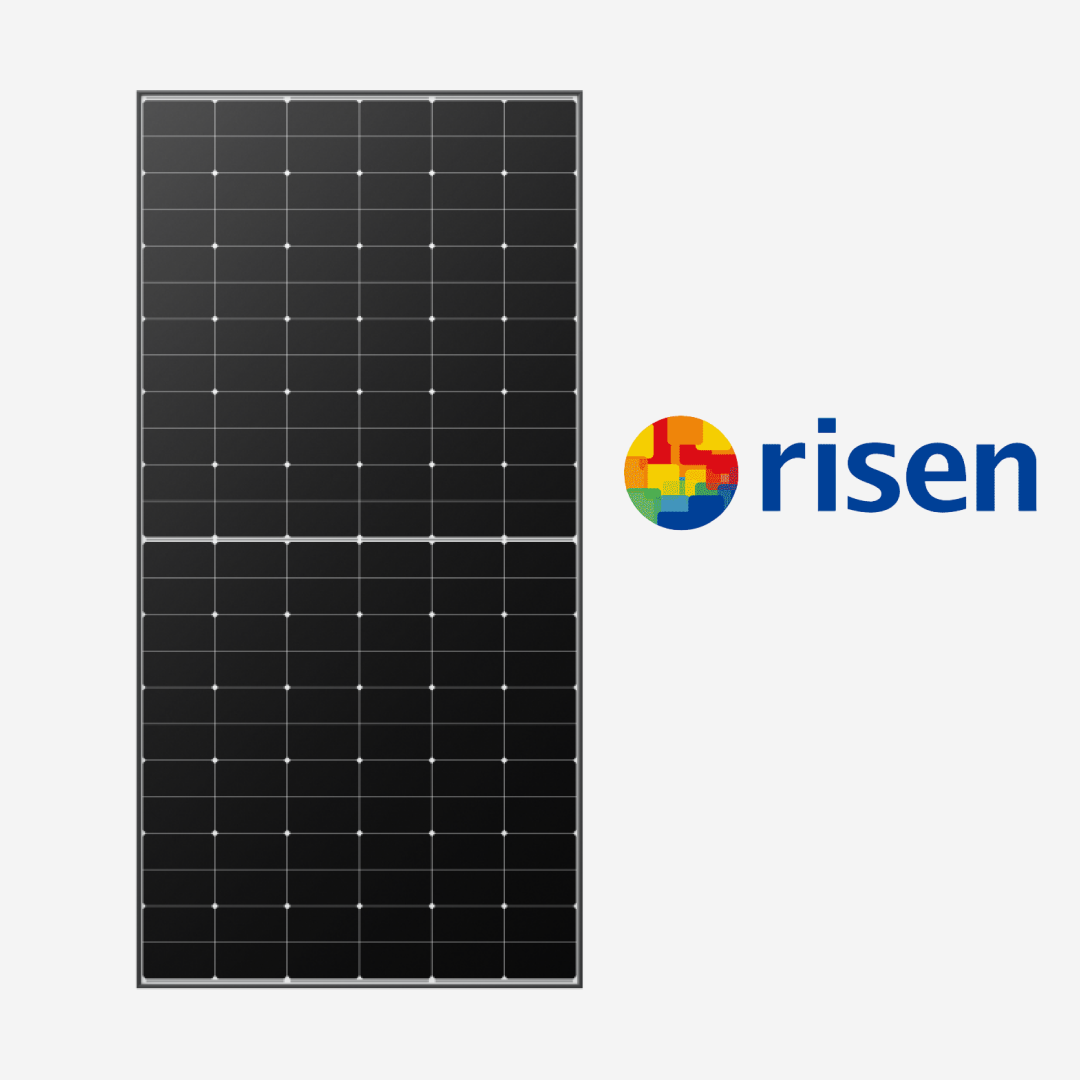

Risen Hyper-ion 740W N-Type HJT Bifacial Solar Panel

The Risen Hyper-ion 740W is a high-performance N-Type HJT bifacial solar panel designed for commercial and utility-scale solar installations. Featuring advanced heterojunction technology, high bifacial performance, and a robust dual-glass construction, it delivers high energy generation with excellent long-term reliability.

Key Features

• Power Output: 740W
• Cell Technology: N-Type HJT
• Module Type: Bifacial
• Cell Configuration: 132 cells
• Module Efficiency: 23.8%
• Power Tolerance: 0 to +3%
• Front Glass: 2.0mm high-transmission AR-coated heat-strengthened glass
• Rear Glass: 2.0mm heat-strengthened glass
• Dimensions: 2384 × 1303 × 35 mm
• Weight: 40 kg
• Junction Box: IP68, 1500V DC, 3 Schottky bypass diodes
• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 35A
• Operating Temperature: -40°C to +85°C
• Front Static Load: 5400 Pa
• Rear Static Load: 2400 Pa
• Frame: High-strength alloy steel

Performance and Reliability

The Hyper-ion series uses advanced HJT technology with excellent anti-LID and anti-PID performance, a low Pmax temperature coefficient of -0.24%/°C, and a high bifacial factor for increased energy generation from the rear side.

The panel is backed by a 15-year product warranty and a 30-year linear power warranty. Its robust dual-glass construction and high mechanical load capacity make it suitable for demanding installation environments.

The Risen Hyper-ion 740W is an excellent choice for projects requiring high power output, high efficiency, bifacial energy generation, and dependable long-term performance.
