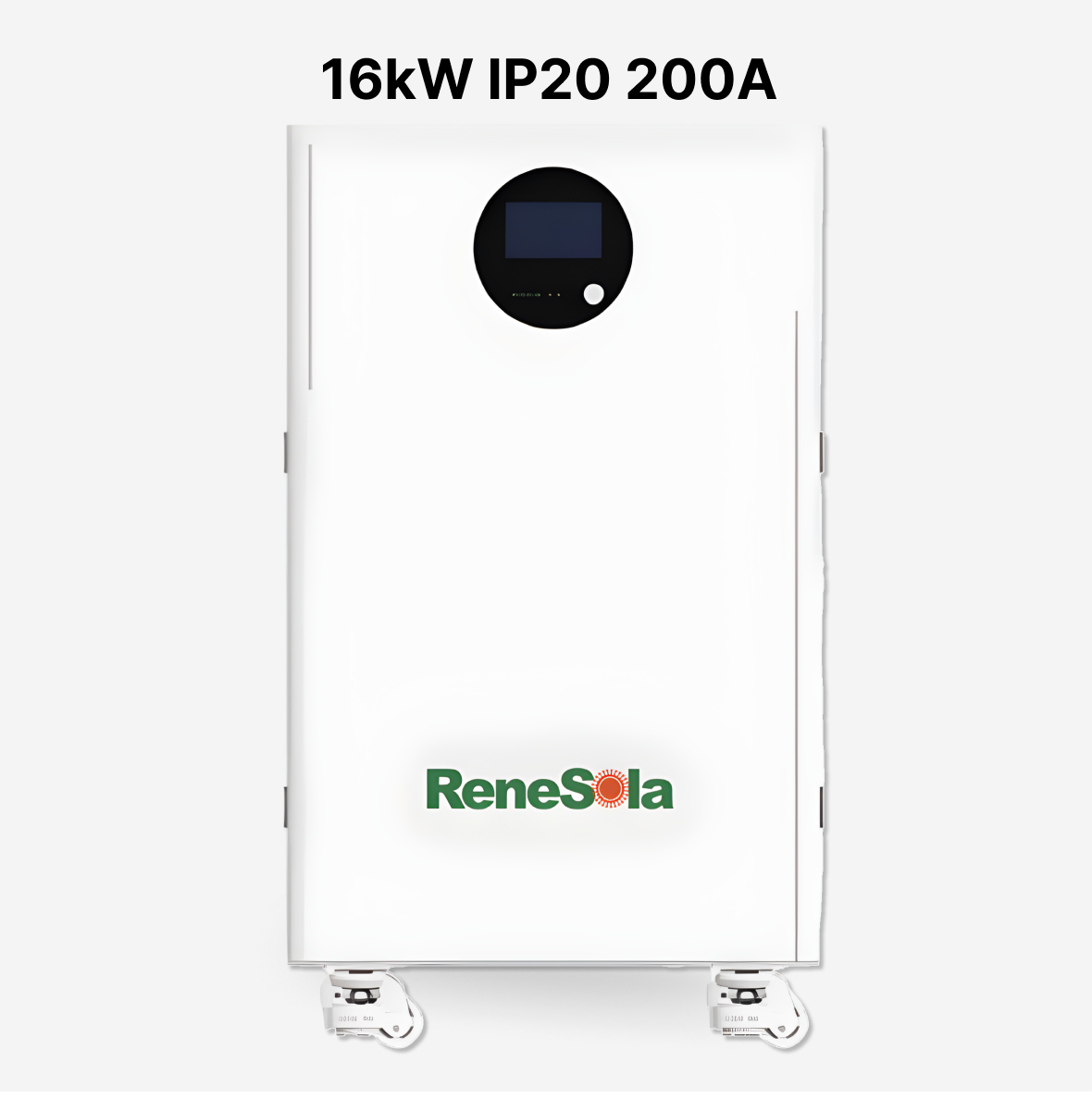

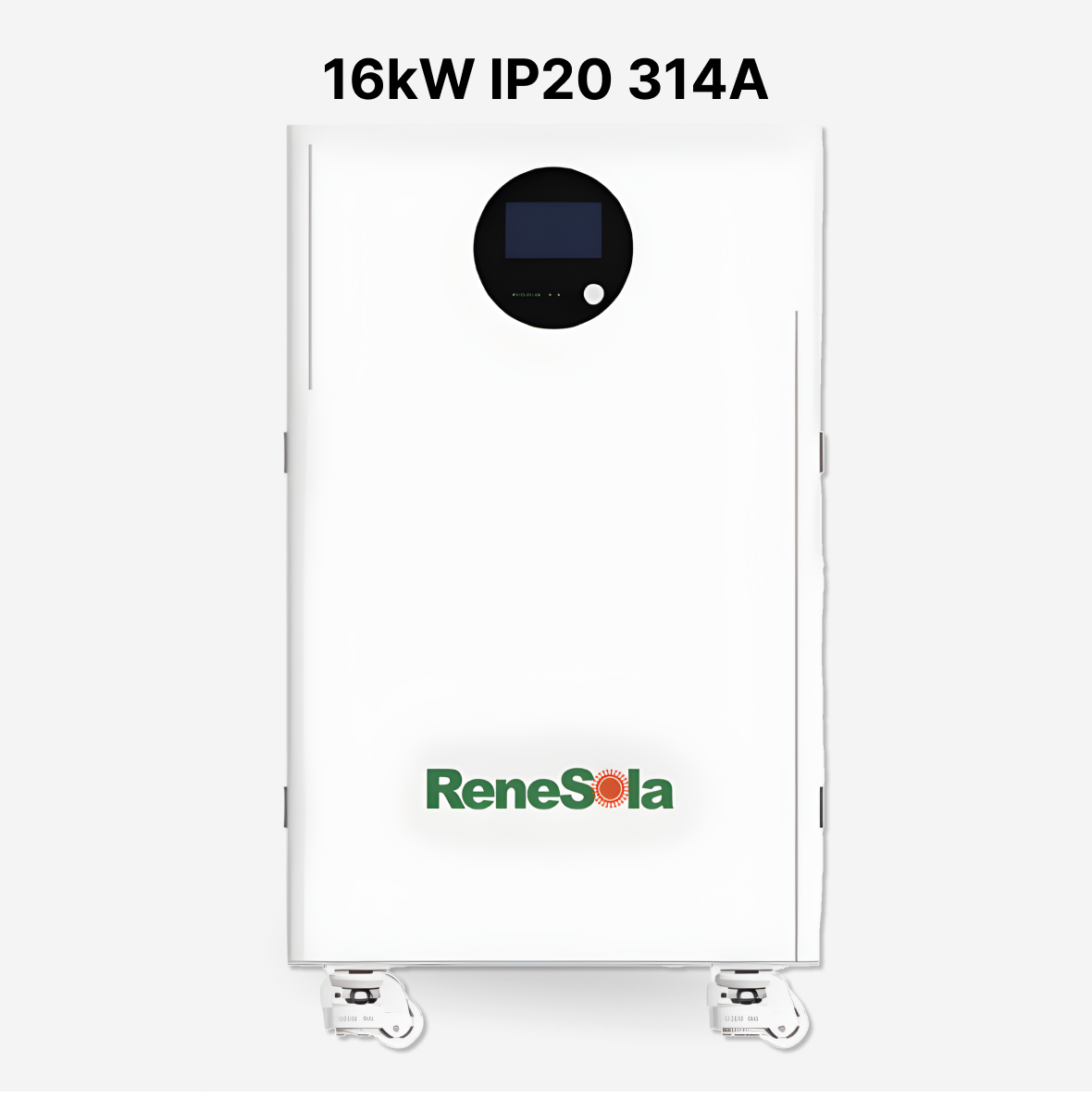

ReneSola M16S314BL-F 16kWh 51.2V Lithium Battery

Description

The ReneSola M16S314BL-F 16kWh 51.2V Lithium Battery is a high-capacity residential energy storage solution designed to provide safe, reliable, and efficient power storage for solar energy systems. Built with Grade A Lithium Iron Phosphate (LiFePO₄) battery cells, it offers high safety, excellent charging and discharging efficiency, and a cycle life of more than 9,000 cycles.

With a 16kWh rated energy capacity and 51.2V rated voltage, the M16S314BL-F is suitable for residential and larger energy storage requirements. Its modular design allows the system to be expanded as energy requirements increase, with support for up to 60 batteries in parallel.

The battery is compatible with most inverters on the market and supports RS232, RS485, and CAN communication. An integrated LCD display provides real-time monitoring of the battery operating status, while the ON/OFF switch allows convenient output control.

Key Features

• 16kWh rated energy capacity
• 51.2V rated voltage
• Grade A LiFePO₄ battery cells
• More than 9,000 cycles
• High charging and discharging efficiency
• Compatible with most inverters
• RS232, RS485, and CAN communication
• Modular and expandable design
• Supports up to 60 batteries in parallel
• ON/OFF switch for output control
• LCD display for real-time operating status monitoring
• 10-year warranty
• CE certified
• UN38.3 transportation certified

Product Specifications

Product Details

The ReneSola M16S314BL-F 16kWh Lithium Battery combines high storage capacity with long-term durability and flexible system expansion. Its Grade A LiFePO₄ cells are designed for high safety and reliability, while the battery delivers more than 9,000 cycles at 25°C, 90% DOD, and 200A.

The battery provides a 16.0kWh rated energy capacity, 51.2V rated voltage, 100A maximum charging current, and 200A maximum discharge current.

For scalable energy storage systems, the M16S314BL-F supports up to 60 units in parallel, allowing storage capacity to be expanded according to system requirements. It also supports RS232, RS485, and CAN communication for inverter and energy management integration.

The integrated LCD display provides real-time operating status information, while the ON/OFF switch provides convenient output control. The battery is designed with IP20 protection and can operate across a wide temperature range, with optional extended charging temperature capability.

The ReneSola M16S314BL-F is backed by a 10-year warranty and is certified to CE and UN38.3 requirements.
