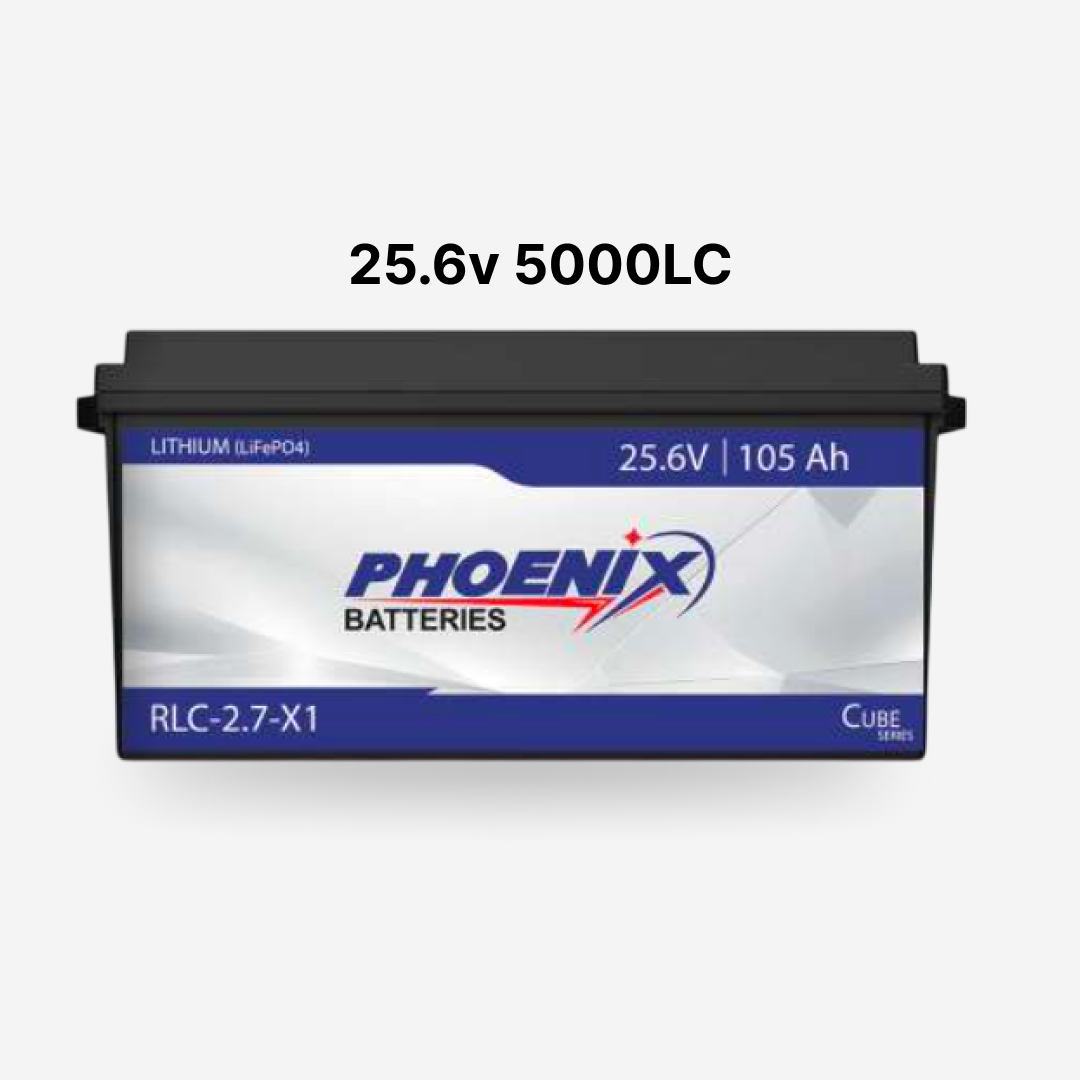

Phoenix Cube Series 25.6v 105A Lithium Batttery

Download Product Datasheet

Phoenix RLC-2.7-X1 Lithium-Ion Battery Specifications

Product Overview

The Phoenix Cube Series RLC-2.7-X1 is a high-performance Lithium Iron Phosphate (LiFePO4) energy storage battery designed for reliability and efficiency. It features a compact, lightweight build with an integrated Smart BMS and Bluetooth connectivity for real-time monitoring.

Core Specifications

• Model: RLC-2.7-X1

• Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Voltage: 25.6 V

• Battery Capacity: 105 Ah

• Nominal Energy: 2688 Wh

• Cycle Life: 5000 cycles @ 0.5C (25°C at 80% DOD)

• Design Life: 5+ Years

Technical Performance

• Operating Voltage Range: 20.8 V - 29.2 V

• Charging Limited Voltage: 29.2 V

• Recommended Charge/Discharge Current: 50 A

• Max Continuous Charge/Discharge Current: 75 A

• Peak Charge/Discharge Current: 80 A @ 60 s

• Charge Mode: CC/CV

Physical Attributes

• Dimensions (LWH): 502 x 186 x 243 mm

• Weight: 20 Kg (± 1 Kg)

• Case Material: ABS

• Terminal Type: M8

Smart Features & Protection

• Communication: Bluetooth App for real-time monitoring (Capacity, Voltage, Current, Cycles, SOC, SOH, Cell Voltage, Temperature).

• BMS Protection: Over charge/discharge, Over temperature, Short circuit.

• Scalability: Supports up to 2 modules in series (Single use only) or 2 modules in parallel (Single use only). Note: Cannot be in series and parallel simultaneously.

Operating Environment

• Charge Temperature: 0°C to +55°C

• Discharge Temperature: -20°C to +60°C

• Storage Temperature: -20°C to +35°C

• Humidity: 5% to 95%

• Altitude: < 2000 meters

Warranty

• Warranty Period: 3 Years Limited Warranty
