Nimbess Flyer 5.12kWh 100A With 8000LC Lithium Battery
Download Product Datasheet Nimbess ES-BOX12(LCD) 5.12kWh 51.2V LiFePO4 Lithium Battery Description The Nimbess ES-BOX12(LCD) is a 5.12kWh...
- Rs.210,000.00
- Rs.210,000.00
- Unit price
- per
Please hurry! Only 20 left in stock
Subtotal:
Rs.210,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product

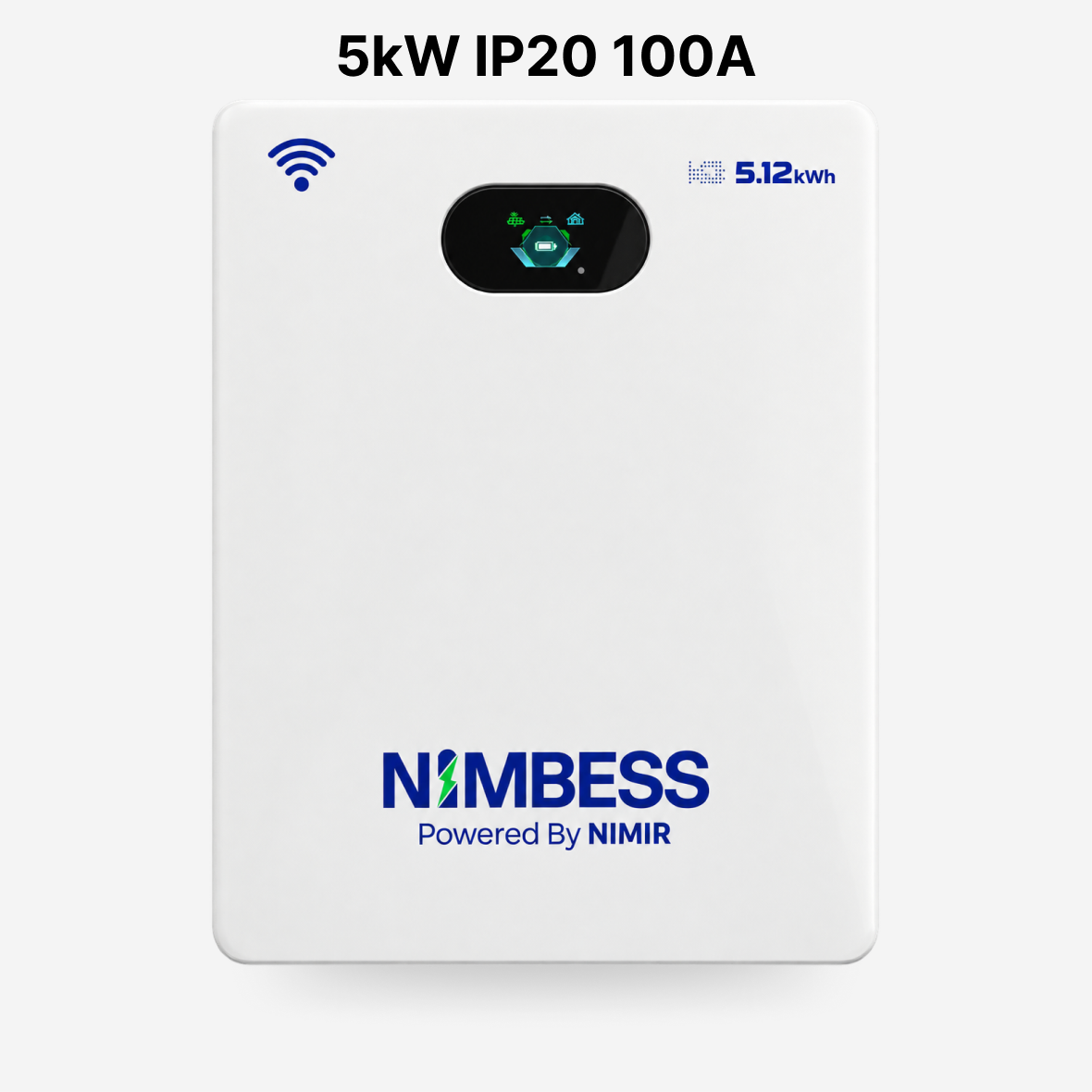

Nimbess ES-BOX12(LCD) 5.12kWh 51.2V LiFePO4 Lithium Battery
Description
The Nimbess ES-BOX12(LCD) is a 5.12kWh wall-mounted LiFePO4 lithium battery designed for residential renewable energy storage systems. It features a 51.2V, 100Ah battery configuration with a 1C continuous charge and discharge rate, providing reliable energy storage for solar and backup applications. The battery supports up to 16 units in parallel, allowing the system to be expanded as energy-storage requirements increase.
Key Features
- 5.12kWh nominal energy
- 51.2V nominal voltage
- 100Ah nominal capacity
- LiFePO4 battery technology
- 1C continuous charging and discharging
-
8,000-cycle life
- 80% Depth of Discharge (DOD)
- Up to 16 units in parallel
- Low-voltage safety connection
- WiFi APP and cloud monitoring
- Touchscreen and breaker
- RS485, CAN and USB/RS232 communication
- Wall-mounted or floor-standing installation
- 5-year standard warranty
- IP20 protection
- Multiple inverter compatibility
Product Specifications
| Specification | Details |
|---|---|
| Brand | Nimbess |
| Model | ES-BOX12(LCD) |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Cell Type | LFP / LiFePO4 |
| Standard Charge Voltage | 56.8V |
| Max. Discharge Current | 100A |
| Discharge Cut-off Voltage | 44.8V |
| Max. Charging & Discharging Rate | 1C |
| Depth of Discharge | 80% |
| Cycle Life | >8,000 cycles |
| Communication | RS485, CAN, USB/RS232 |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Parallel Function | Up to 16 units |
| Installation | Wall Mounted / Floor Standing |
| Dimensions (W×H×D) | 480 × 600 × 150mm |
| Net Weight | 50kg |
| IP Rating | IP20 |
| Functions | WiFi APP / Touchscreen / Breaker |
| Warranty | 5 Years |
| Certifications | CEI 0-21, CE, IEC 62619, UL 1973, MSDS, UN38.3 |
Product Details
The Nimbess ES-BOX12(LCD) 5.12kWh Lithium Battery combines LiFePO4 safety, scalable capacity and flexible installation in a compact energy-storage solution. Its 51.2V low-voltage architecture is suitable for residential solar applications, while CAN and RS485 communication enables integration with compatible inverter systems.
