Nimbess Flyer 2.56kWh 100A With 8000LC Lithium Battery
Download Product Datasheet Nimbess ES-BOX12S(LCD) 2.56kWh 25.6V LiFePO4 Lithium Battery Description The Nimbess ES-BOX12S(LCD) is a compact...
- Rs.120,000.00
- Rs.120,000.00
- Unit price
- per
Please hurry! Only 20 left in stock
Subtotal:
Rs.120,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product

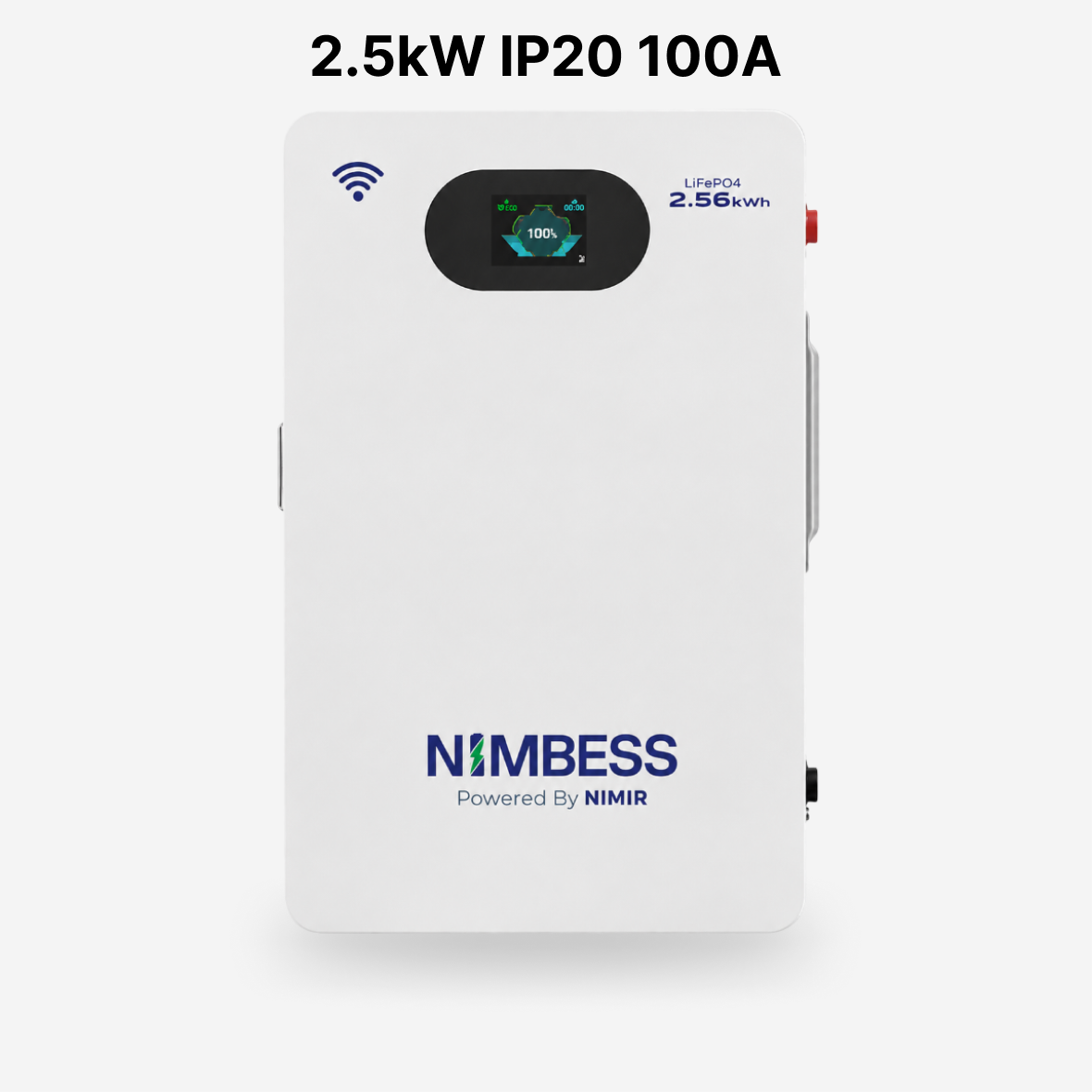

Nimbess ES-BOX12S(LCD) 2.56kWh 25.6V LiFePO4 Lithium Battery
Description
The Nimbess ES-BOX12S(LCD) is a compact 2.56kWh LiFePO4 lithium battery designed for residential solar energy storage and backup applications. Featuring a 25.6V, 100Ah configuration and 1C maximum charging and discharging, it offers a practical low-voltage storage solution. The system supports up to 16 units in parallel, providing flexibility for future capacity expansion.
Key Features
- 2.56kWh nominal energy
- 25.6V nominal voltage
- 100Ah nominal capacity
- LiFePO4 / LFP battery technology
- 1C maximum charging and discharging
-
8,000-cycle life
- 80% Depth of Discharge (DOD)
- Up to 16 units in parallel
- Low-voltage safety connection
- WiFi APP and cloud monitoring
- Touchscreen and breaker
- RS485, CAN and USB/RS232 communication
- Wall-mounted or floor-standing installation
- 5-year standard warranty
- IP20 protection
Product Specifications
| Specification | Details |
|---|---|
| Brand | Nimbess |
| Model | ES-BOX12S(LCD) |
| Nominal Energy | 2.56kWh |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Cell Type | LFP / LiFePO4 |
| Standard Charge Voltage | 28.4V |
| Max. Discharge Current | 100A |
| Discharge Cut-off Voltage | 22.4V |
| Max. Charging & Discharging Rate | 1C |
| Depth of Discharge | 80% |
| Cycle Life | >8,000 cycles |
| Communication | RS485, CAN, USB/RS232 |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Parallel Function | Up to 16 units |
| Installation | Wall Mounted / Floor Standing |
| Dimensions (W×H×D) | 350 × 470 × 150mm |
| Net Weight | 28kg |
| IP Rating | IP20 |
| Functions | WiFi APP / Touchscreen / Breaker |
| Warranty | 5 Years |
| Certifications | CEI 0-21, CE, IEC 62619, UL 1973, MSDS, UN38.3 |
Product Details
The Nimbess ES-BOX12S(LCD) 2.56kWh Lithium Battery is designed for users who need a compact and expandable energy-storage solution. Its 25.6V 100Ah LiFePO4 configuration provides reliable low-voltage energy storage, while parallel support allows multiple batteries to be combined for increased capacity.
