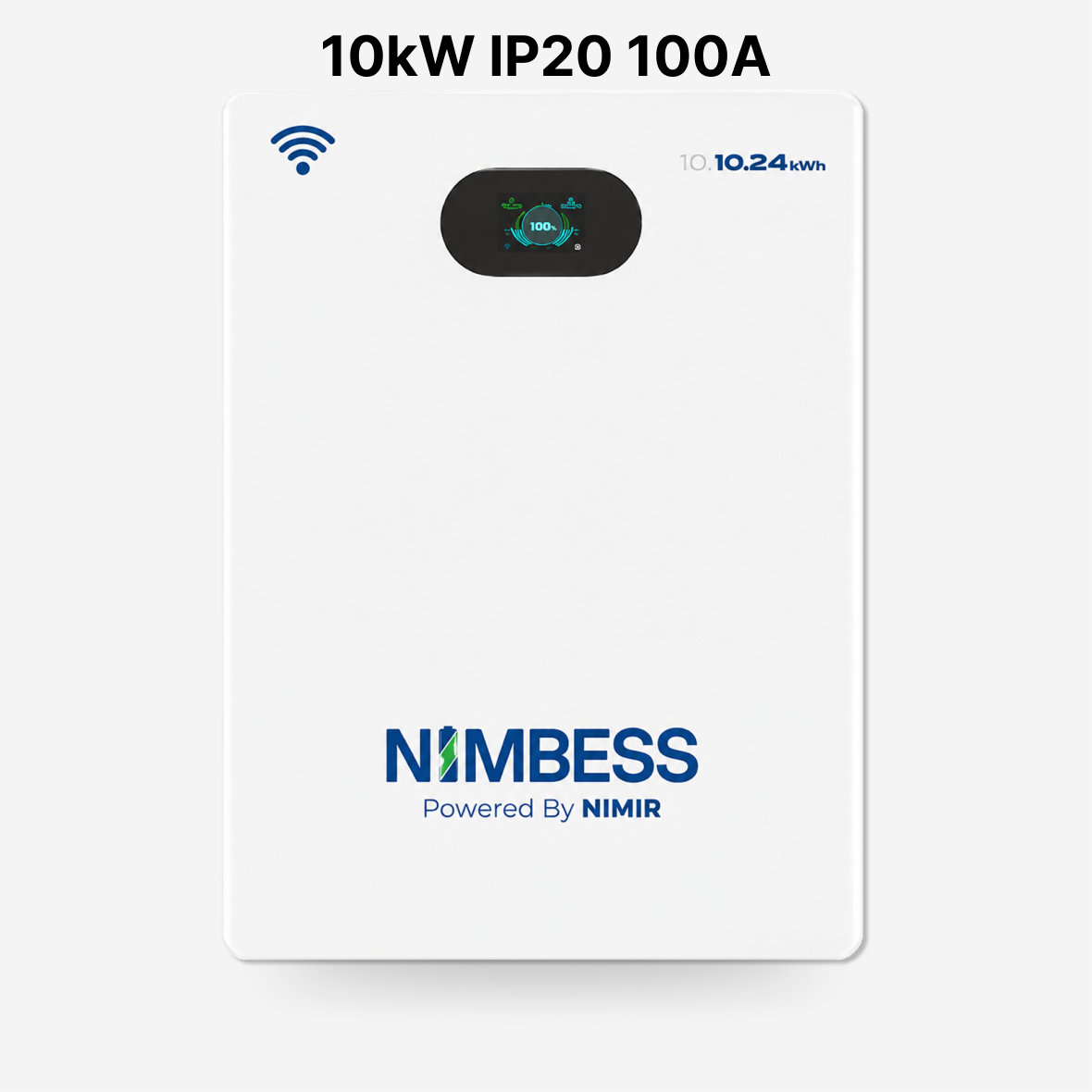

Nimbess ES-BOX12 PLUS(LCD) 10.24kWh 51.2V LiFePO4 Lithium Battery
Description
The Nimbess ES-BOX12 PLUS(LCD) is a high-capacity 10.24kWh LiFePO4 lithium battery designed for renewable energy storage and residential backup applications. With a 51.2V, 200Ah configuration and up to 0.75C continuous charge and discharge, it provides dependable energy storage with flexible installation and expansion capabilities. Up to 16 modules can be connected in parallel for larger storage requirements.
Key Features
- 10.24kWh nominal energy
- 51.2V nominal voltage
- 200Ah nominal capacity
- LiFePO4 battery technology
- 0.75C continuous charging and discharging
-
8,000-cycle life
- 80% Depth of Discharge (DOD)
- Supports up to 16 units in parallel
- Low-voltage safety connection
- WiFi remote monitoring and cloud management
- Touchscreen and breaker
- RS485, CAN and USB/RS232 communication
- Wall-mounted or floor-standing installation
- 5-year standard warranty
- IP20 protection
Product Specifications
| Specification | Details |
|---|---|
| Brand | Nimbess |
| Model | ES-BOX12 PLUS(LCD) |
| Nominal Energy | 10.24kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Cell Type | LFP / LiFePO4 |
| Standard Charge Voltage | 56.8V |
| Max. Discharge Current | 150A |
| Discharge Cut-off Voltage | 44.8V |
| Max. Charging & Discharging Rate | 0.75C |
| Depth of Discharge | 80% |
| Cycle Life | >8,000 cycles |
| Communication | RS485, CAN, USB/RS232 |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Parallel Function | Up to 16 units |
| Installation | Wall Mounted / Floor Standing |
| Dimensions (W×H×D) | 480 × 650 × 225mm |
| Net Weight | 87kg |
| IP Rating | IP20 |
| Functions | WiFi APP / Touchscreen / Breaker |
| Warranty | 5 Years |
| Certifications | CEI 0-21, CE, IEC 62619, UL 1973, MSDS, UN38.3 |
Product Details
The Nimbess ES-BOX12 PLUS(LCD) 10.24kWh Lithium Battery provides increased storage capacity for homes and renewable-energy systems requiring extended backup and higher energy reserves. Its scalable design, multiple communication interfaces and flexible installation options make it suitable for integration with compatible solar inverter systems.
