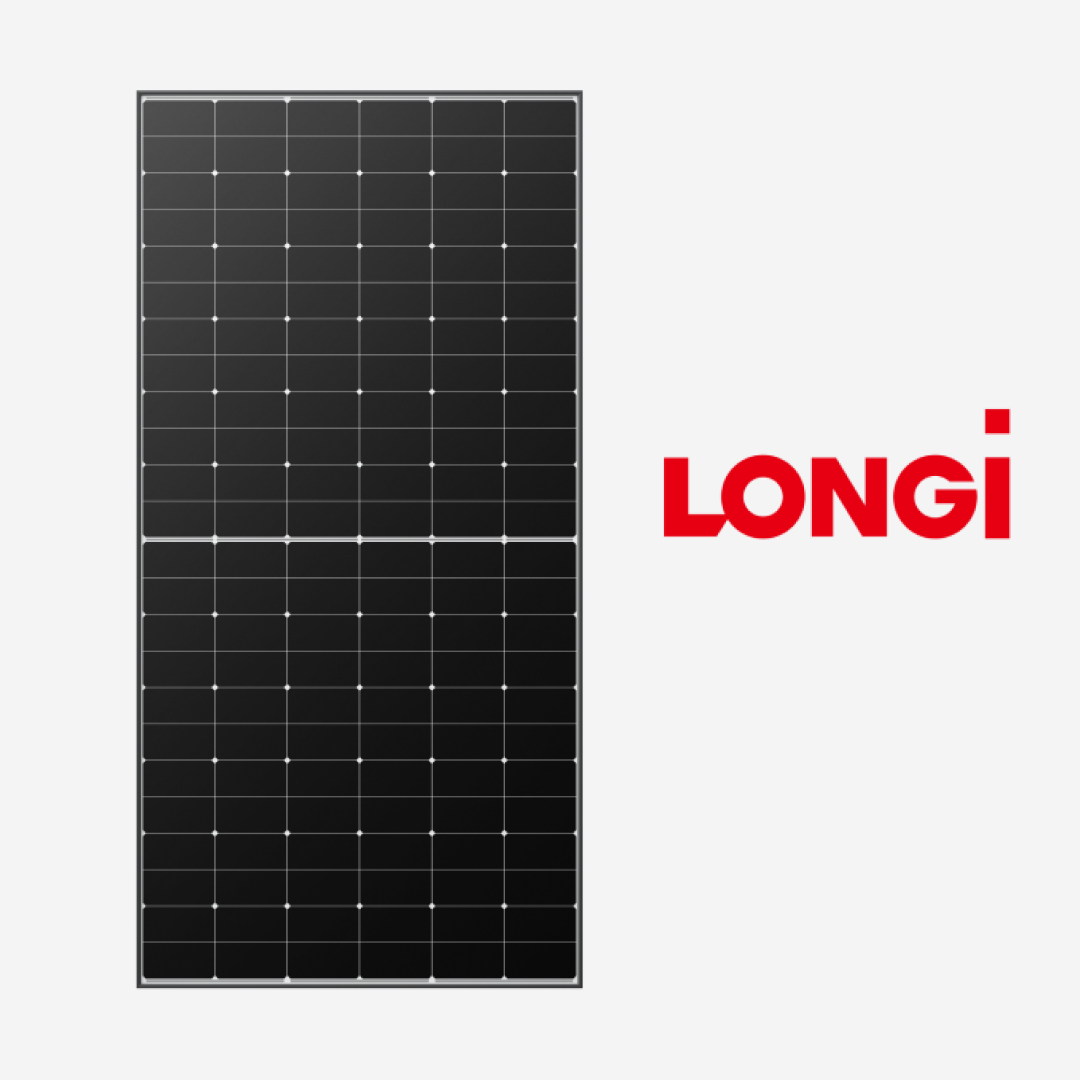

LONGi Hi-MO X10 645W Solar Panel

The LONGi Hi-MO X10 645W is a high-efficiency monocrystalline solar panel featuring TaiRay wafer and BC cell technology. Designed for distribution markets, it delivers high energy generation performance, reliable operation, and excellent long-term power output.

Key Features

• Power Output: 645W

• Technology: BC Cell Technology

• Cell Configuration: 144 cells (6 × 24)

• Module Efficiency: 23.9%

• Power Tolerance: 0 to +3%

• Glass: Single glass, 3.2mm coated tempered glass

• Dimensions: 2382 × 1134 × 30 mm

• Weight: 28.5 kg

• Junction Box: IP68 with three diodes

• Maximum System Voltage: 1500V DC

• Maximum Series Fuse Rating: 25A

• Operating Temperature: -40°C to +85°C

• Front-Side Maximum Static Load: 5400 Pa

• Rear-Side Maximum Static Load: 2400 Pa

Performance and Warranty

The panel has a first-year power degradation of less than 1% and an annual degradation rate of 0.35% from years 2 to 30. It comes with a 15-year warranty for materials and processing and a 30-year warranty for extra linear power output.

The LONGi Hi-MO X10 645W is an excellent choice for solar installations requiring high efficiency, reliable performance, and long-term energy generation. The datasheet specifies this model as single glass.
