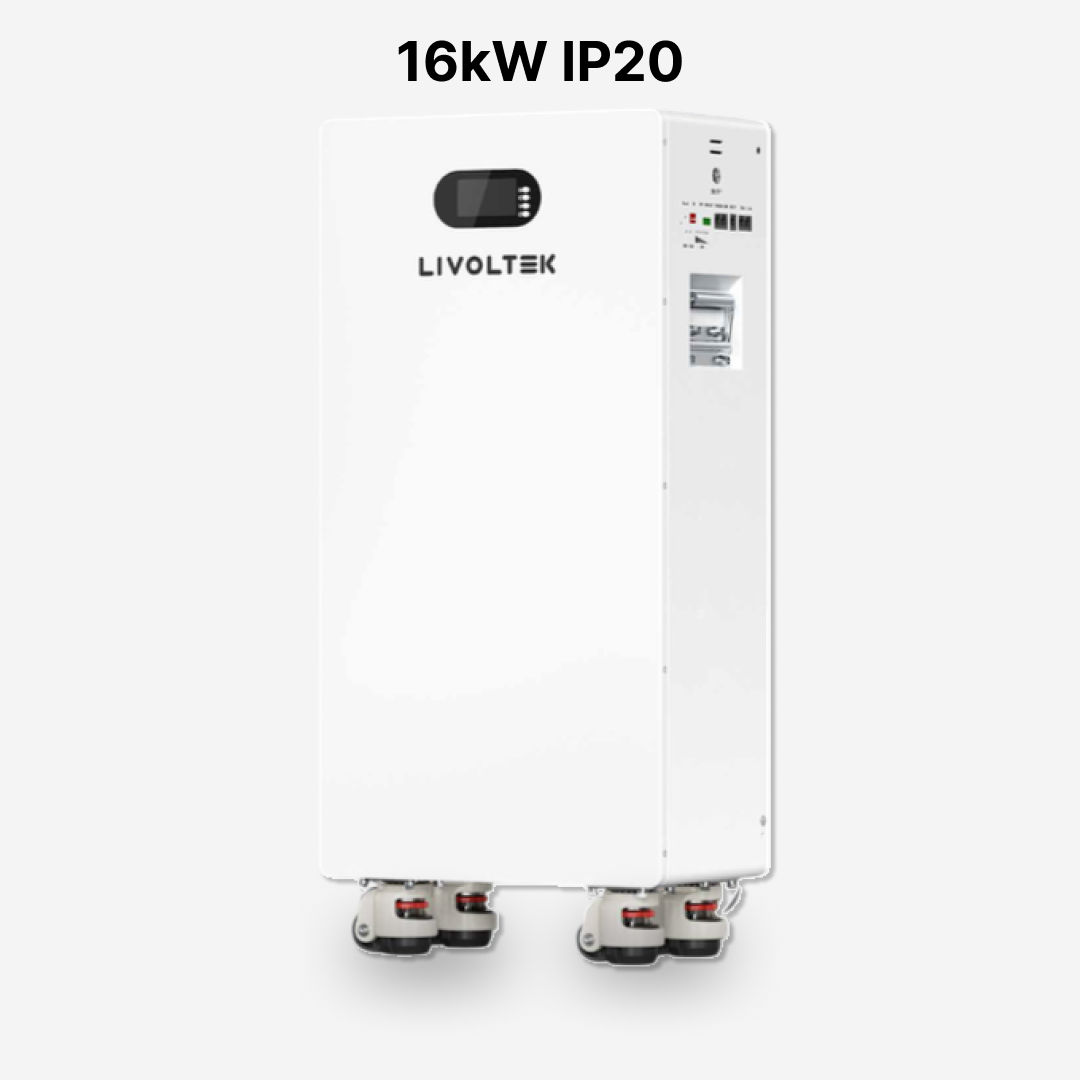

Livoltek HomCellar-16-B2 – 16kWh Low-Voltage Lithium Battery

Detailed Technical Specifications

General Overview

• Brand: Livoltek
• Model: HomCellar-16-B2
• Battery Type: LiFePO₄ (LFP)
• System Type: Low-Voltage Residential Battery

Energy & Capacity

• Total Capacity: 16 kWh
• Rated Capacity: 314 Ah
• Nominal Voltage: 51.2 V
• Voltage Range: 43.2 – 57.6 V
• Depth of Discharge (DoD): 90%

Cell Configuration

• Configuration: 1P16S
• Battery Module: 51.2V, 314Ah, 16kWh

Charge & Discharge Parameters

• Max Charge Current: 160 A
• Max Discharge Current: 200 A

Cycle Life & Durability

• Cycle Life: ≥8000 cycles
• High efficiency & long lifespan

Smart Features

• App monitoring + LCD display
• Advanced BMS protection system

Scalability

• Supports up to 16 batteries in parallel

Operating Conditions

• Same as the 15kWh model
• Designed for harsh environments

Physical Specifications

• Dimensions: 415 × 883 × 234 mm
• Weight: 110.5 kg
• Design: Floor-standing with wheels

Cooling & Protection

• Cooling: Natural
• Ingress Protection: IP20

Communication

• CAN / RS485
