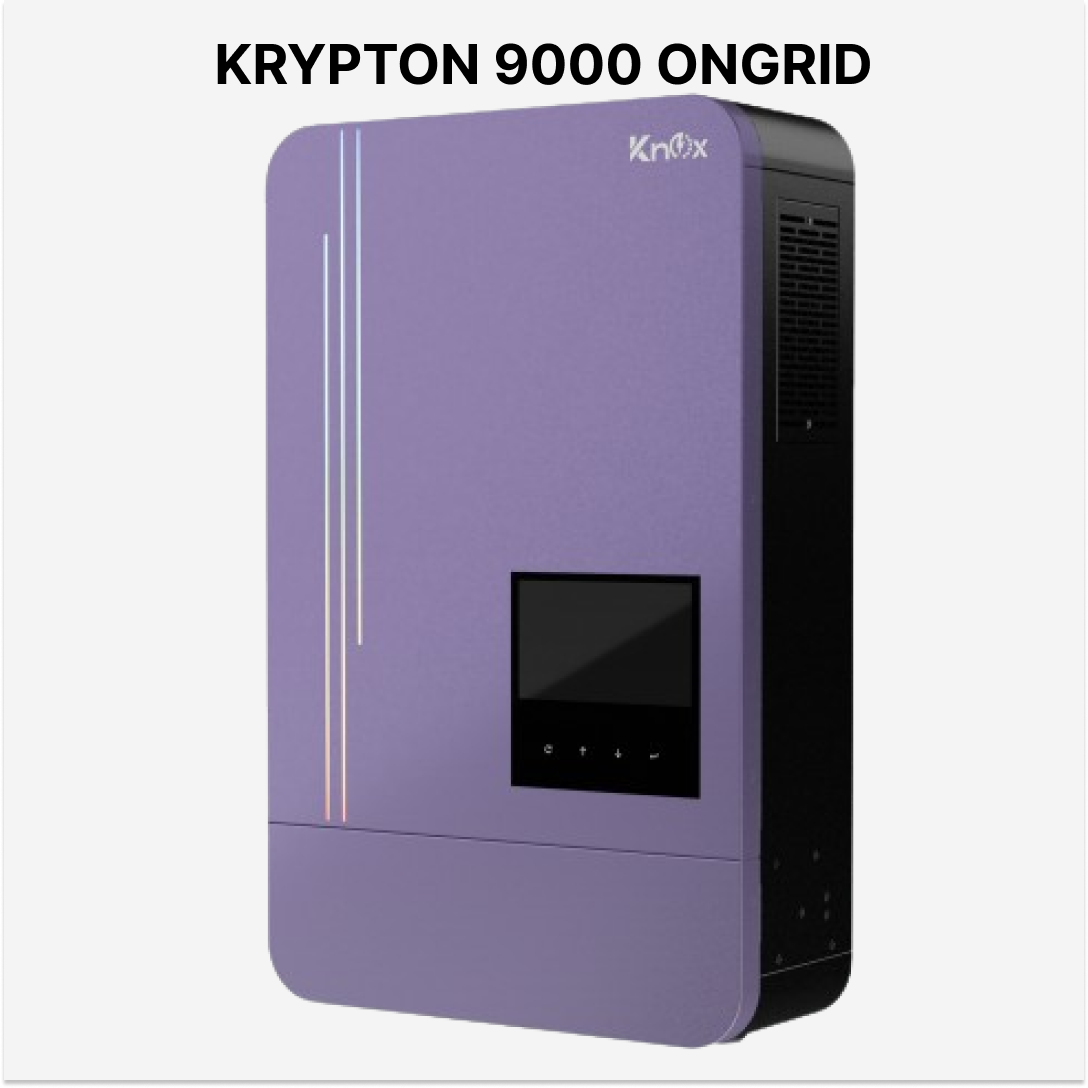

Krypton 9000 On HYBRID Inverter

Krypton 9000 On HYBRID Inverter

⚙️ General Specifications Parameter Specification Phase Single Phase Rated Output Power 6200 W Battery + PV Output...
Vendor: Knox
Availability: In stock
Product type: Solar Inverter
Rs.155,000.00
Rs.155,000.00
Please hurry! Only 4 left in stock
Subtotal: Rs.155,000.00
Order on WhatsApp
10 customers are viewing this product

Shipping

You have to pay Partial Payment for order confirmation

Estimated Shipping Time: 48 to 72 Hours

7 Days Check Warranty

Krypton 9000 On HYBRID Inverter

Krypton 9000 On HYBRID Inverter

Rs.155,000.00
Krypton 9000 On HYBRID Inverter

Krypton 9000 On HYBRID Inverter

Rs.155,000.00
Description

⚙️ General Specifications

Parameter Specification
Phase Single Phase
Rated Output Power 6200 W
Battery + PV Output Power 8000 W
Nominal DC Voltage 48 VDC
Maximum DC Voltage 500 VDC
Start-up Voltage 120 VDC
Initial Feeding Voltage 150 VDC
MPPT Voltage Range 120 VDC – 430 VDC
Number of MPPT Trackers 1
Max Input Current 27 A (Max 40 A)

🔋 PV Input (DC)

Parameter Specification
Maximum PV Input Power 9000 W
Solar Charger Type MPPT
Maximum Solar Charging Current 142 A

⚡ Battery & Charger

Parameter Specification
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Maximum AC Charging Current 120 A
Maximum Charging Current 120 A

🏠 Battery Mode Output (AC)

Parameter Specification
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current 28.26 A
Power Factor > 0.99
Output Waveform Pure Sine Wave
Surge Power 12400 VA
Transfer Time 10 ms (PCs), 20 ms (Home Appliances)

🔌 Grid-Tie Operation & AC Input

Parameter Specification
AC Start-up Voltage 120 – 140 VAC
Auto Restart Voltage 180 VAC
Acceptable Input Voltage Range 90 – 280 VAC or 170 – 280 VAC
Frequency Range 50 Hz / 60 Hz (Auto sensing)
Nominal Output Voltage 230 VAC

📊 Efficiency

Parameter Specification
Maximum Conversion Efficiency (DC/AC) 95%
Overall Efficiency (DC to AC) 93%
DC Voltage 12 VDC ± 5%, 100W

📐 Physical & Environmental

Parameter Specification
Dimensions (D x W x H) 138 x 320 x 550 mm
Net Weight 12 kg
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 0 – 90% RH (Non-condensing)

🔗 Interface & Communication

  • USB

  • RS232

  • RS485

  • WiFi

  • Dry-contact

🛡️ Certifications & Approvals

  • IEC 61682

  • Low Voltage Directive 2014/35/EU

  • IEC 62109-1

  • IEC 62109-2

  • IEC 61683

  • More certifications available upon request

✅ Key Highlights

  • High surge power of 12.4 kVA

  • Pure sine wave output for sensitive electronics

  • Fast transfer time (10–20 ms) for seamless backup

  • Robust MPPT solar charging with wide voltage range

  • Multiple communication options for easy monitoring

  • Compact and lightweight design

  • Certified for safety and reliability
