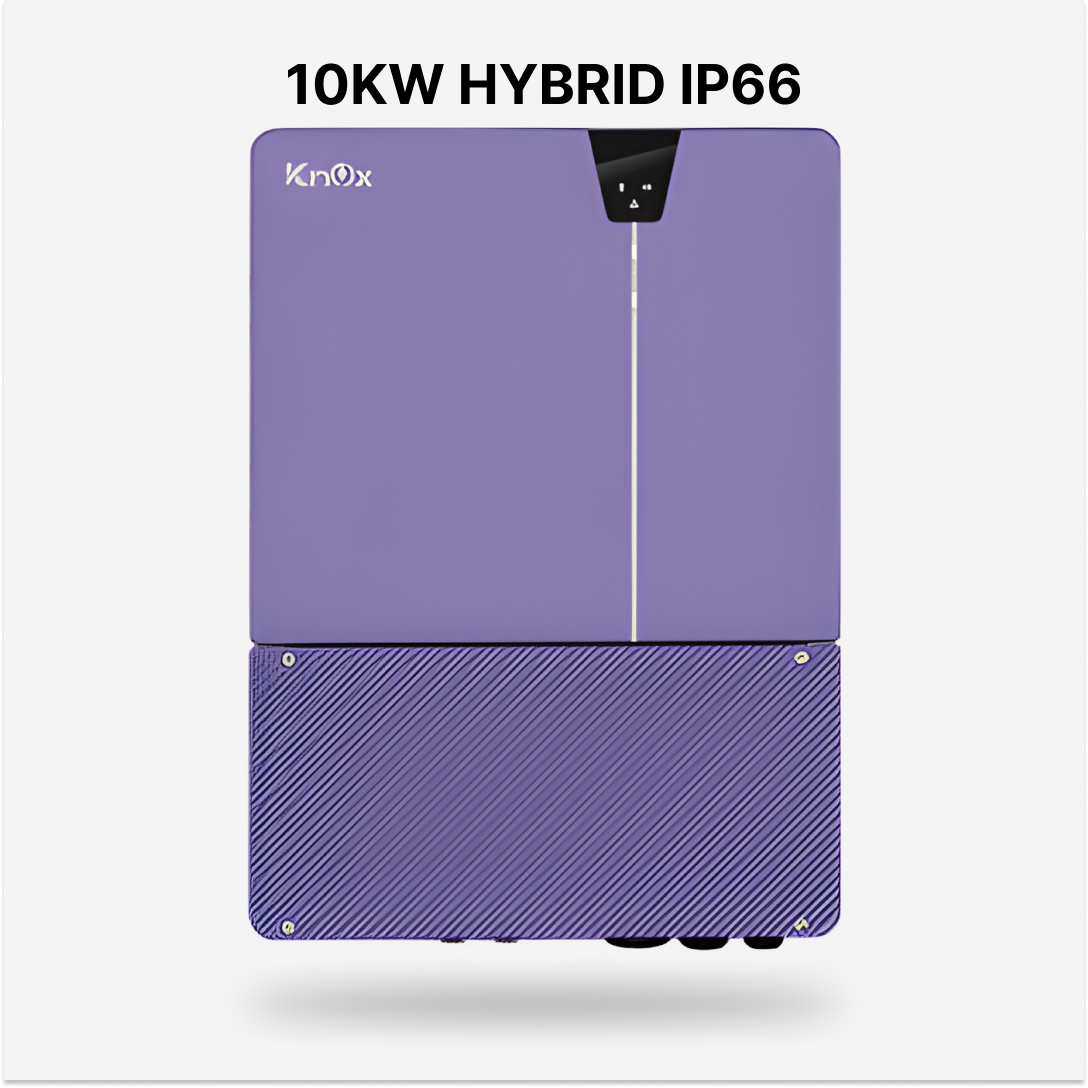

Knox Zynex Series 10KW IP66 Hybrid Solar Inverter

Download Product Datasheet

Zynex Series 10kW Hybrid Inverter (ZX-3M-1020)

Key Features

• Single Phase Hybrid Inverter (Solar + Battery + Grid)

• 3 Independent MPPTs – supports flexible PV designs

• Up to 200% PV oversizing for maximum solar yield

• UPS-level switching time <10 ms

• IP66 dust & water protection for indoor/outdoor use

• Black-start capability with PV, Battery & Generator

• Expandable system up to 30kW (on-grid & off-grid)

• Compatible with Lithium (LiFePO4) & Lead-Acid batteries

• Smart monitoring & setup via KNOX App

Solar (PV Input)

• Max. PV Array Power: 20,000 Wp

• Max. Input Voltage: 550 VDC

• MPPT Voltage Range: 40 ~ 530 VDC

• No. of MPPTs: 3

• Max. Input Current per MPPT: 20 A

• Max. Power per MPPT: 10,000 W

Battery

• Voltage Range: 40 – 60 V

• Supported Battery Types: LiFePO4 / Lead-acid

• Max. Charge / Discharge Power: 10,000 W

• Max. Charge Current: 210 A

• Max. Discharge Current: 210 A

AC Output (On-Grid Mode)

• Rated Power: 10,000 VA / 10,000 W

• Max. Apparent Power: 11,000 VA

• Nominal Voltage: 220/230/240 V (Single Phase, L/N)

• Frequency: 50 Hz / 60 Hz

• Rated Output Current: 43.5 A

• Max. Output Current: 47.8 A

• Power Factor: 1 / adjustable 0.8 leading to 0.8 lagging

• THD: <3%

EPS / Backup Output (Off-Grid Mode)

• Rated Power: 10,000 VA

• Peak Power (10s): 20,000 VA

• Rated Current: 45.5 A

• Switching Time: <10 ms

• THD: <2%

Efficiency

• MPPT Efficiency: 99.9%

• Max. Efficiency: 97.6%

• Euro Efficiency: 97%

Communication & Monitoring

• Interfaces: RS485, LAN (TCP/RTU), WiFi Dongle

• User Interface: LED + App (KNOX)

• BMS Interface: CAN

• Export power control supported

Physical & Environmental

• Dimensions: 484 × 679 × 230 mm

• Weight: 34.5 kg

• Cooling: Smart cooling

• Protection: IP66 (dust & waterproof)

• Operating Temp: -25°C ~ +60°C

• Humidity: ≤100%

• Altitude: Up to 3000 m
