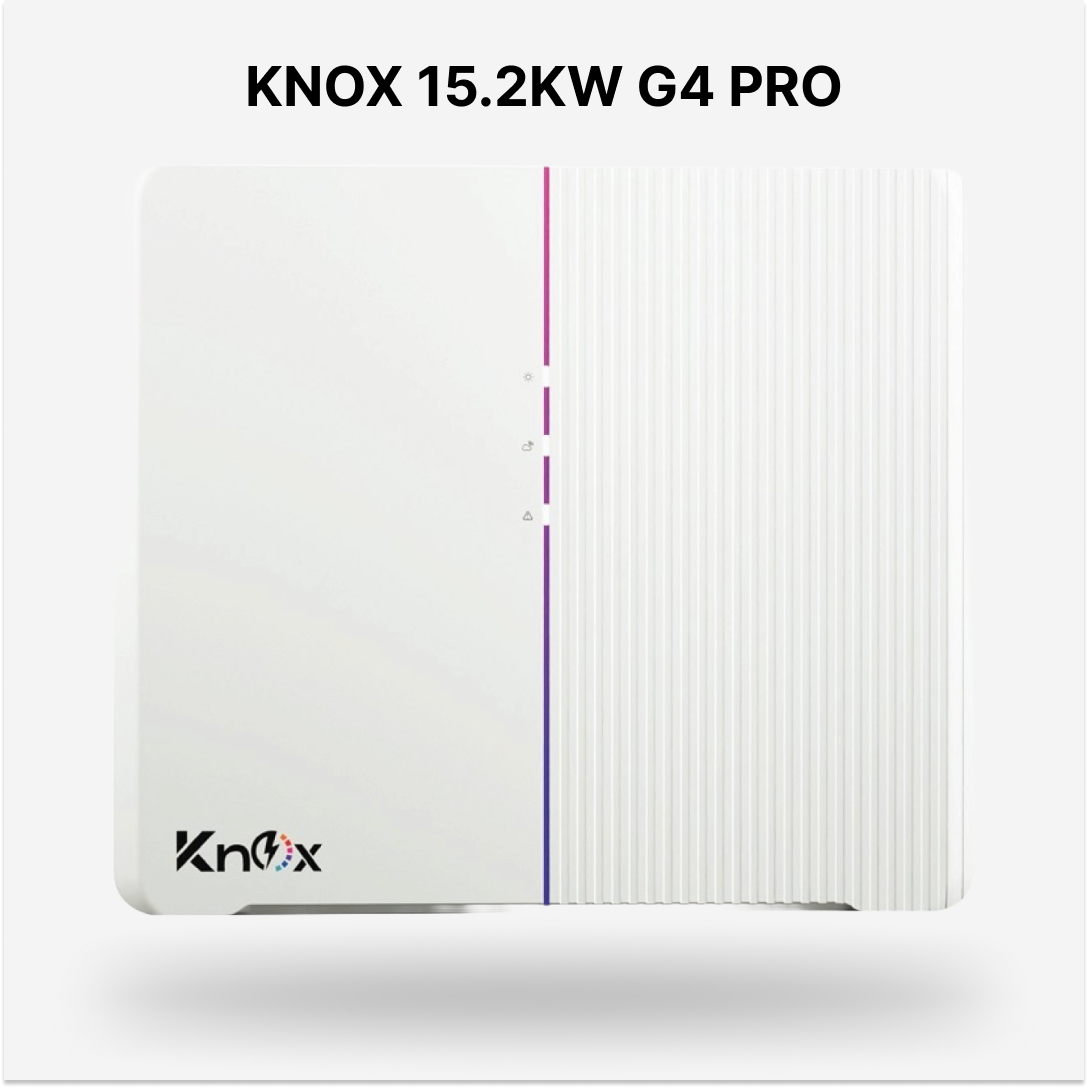

Knox 15.2K G4 Pro – Advanced 3-Phase Hybrid Inverter

The Knox 15.2K G4 Pro is a state-of-the-art hybrid inverter designed for high-performance solar applications. With a pure sine wave output, 6 MPPTs, and support for both on-grid and off-grid operations, it ensures flexible, stable, and intelligent energy management. Its built-in WiFi, GPRS capability, and parallel operation support make it a smart solution for future-ready solar systems.

Key Specifications (List Format)

• Model: Knox 15.2K G4 Pro

• Phase: 3-Phase

• Rated Power: 15.2kW

• Surge Power: 30.4kW (200%)

• PV Input Power: 22000W

• MPPT Trackers: 6

• MPPT Operating Voltage Range: 90~450VDC

• Max PV Input Voltage: 450VDC

• AC Voltage Regulation (Battery Mode): 220/380 VAC (±5% per phase)

• Frequency Range: 50/60Hz (Auto Sensing)

• Max AC Charging Current: 240A

• Max Solar Charging Current: 240A

• Max Charging Current: 240

• Operating Temperature: -10°C to 50°C

• Humidity: 5% to 95% RH (Non-condensing)

• Dimensions (W x H x D): 422 x 729 x 281 mm

• Net Weight: 43.5 kg
