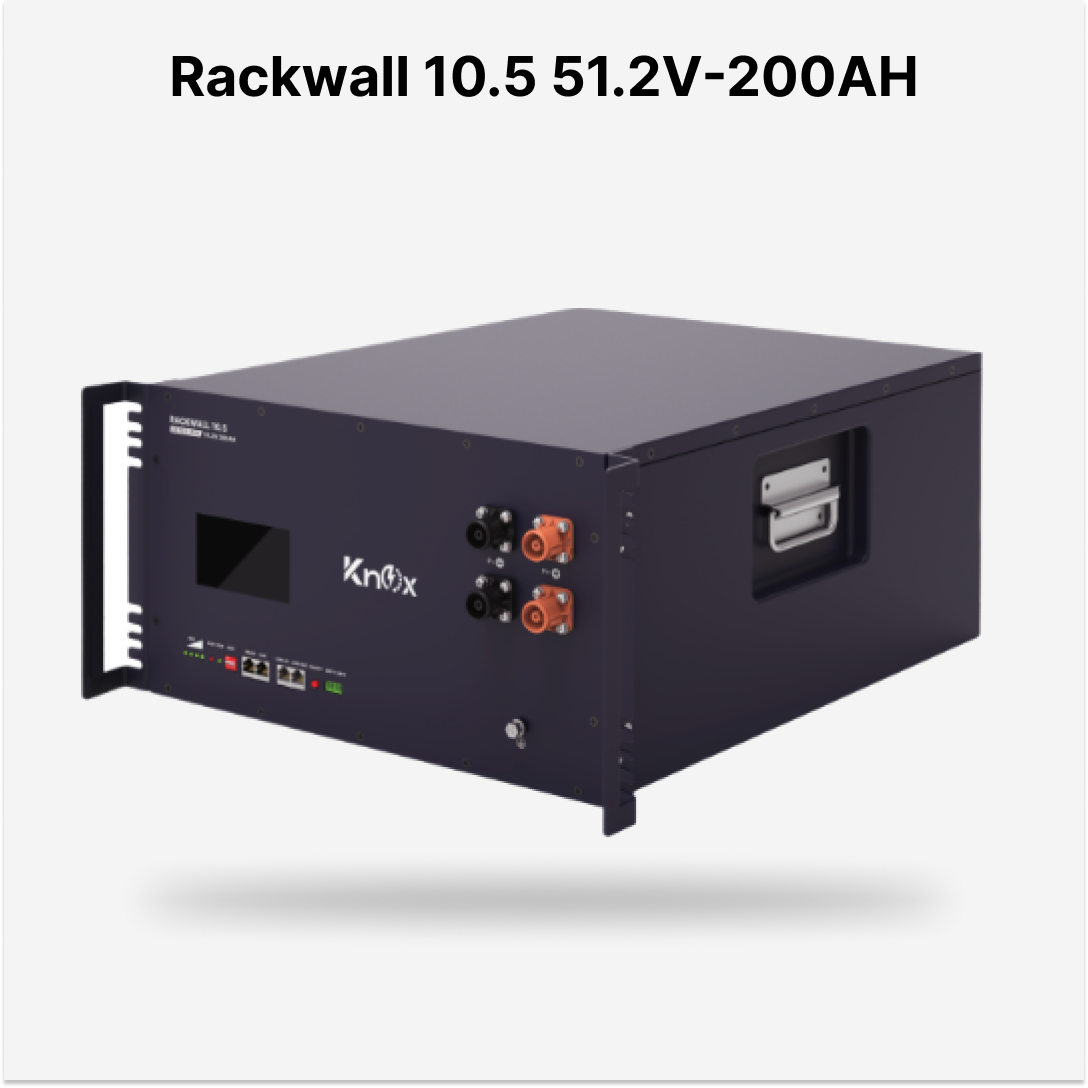

Knox Rackwall 10.5 51.2v 200AMP Lithium Battery

Download Product Datasheet

LIO 10.5-IP20 | 51.2V 200Ah Lithium-ion Battery

High-Capacity, Rack-Mount Battery for Energy Storage Systems

The LIO 10.5-IP20 is a robust, rack-mounted lithium-ion battery designed for advanced energy storage needs in residential and commercial solar systems. With a total capacity of 10.24kWh, this low-voltage battery uses long-life prismatic LiFePO₄ cells to ensure safety, scalability, and long-term performance.

Engineered with an intelligent Battery Management System (BMS), it supports independent protection for charging and discharging, seamless communication with leading inverter brands, and parallel expansion of up to 15 sets. Its standard 19” rack size and plug-and-play design make it simple to install and maintain, while its wide operating temperature range allows reliable operation even in harsh environments.

Key Features

• High Energy Storage: 10.24kWh total capacity (51.2V, 200Ah)

• Long Life: Over 6000 cycles (90% DoD @ 25°C); 10+ year calendar life

• Safe Chemistry: Prismatic LiFePO₄ cells with full protection suite (OVP, LVP, OCP, OTP, LTP, short-circuit)

• Smart BMS: Real-time monitoring, alarms, SOC display, and PC software support

• Flexible Installation: Standard 19” rack-mount design with quick-lock terminals

• Parallel Support: Expandable up to 15 batteries (not for series connection)

• User-Friendly Interface: 4.3" touch LCD screen for status, inverter protocol change, and diagnostics

• Wide Operating Range: Charge 055°C | Discharge -2055°C | Humidity 0–95% RH (non-condensing)

• Certifications:

  • Cell: IEC62619, UL1973, UL9540A, RoHS

  • Battery: UN38.3, CE, MSDS

• Communication Protocols: RS485 & CAN (for inverter), LINK-IN / LINK-OUT (for battery interconnection)

Technical Specifications
