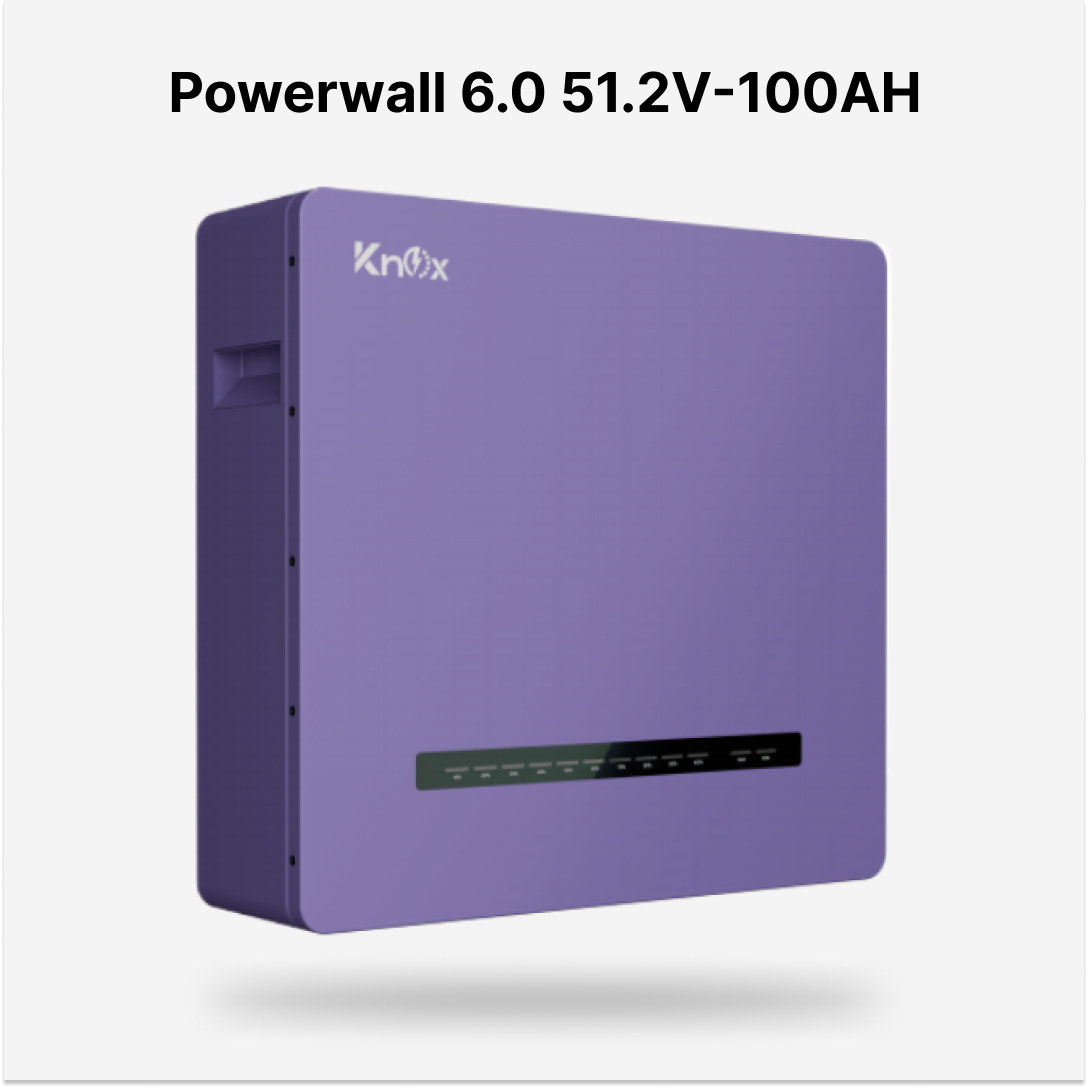

Knox Powerwall 6.0 51.2V-100AMP Lithium Battery

Download Product Datasheet

Powerwall 6.0 | LIO 5.20-IP20 Lithium-ion Battery

51.2V 100Ah | 5.12kWh | LiFePO₄ | Wall-Mounted Energy Storage

The LIO 5.20-IP20 is a high-performance lithium-ion battery designed for residential and small commercial energy storage systems. With A-grade prismatic LiFePO₄ cells and a robust design, it ensures long life, superior safety, and consistent output. This wall-mounted battery offers 5.12kWh of energy, supports up to 8 units in parallel, and is ideal for on-grid, off-grid, and hybrid setups.

A smart BMS with multiple protections, LCD display, and universal communication protocols (RS485/RS232/CAN) makes integration with various inverters smooth and reliable. It's engineered for easy installation, silent operation, and dependable energy performance across a wide range of environmental conditions.

Key Features

• Energy Capacity: 5.12kWh (51.2V, 100Ah)

• Cell Chemistry: A-grade Prismatic LiFePO₄

• Cycle Life: Over 6000 cycles at 80% DoD (25°C, 0.5C)

• Charge/Discharge Current:

  • Max: 100A continuous

  • Peak: 120A (2 sec)

• Battery Pack: 16S1P configuration

• Display: Low-power LED screen with long-range visibility

• Smart BMS Protections:
  Overcharge, over-discharge, over/low temperature, over current, and short-circuit

• Cell Balancing Function: Integrated

• Metal Housing: Improves heat dissipation and system safety

• Parallel Connection: Supports up to 8 packs

Technical Specifications
